AF series motor are axisflying highest quality line with Premium performance, the highest standard.

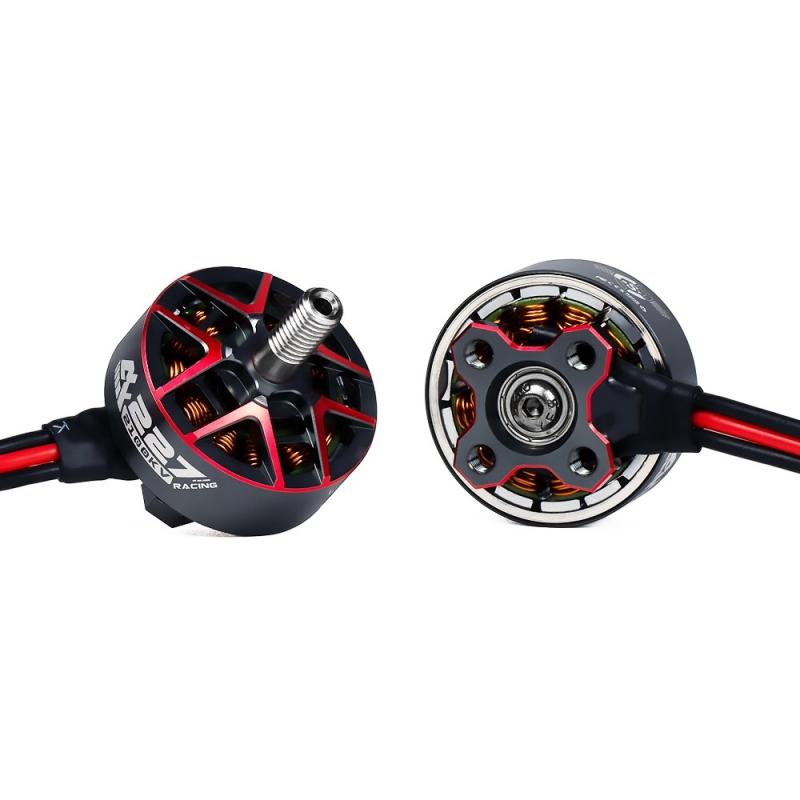

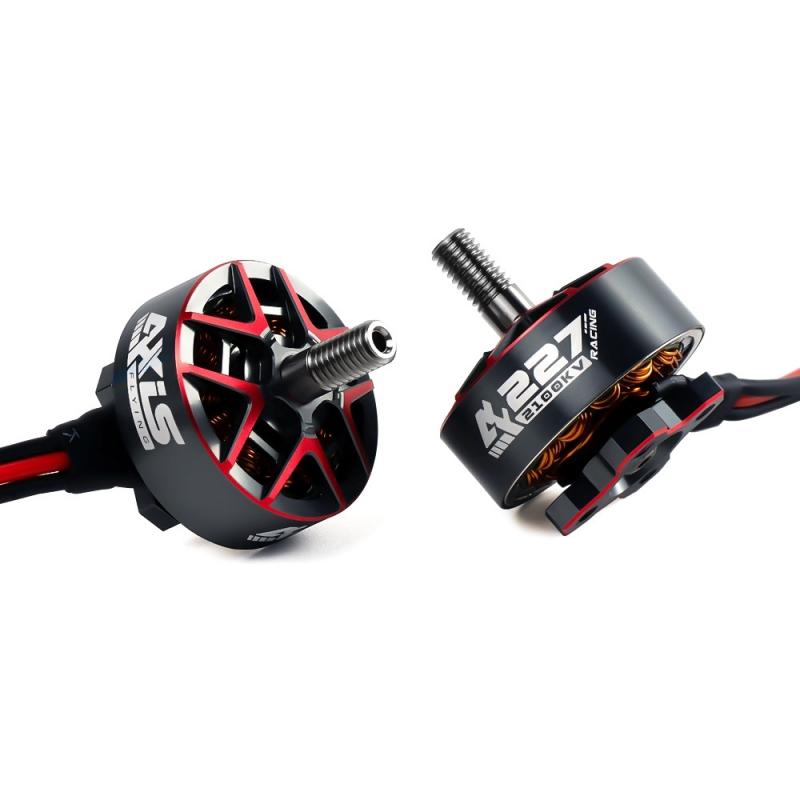

AF227 motors released with 2 KVs, 2100 and 1960 for 6s, 2100kv is main for FPV racing, 1960KV is the most popular KV for freestyle with silky smooth and torquey low throttle with an sabng curve.
Bearing Shield Technology
An IP53 rating dustproof and waterproof bearing placement design.
BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng.
Increased thrust effciency and say goodbye to crush motor bearings
Specification
1960KV is for Sbang style freestyle @6S
2010KV is for racing @6S

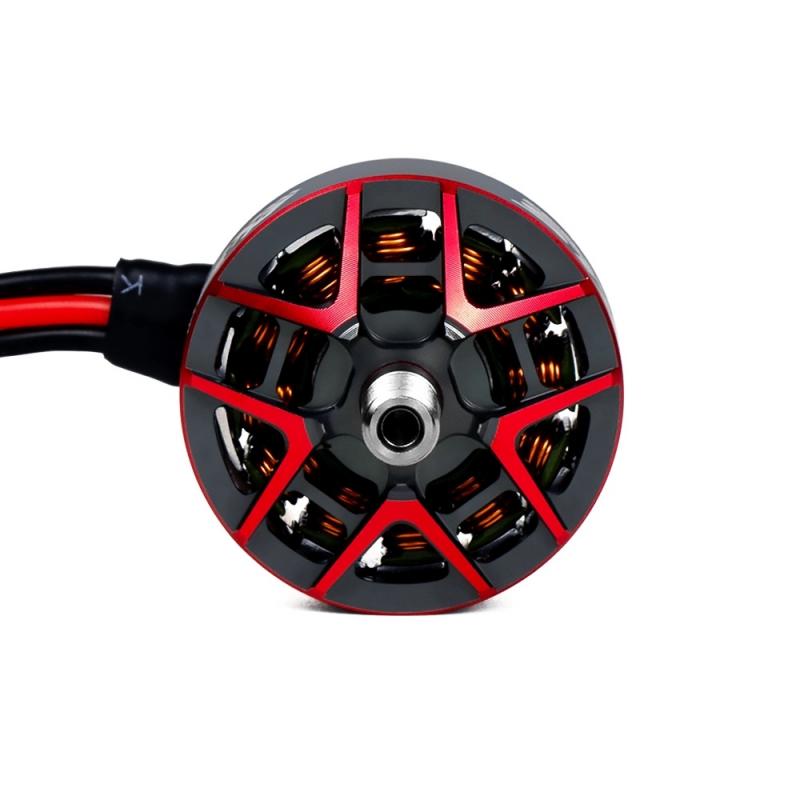

Configuration: 12N14P / N52H arc magnet
Motor stator size: 2207
Motor mounting hole size: 4*M3 (Φ16mm)
Motor cables: AWG 20#, 150MM
Motor dimensions (Dia *Len): Φ27*33MM / M5 shaft
Motor weight (excluding 150MM cables) : 30g
The motor is very powerful that can get over 1.9KG and most current is about 45A
