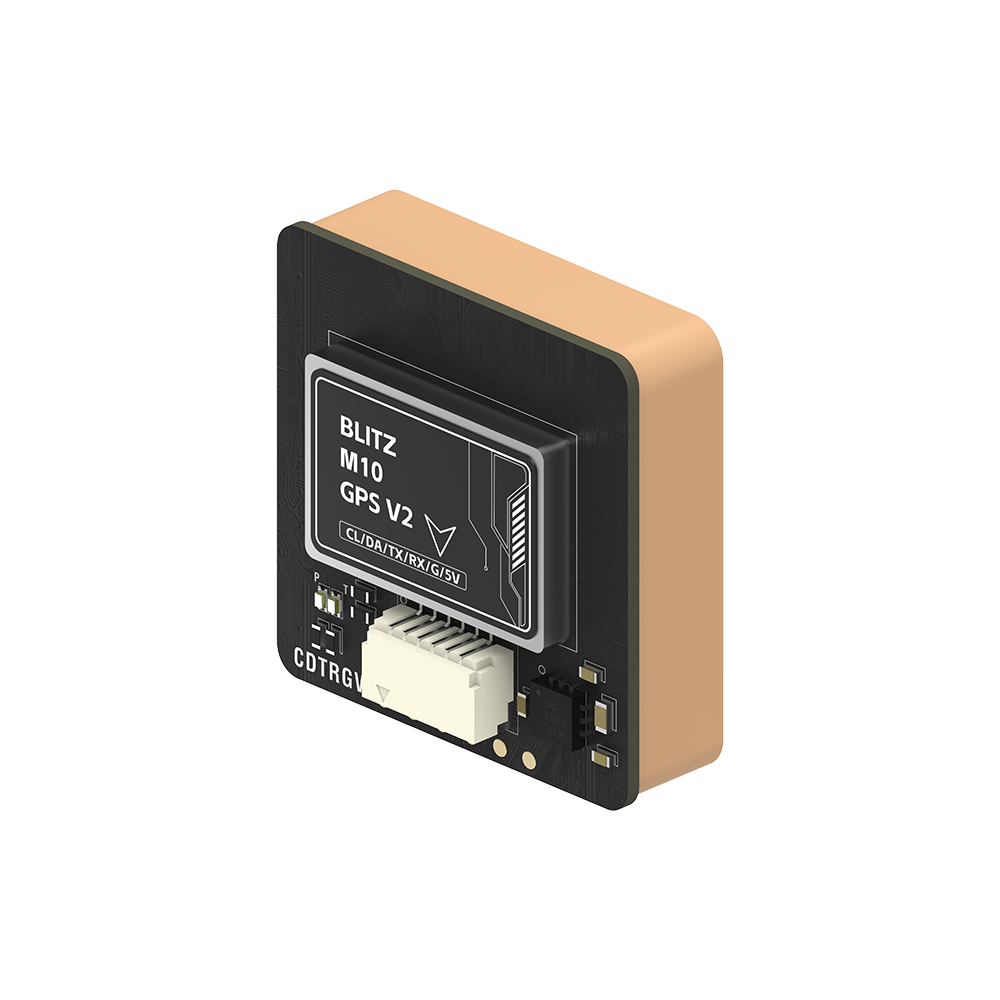

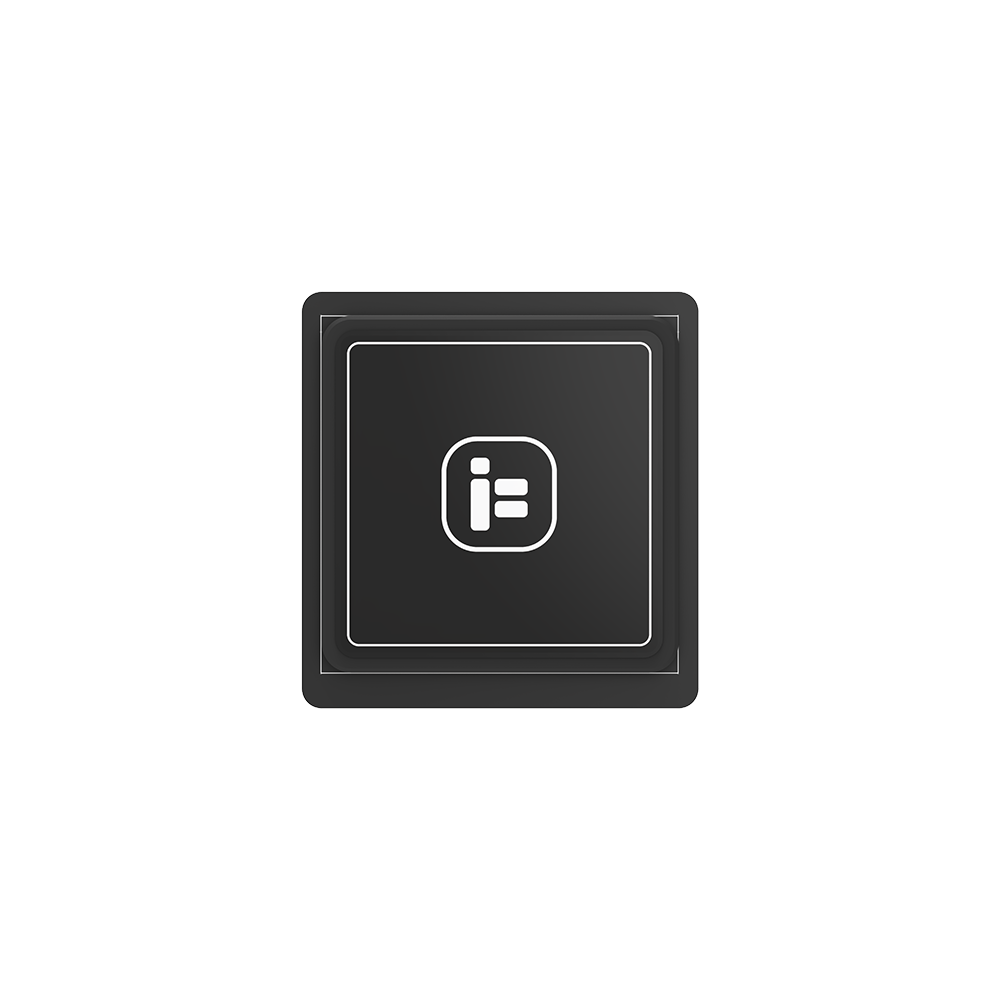

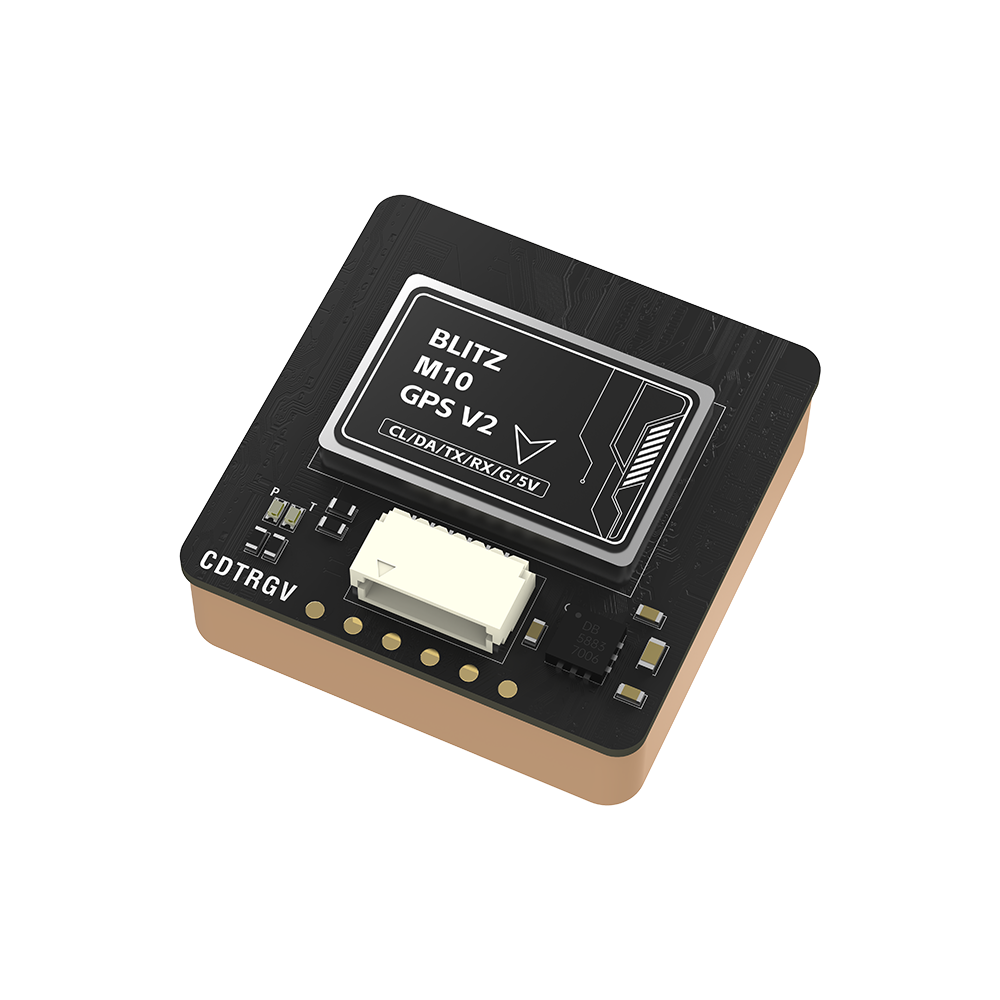

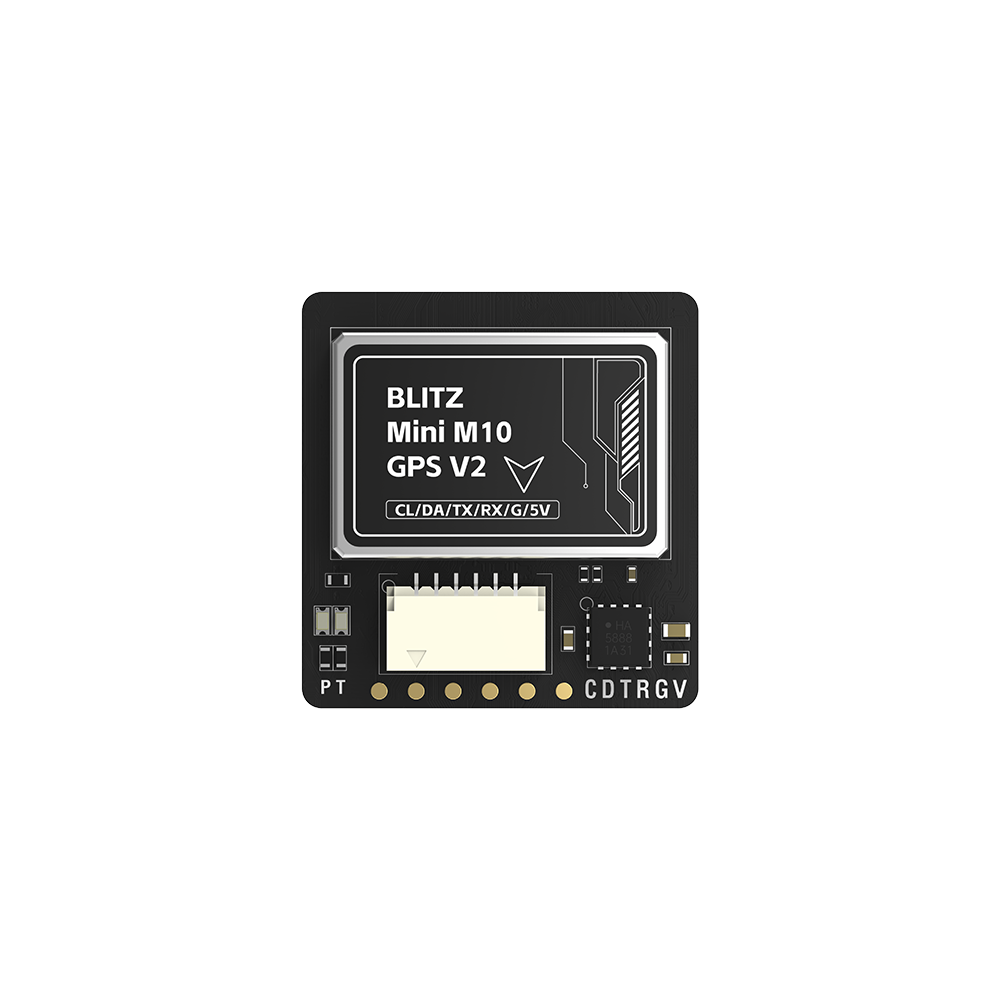

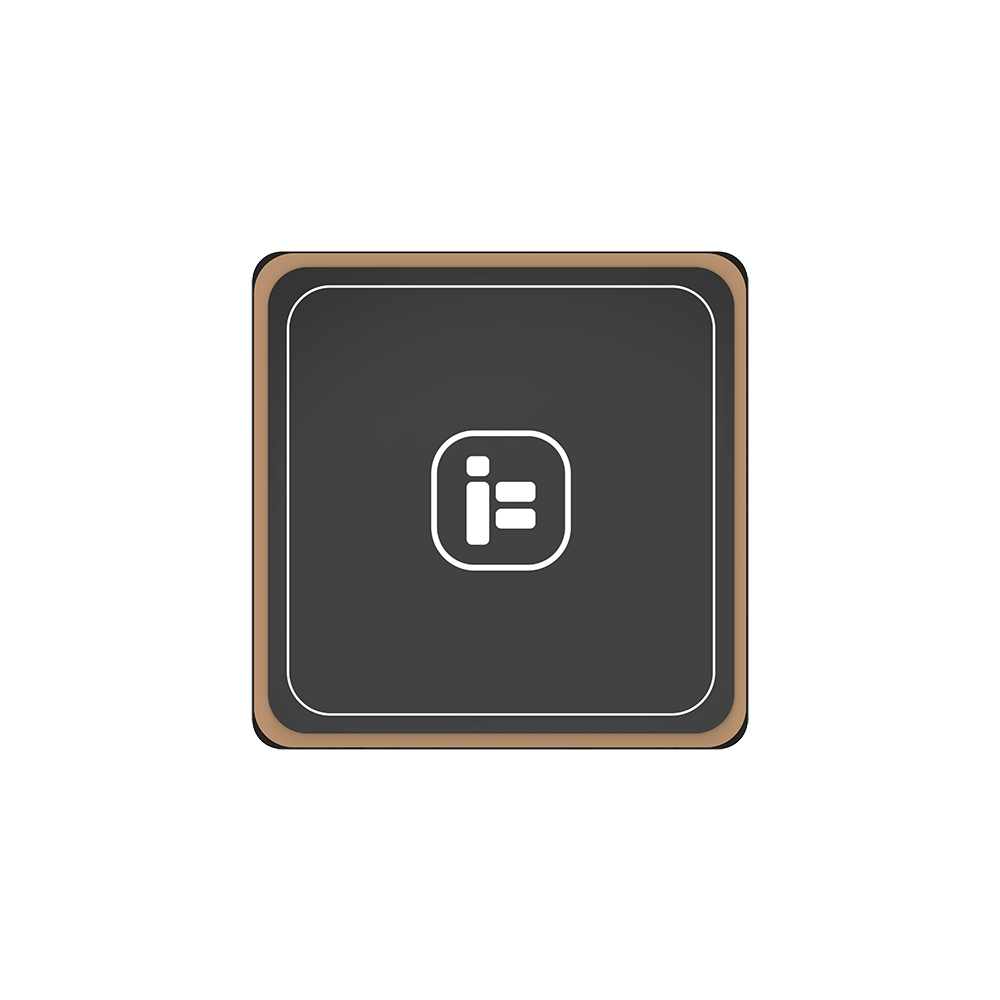

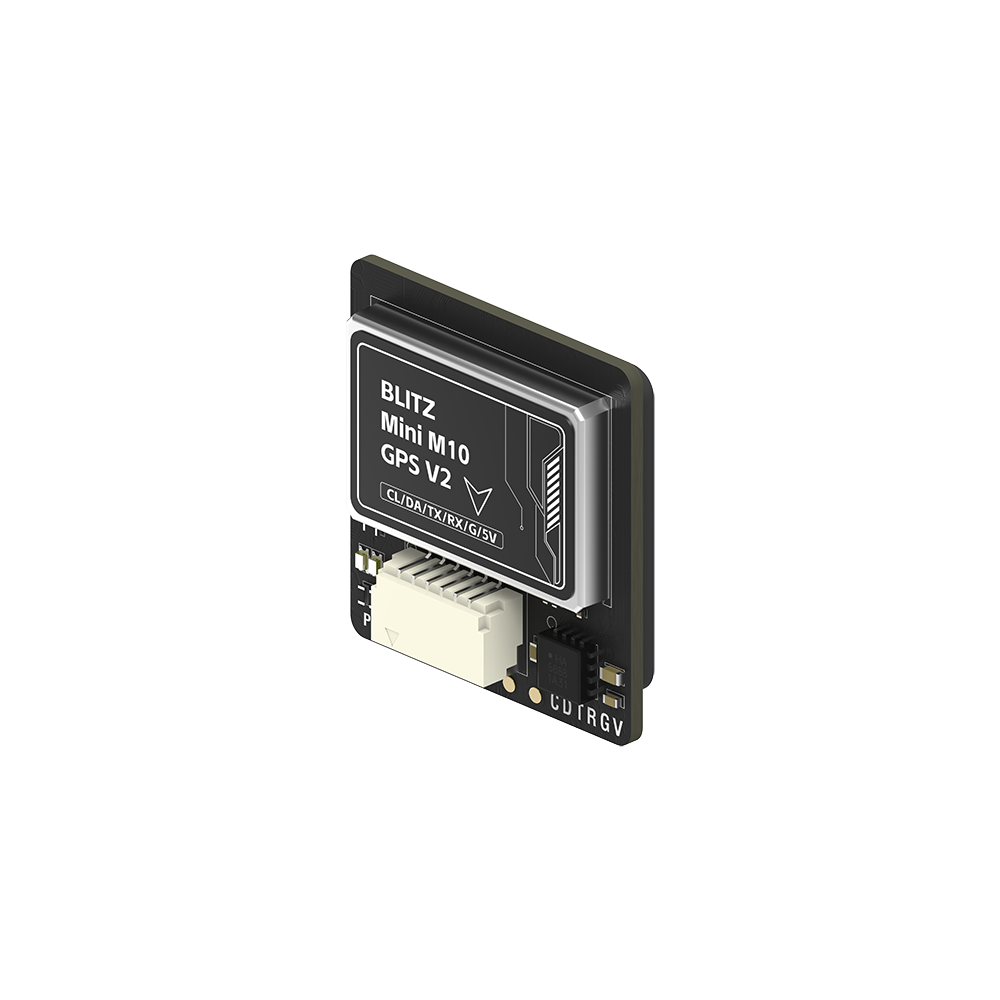

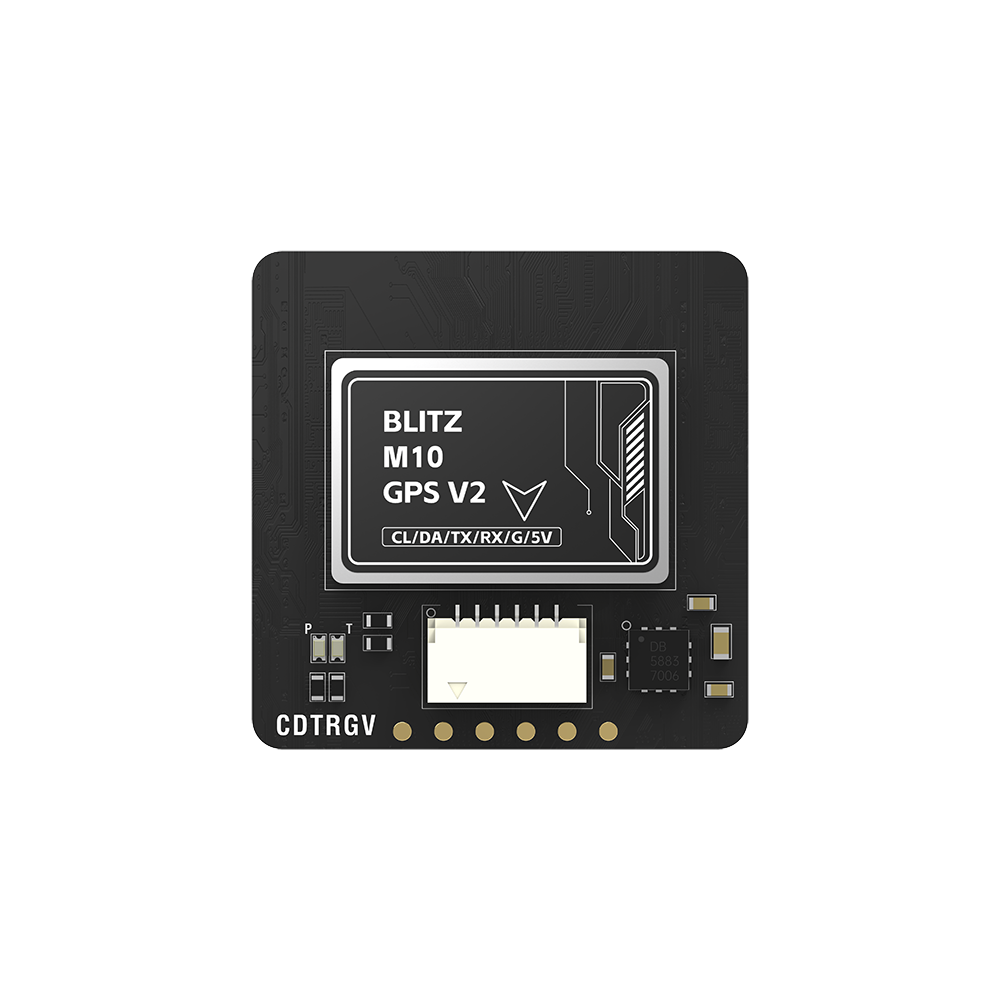

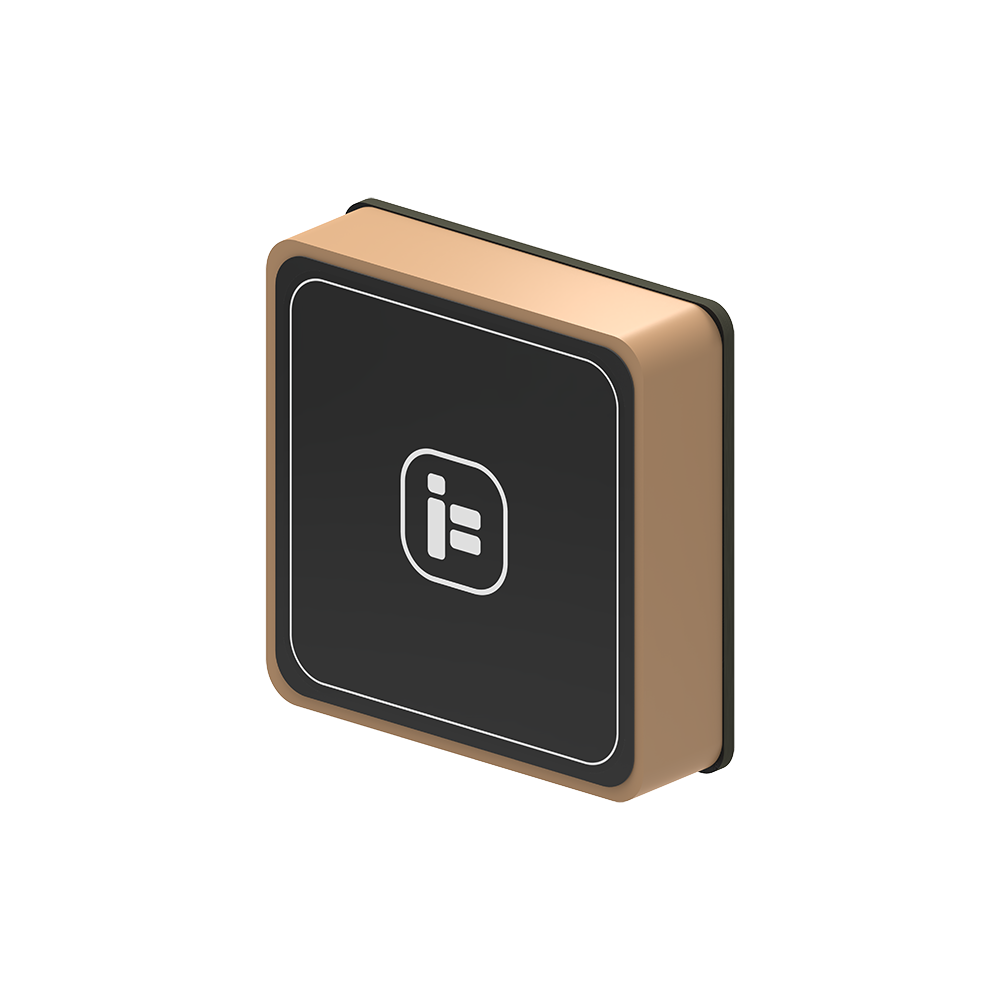

BLITZ M10 GPS V2 Mini (20mm*20mm)

CHF 44.90

Am Lager, kann sofort verschickt werden.

Kategorie:

Beschreibung

Description

The newly upgraded BLITZ M10 GPS V2 has arrived, offering faster and more stable satellite search. This advancement in technology provides users with a more reliable and efficient GPS experience.

Features

  • UBLOX M10 chip, low power consumption, strong signal
  • Compass module QMC5883L integrated
  • Built-in farad capacitor for faster hot start
  • High-precision positioning
  • Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
  • 10 Hz Refresh rate
  • Built-in Flash

Specifications

  • Compass module: QMC5883L
  • Baud Rate: 9600-460800 / 4800bps-921600bps (Default – 115200bps)
  • Sensitivity: Tracking: -167dBm
  • Cold start: 27s
  • Hot start: 1s
  • Maximum height: 80000m
  • Maximum speed: 500 m/s
  • Speed accuracy: 0.05 m/s
  • Maximum acceleration: ≦ 4G
  • Refresh Rate: 10 Hz
  • GPS patch antenna size: 18.2 x 18.2 x 4 mm / 25 x 25 x 6 mm
  • Total dimensions: 20 x 21 x 8 mm / 25 x 25 x 11 mm
  • Weight: 8g / 16 g
  • Input Voltage: 3.3-5.5 V
  • GPS pin definition: RX/TX UART
  • Compass pin definition: SDA/SLA
  • GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Compatibility

20*21*8 (Mini Version) Compatibility:

  • Single-hole TPU mount:
    • Chimera7 Pro v2
    • iH3 O3
    • Nazgul Evoque F4/F5/F6
    • XL10 v6
    • BOB57 HD
    • Nazgul XL5/DC5 ECO V1.1
  • Dual hole TPU mount:
    • Nazgul5 V3
    • Nazgul XL5/DC5 ECO V1
    • Taurus X8 Pro/V3
    • ProTek60 Pro
  • GPS TPU mount is not required:
    • Helion 10

25*25*6 Version Compatibility:

  • Centurion X8 Frame Kit
  • Taurus X8 Max

Packing List

  • 1 x BLITZ M10 GPS V2
  • 1 x Cable set
