Description
The next generation of ESCs from iFlight has arrived. Currently being used in their BNF quads such as the Nazgul F5/F6 Series BNF.
These new 55 Amp BLHeli 32 BLITZ Mini 4-in-1 ESCs can handle even the most amp-hungry motors.
Changelog
- Jan. 28, 2023: BLITZ Mini E55 4-IN-1 ESC V1.3 – Metal Mosfets.
- June 27, 2024: Since BLheli32 Configuration is closed due to regulatory issues,
if you need to adjust the parameters of this ESC, please download „BLHeliSuite32Test“ in the
„Download“ column of this page.
Specifications

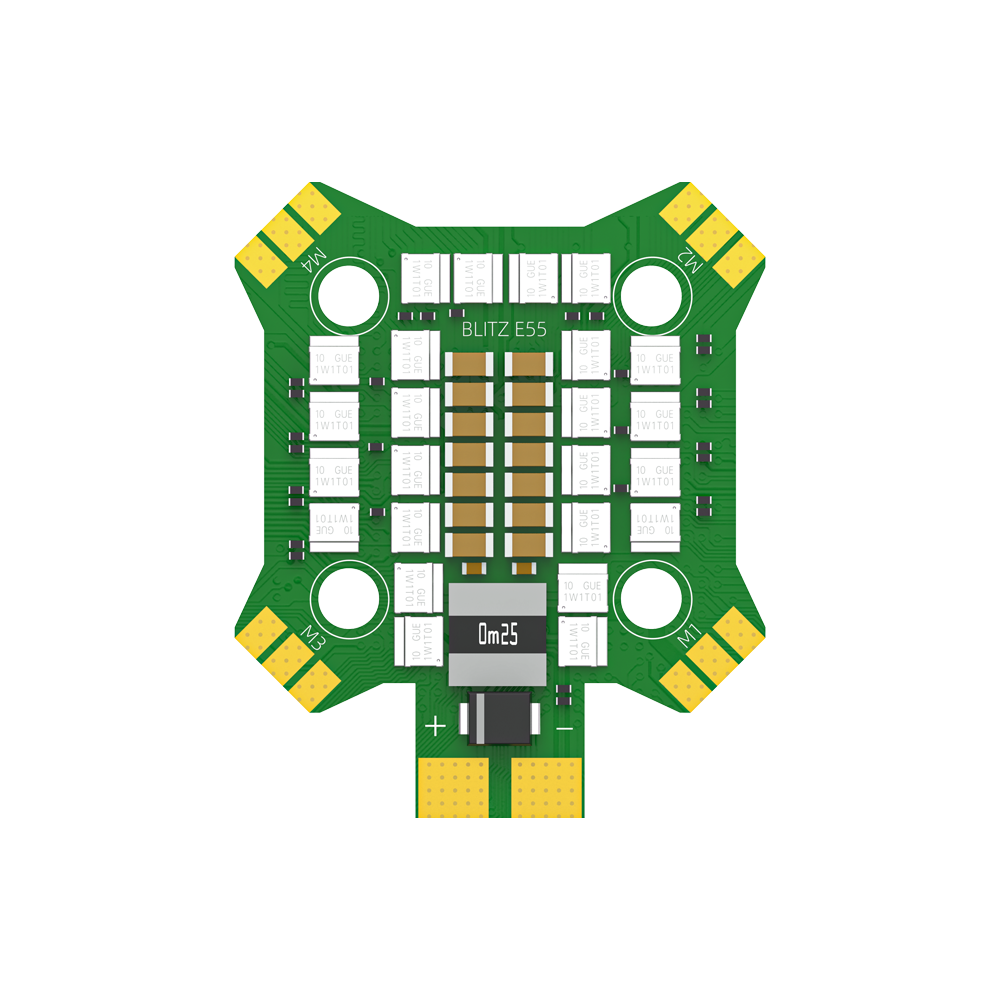

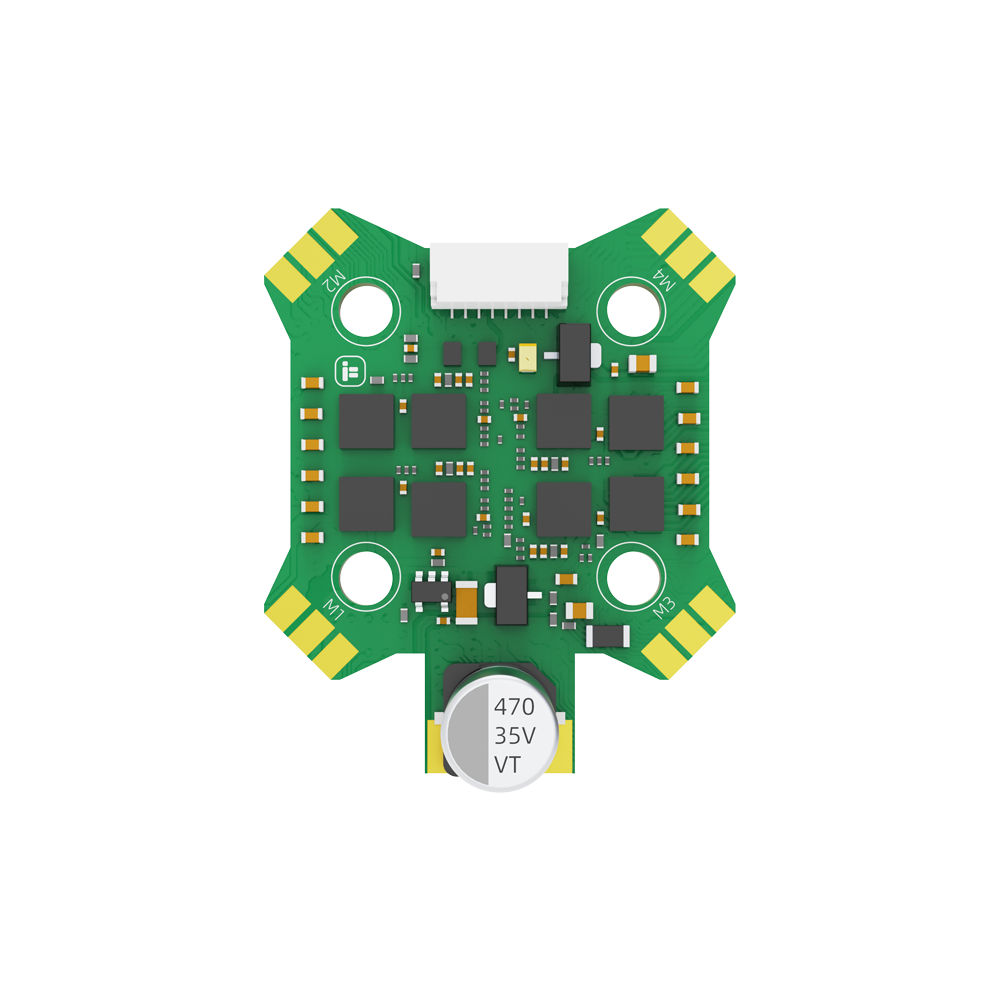

- Product Name: BLITZ Mini E55 4-IN-1 ESC
- Input Voltage: 2-6S
- Max. Continuous Current: 55A
- Max. Burst Current: 65A
- MCU: G071
- BEC: No
- Firmware: BLHeli32
- Current Sensor: Yes
- Telemetry: Supported
- Target: IFLIGHT_BLITZ_G071_01 32.9
- Mounting Dimensions: 20 x 20 mm/Φ4mm
- Dimensions: 35x42mm
- Weight: 11.3g
- Protocol: Supports DShot DShot150/300/600/MultiShot/OneShot etc.

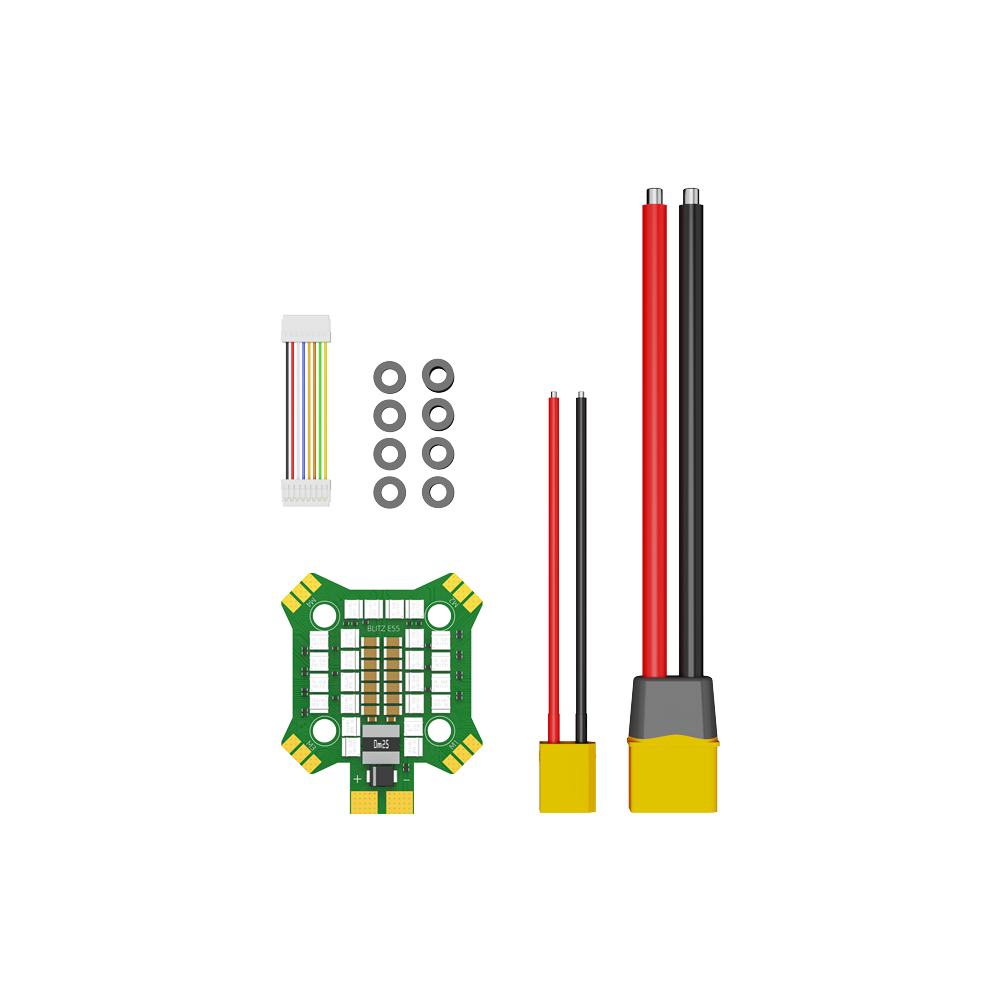

Packing List
- 1 x BLITZ Mini E55 4-IN-1 2-6S ESC
- 1 x Power cables & ESC signal wires
