Description

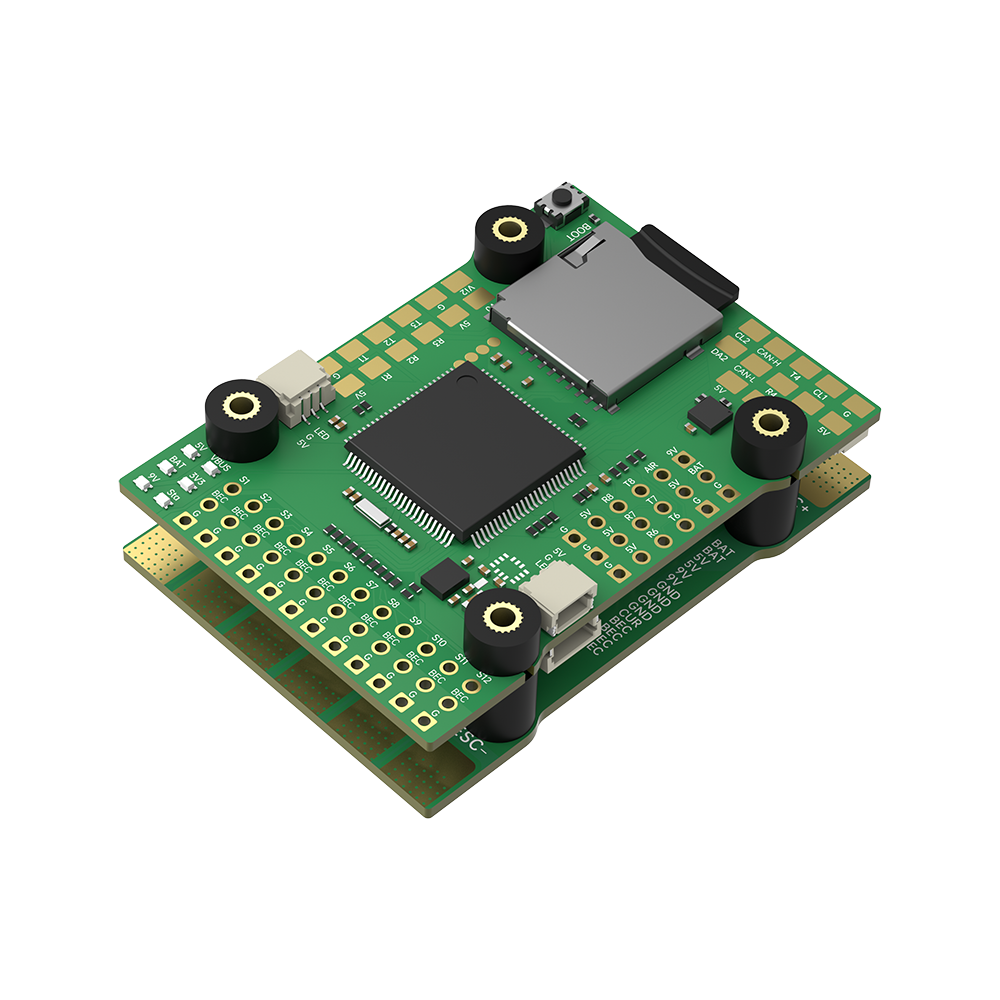

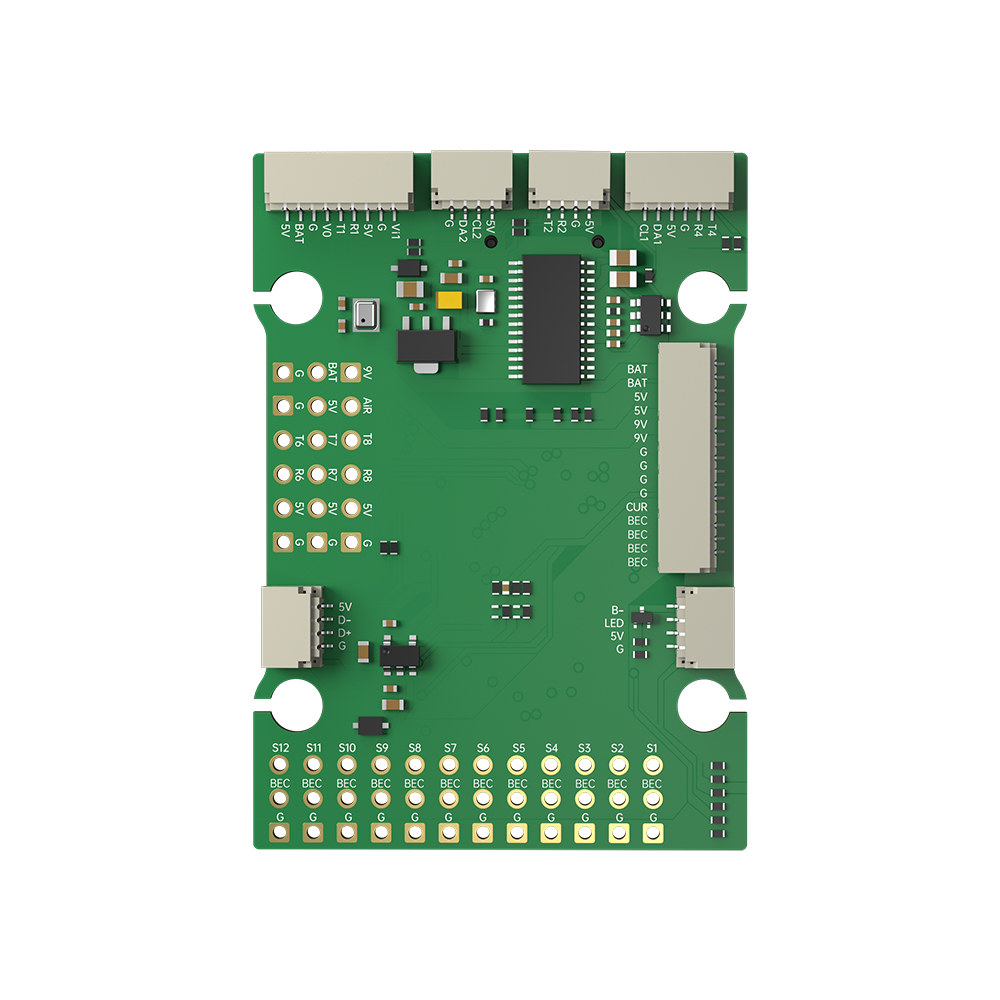

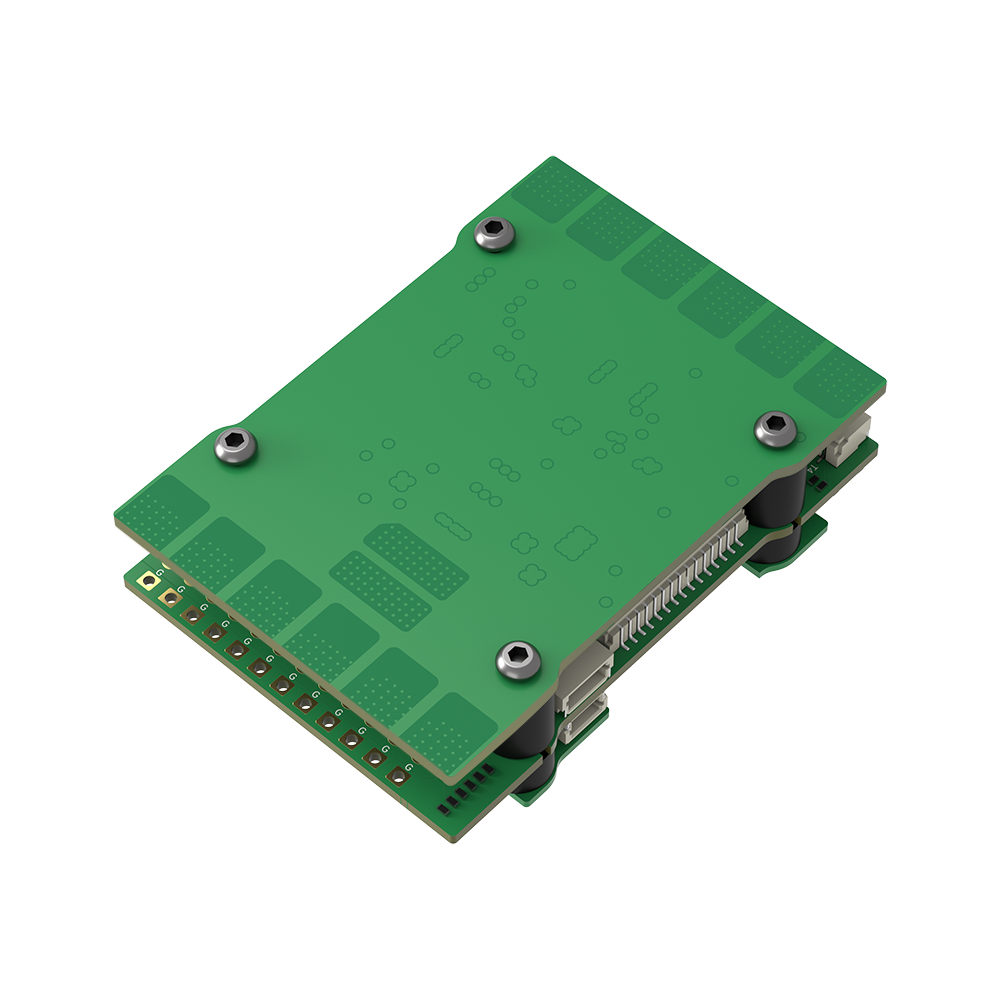

Our high-quality flight controller, designed specifically for Fixed Wing UAV enthusiasts, is compatible with Betaflight, INAV, and Ardupilot.
This controller is tailored to meet the needs of hobbyists who are passionate about model aviation, providing a reliable and efficient solution for their aircraft.
With advanced features and compatibility with popular software platforms, our flight controller offers a superior flying experience for enthusiasts looking to take their Fixed Wing UAVs to the next level.

Features

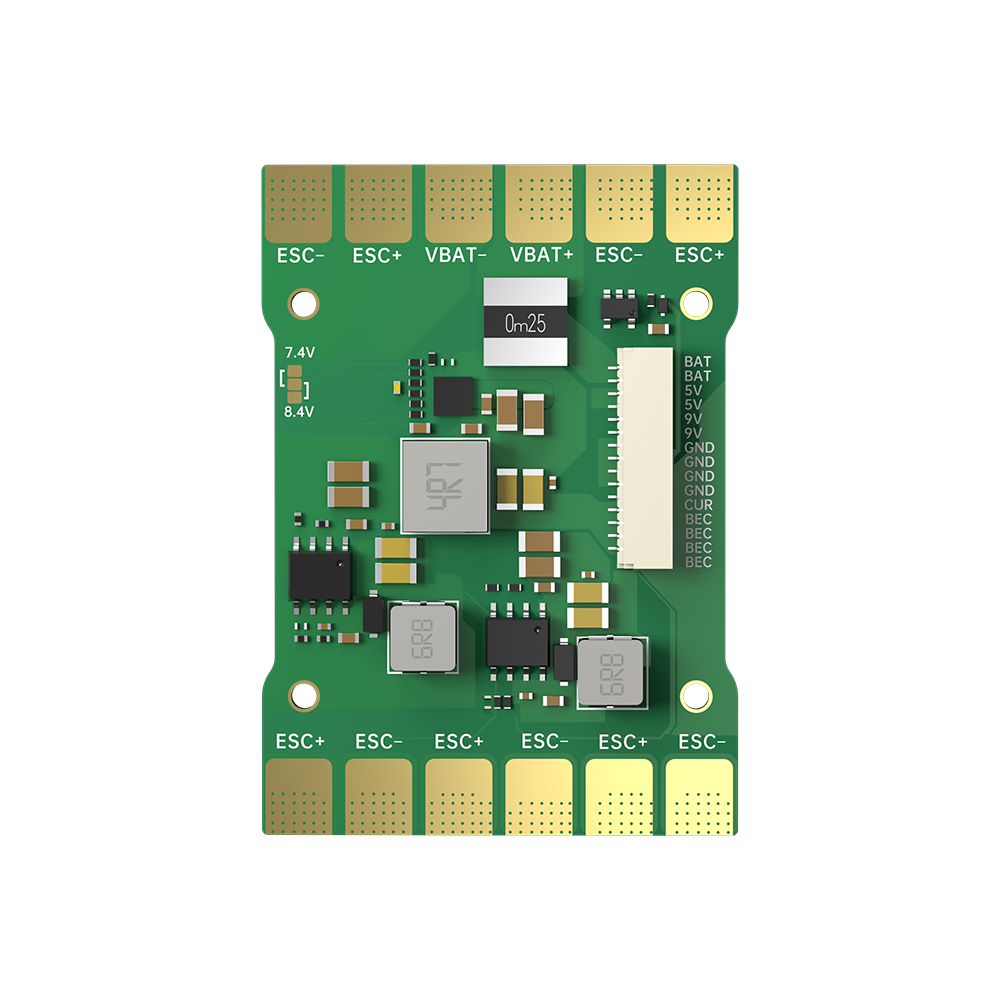

• Up to 5 groups of ESC power supply soldering pads.
• Equipped with dual analog camera input function, which can be switched by remote control.
• Independent 6A servo power supply BEC, providing powerful power protection for servos, compatible with servos of different voltages.
• Utilizes STM32H743 main MCU, offering powerful processing performance and feature support.
• Onboard SD card slot, providing large capacity storage space for data recording.
• Soldering pad reserved design.
• Onboard current meter, real-time monitoring of flight current.
• Supports external airspeed sensor for more accurate data.

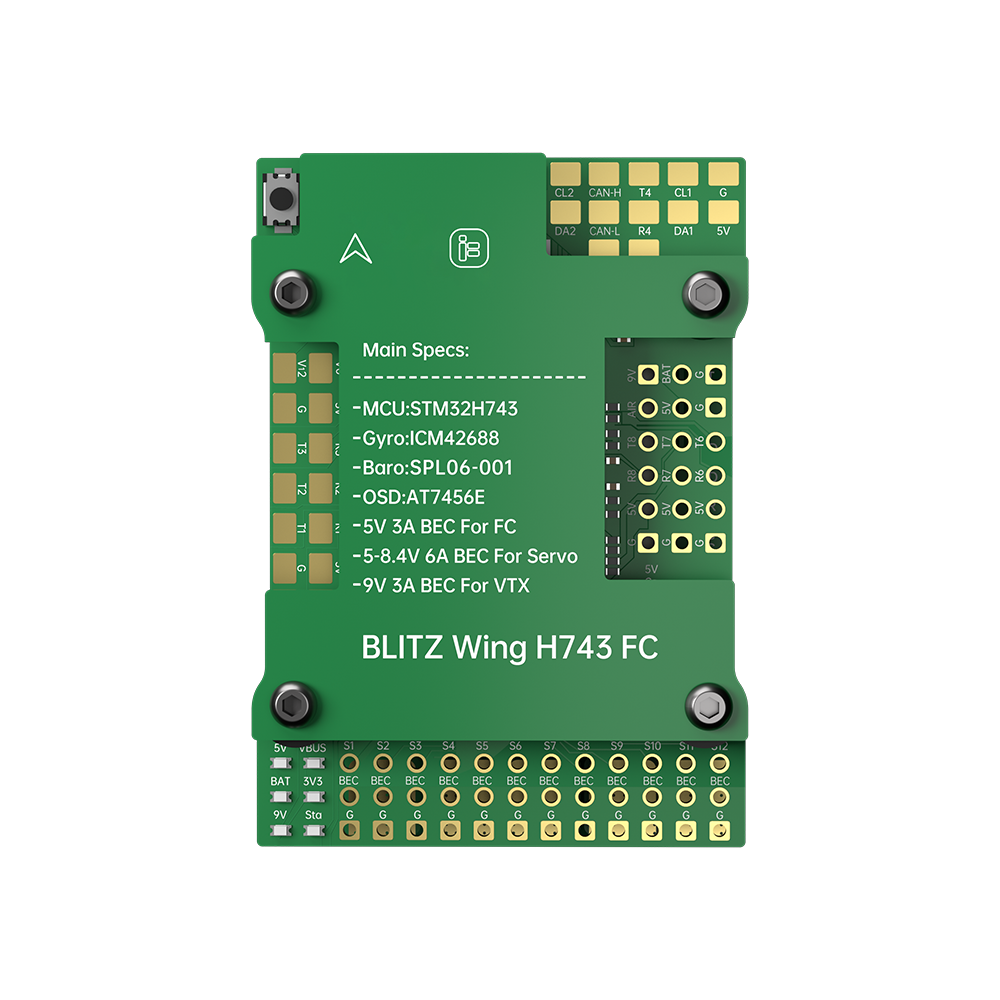

FC Specifications

Specification	Details
MCU	STM32H743
Gyro	ICM42688P
Baro	DPS310
OSD	AT7456E
BlackBox	MicroSD card
UARTS	8
I2C serial	SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported	Yes
WS2812ledStrip	Yes
Beeper pad	Yes
Switchable dual camera inputs	Yes
Switchable 5V/7.4V/8.4V outputs	Yes
7-36V DC IN (2-8S)	Yes

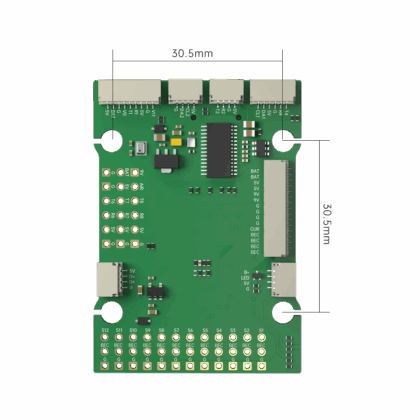

Mount pattern	30.5*30.5mm/φ4
Dimensions	36.9*52mm
Weight	35g
BF Firmware target	IFLIGHT_BLITZ_Wing_H743
INAV Firmware	IFLIGHT_BLITZ_Wing_H743
Ardupilot Firmware	BlitzWingH743
BEC	5V 2.5A / 9V 2.5A / 5-8.4V 6A

Wiring Suggestion

• UART1 for VTX HD/Analog
• UART2 for Receiver
• UART4 for GPS
• UART2, UART5, UART6, UART7 for free
• 5V 3A BEC for FC
• 9V 3A BEC for VTX
• 5-8.4V 6A BEC for Servo

Packing List

• 1 x BLITZ Wing H743 Flight Controller
• 1 x silicon grommets
