INSTRUCTION
Power-on state
- OUT1/OUT2 can be charged simultaneously
- Input : USB-5V/2A
- Output : 4.35V/1A
- The red light indicates charging, and the green light indicates full charged
Power-off state
- OUT1 can be used as battery tester while OUT2 does not possess any function
SPECIFICATIONS

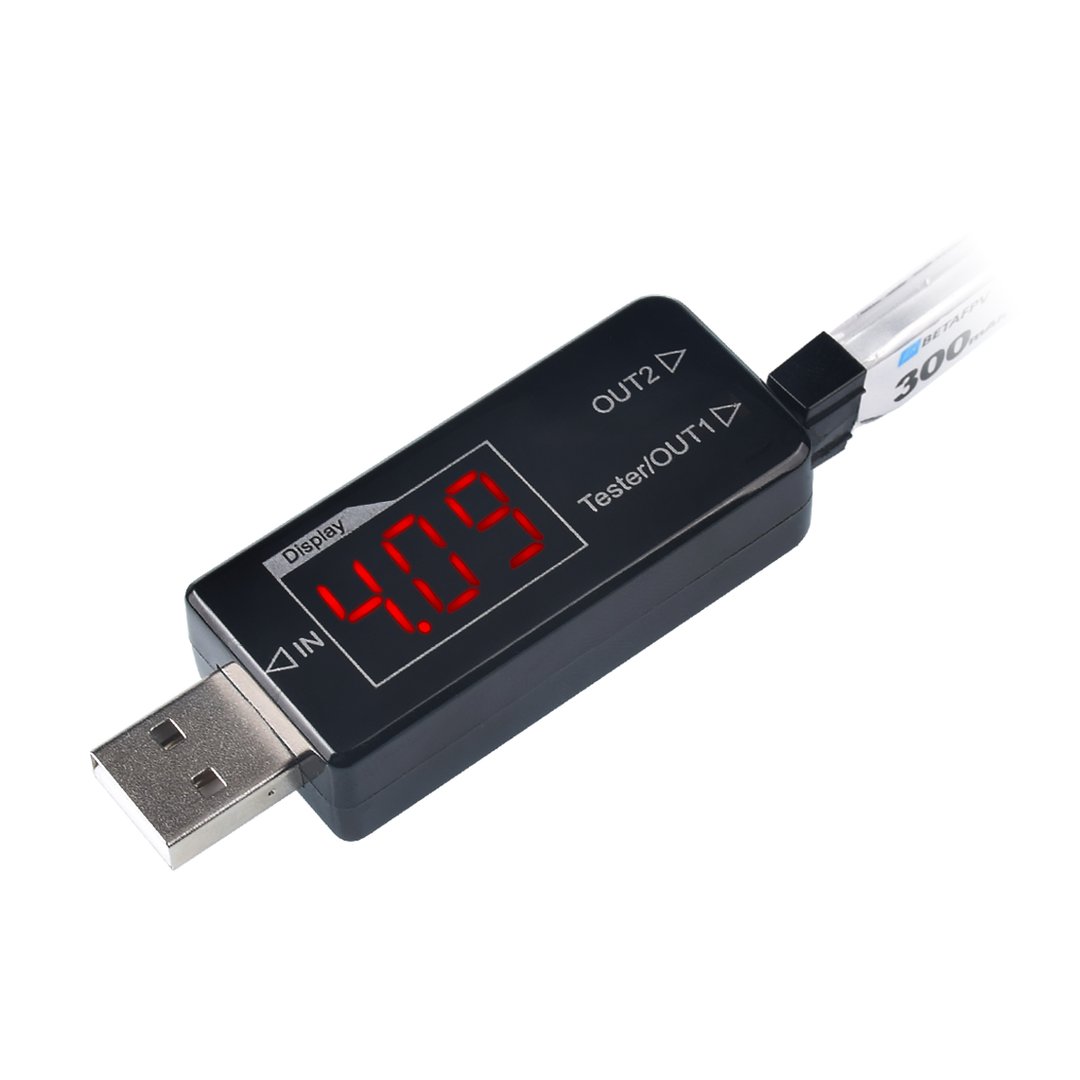

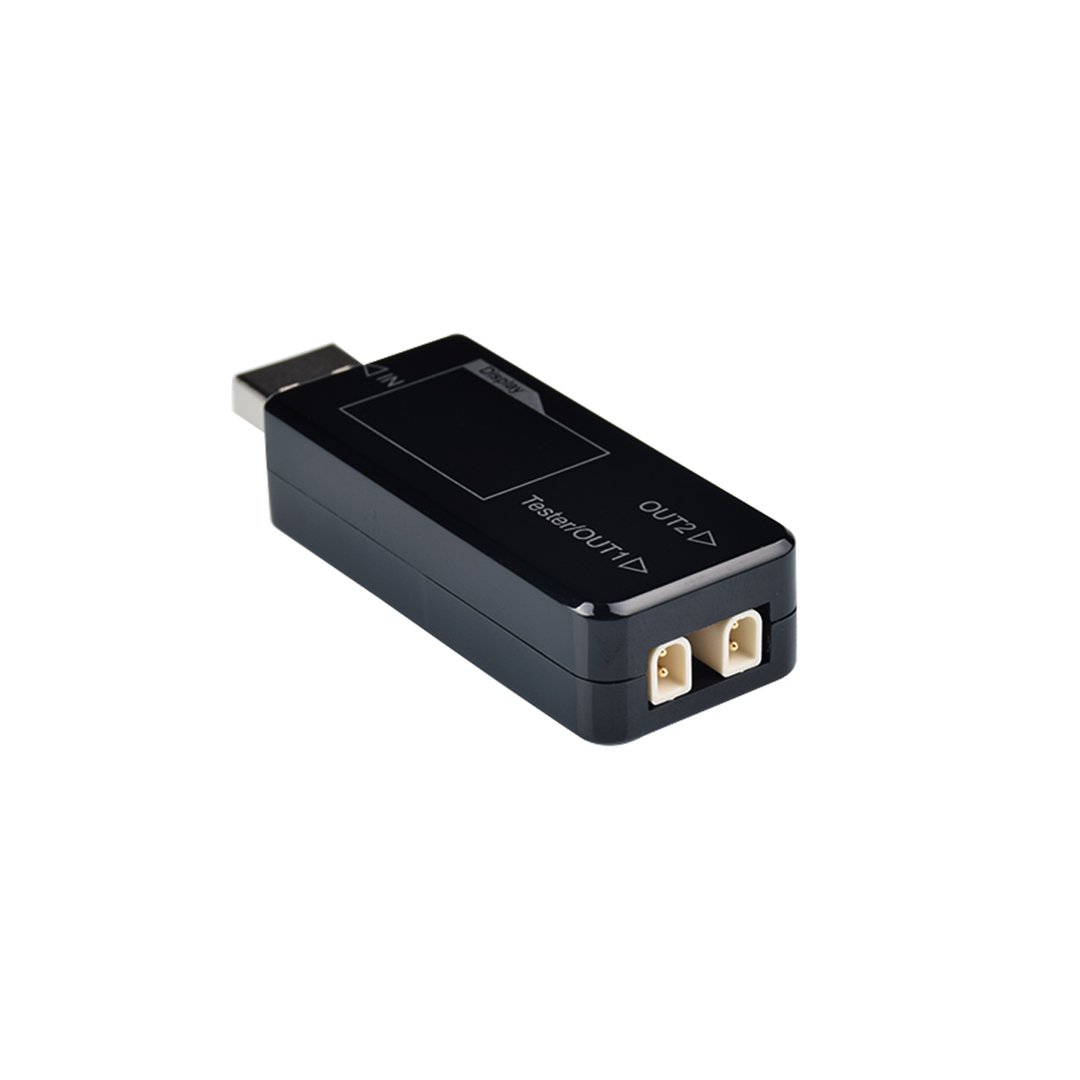

- Model: BT2.0 1S Battery Voltage Checker
- Plugs: BT2.0
- Voltage: Works with regular and HV battery packs
- Voltage cut off: DC 2.45-4.70V
- Voltage range: DC 2.50-4.70V(1S)
- LCD: Red
- Weight: 15.35g
- Dimensions: 66.3*23.6*14.4mm
- Working tem: -20~75℃
- Storage tem: -25~85℃
