Description

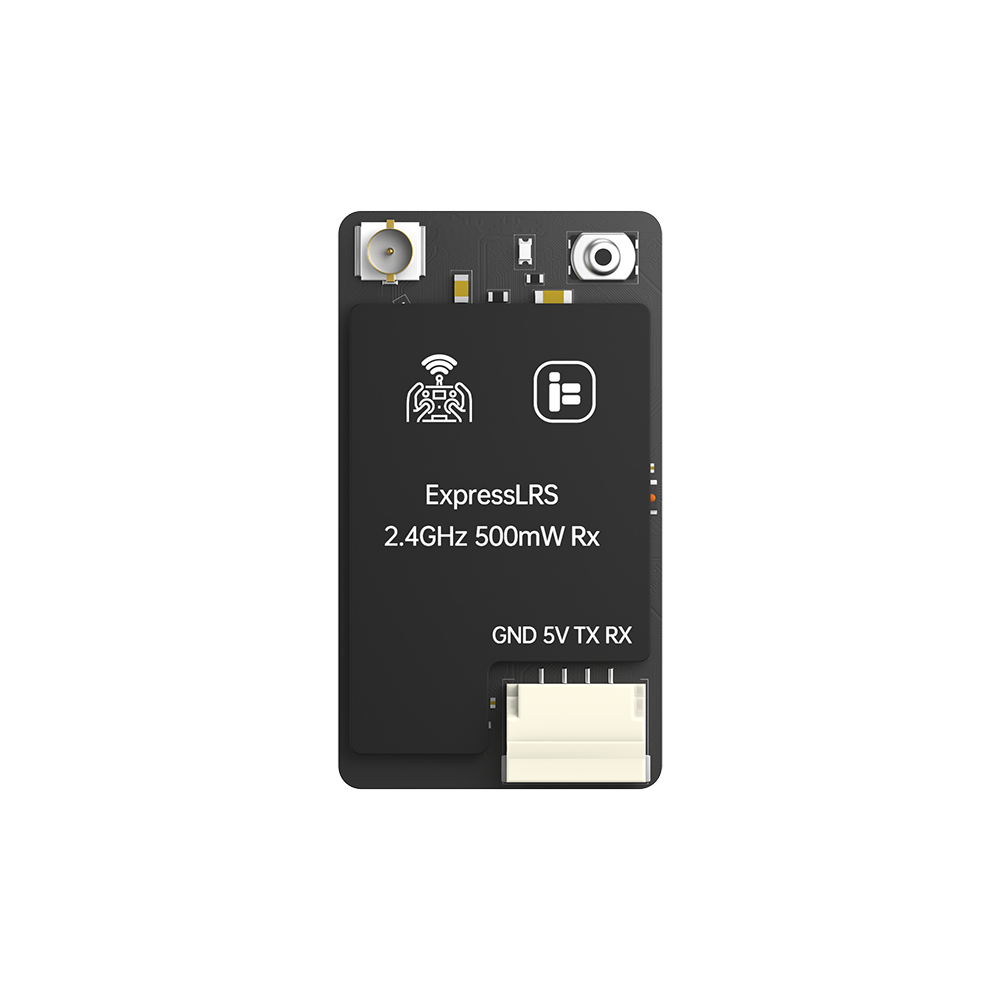

A new version of the iFlight ELRS Receiver is available. It incorporates a temperature-compensated crystal oscillator to prevent frequency shifts caused by temperature variations, with telemetry power reaching up to 500mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.
Features
- Single-sided electronic components, saving assembly space
- Aluminum heatsink plate to protect electronic components and enhance anti-interference capability
- Newly upgraded Temperature Compensated Crystal Oscillator, lower packet loss, high frequency stability
- Pre-soldered SH1.0 connector (Plug & Play for easy installation with iFlight FCs)
- Up to 500mW telemetry power, resulting in stronger telemetry signals and significantly reducing instances of telemetry loss
Performance and Compatibility
Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
Flash the latest firmware and follow the ELRS Community for updates, tutorials, or contributions.
Use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved the market’s best crystal frequency stability at a very low frequency deviation. For further information, please check out this article:
Crystal Oscillator (XO) Frequency Error
Band Options
The 900MHz as well as 2400MHz bands offer outstanding performance and long-range capabilities. If you’re unsure which to choose, please check out the official ELRS Long Range Competition to see what has been achieved:
ELRS Long Range Competition
What can you expect? Due to local regulations, the 900MHz FCC region seems to have better performance than the 868MHz EU region. The 2400MHz band works great in any region, offering a higher packet rate up to 500Hz. This is not a common 2400MHz protocol and cannot be compared to anything previously on the market.
Specifications
- MCU: ESP 8285
- Receiver Type: Single antenna
- Firmware:
- iFlight 900MHz 500mW RX (868MHz/900MHz)
- iFlight 2.4GHz 500mW RX (2.4G)
- Lua Script:
- iF 900 500mW RX (868MHz/900MHz)
- iF 2G4 500mW RX (2.4G)
- Frequency Bands: 868MHz EU/900MHz FCC and 2.4GHz ISM
- Telemetry Power:
- 100-500mW (20-27dBm) (868/900MHz)
- 50-500mW (17-27dBm) (2.4G)
- Dimensions: 14 x 25 x 4.3mm
- Protocol: CRSF
- LNA:
- N/A (868/900MHz)
- YES (2.4G)
- Weight: 1.8g
Packing List
- 1 x ExpressLRS 500mW Receiver
- 1 x Antenna
