Description
It’s finally here, the iFlight ELRS System! Experience extreme range and the market’s highest packet rate for the lowest delay. Failsafes are a thing of the past.
ExpressLRS RX Nano modules were developed in close cooperation with the ExpressLRS Team, with firmware targets already released.
Checkout the official ExpressLRS website:
https://www.expresslrs.org/
Official ExpressLRS Quick Start:
https://www.expresslrs.org/2.0/quick-start/getting-started/
Remember, this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating:
https://opencollective.com/expresslrs
Features
- Improved circuit design
- Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
- High-performance at 2400MHz or 900MHz (900 / 868 bands available)
Performance and Compatibility
Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
Flash the latest firmware and follow the ELRS Community for updates, tutorials, or contributions.
Use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved market’s best crystal frequency stability at a very low frequency deviation. For further information, please check out this article:
Crystal Oscillator (XO) Frequency Error
Band Options
The 900MHz as well as 2400MHz bands offer outstanding performance and long-range capabilities. If you’re unsure which to choose, please check out the official ELRS Long Range Competition to see what has been achieved:
ELRS Long Range Competition
What can you expect? Due to local regulations, the 900MHz FCC region seems to have better performance than the 868MHz EU region. The 2400MHz band works great in any region, offering a higher packet rate up to 500Hz. This is not a common 2400MHz protocol and cannot be compared to anything previously on the market.
Specifications

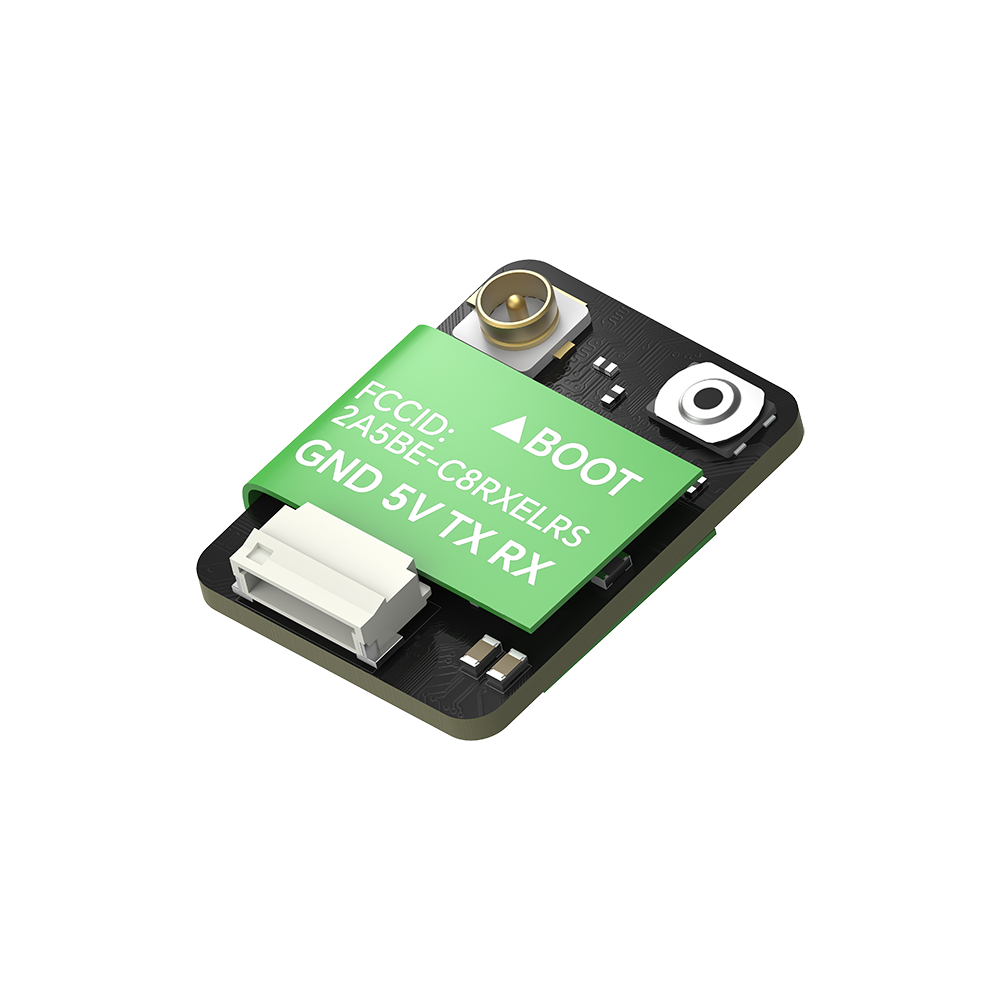

- Antenna connector: IPEX (868MHz/900MHz/2.4G) / SMD antenna (2.4G w/SMD antenna)
- Firmware: ExpressLRS iFlight 900MHz Nano RX (868MHz/900MHz) / ExpressLRS iFlight 2.4GHz Nano RX (2.4G)
- Frequency bands: 868MHz EU / 900MHz FCC and 2.4GHz ISM
- Telemetry Power: 17dBm (50mW 868/900MHz) / 12.3dBm (17mW 2.4G)
- Dimensions: 10 x 13mm
- Connector: SUR0.8 Connector

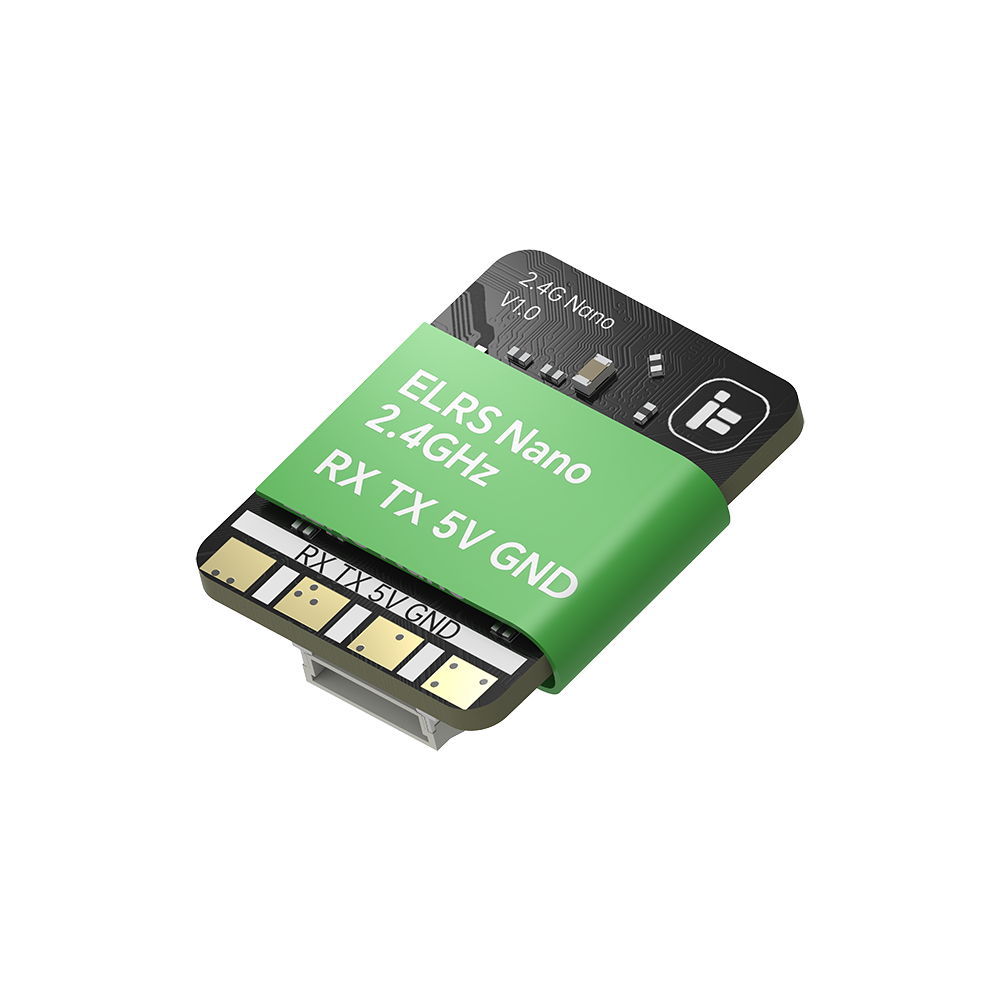

- Interface: RX, TX, 5V, GND
- Input voltage: 5V
- Protocol: CRSF
- Weight: 0.5g
Packing List
- 1 x ExpressLRS Nano Receiver

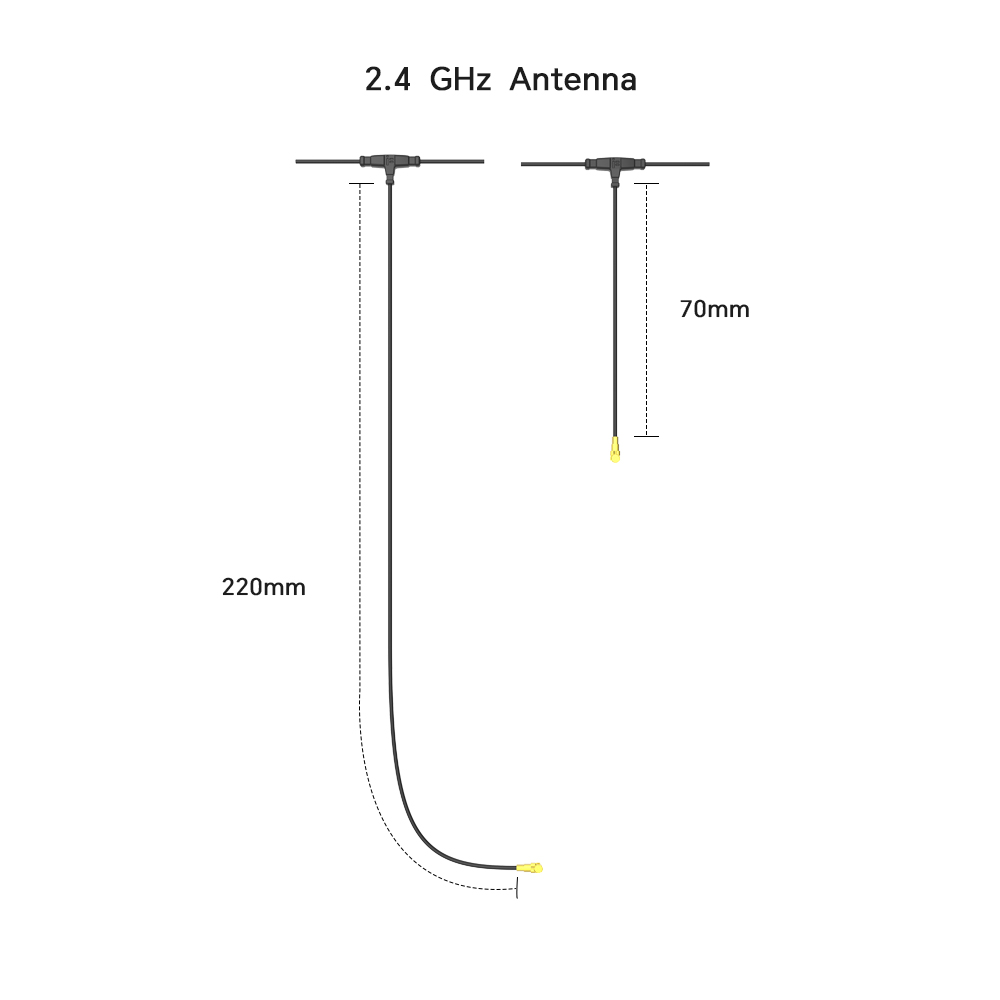

- 1 x Antenna
