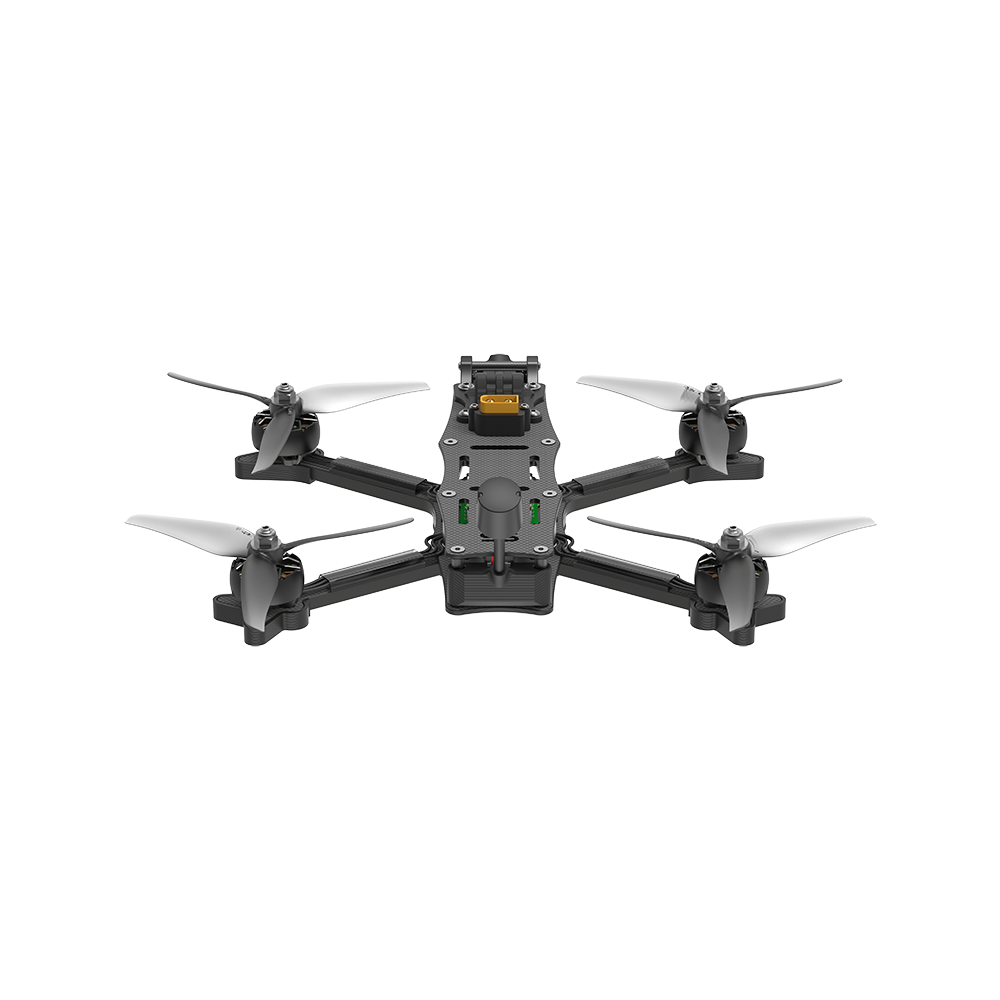

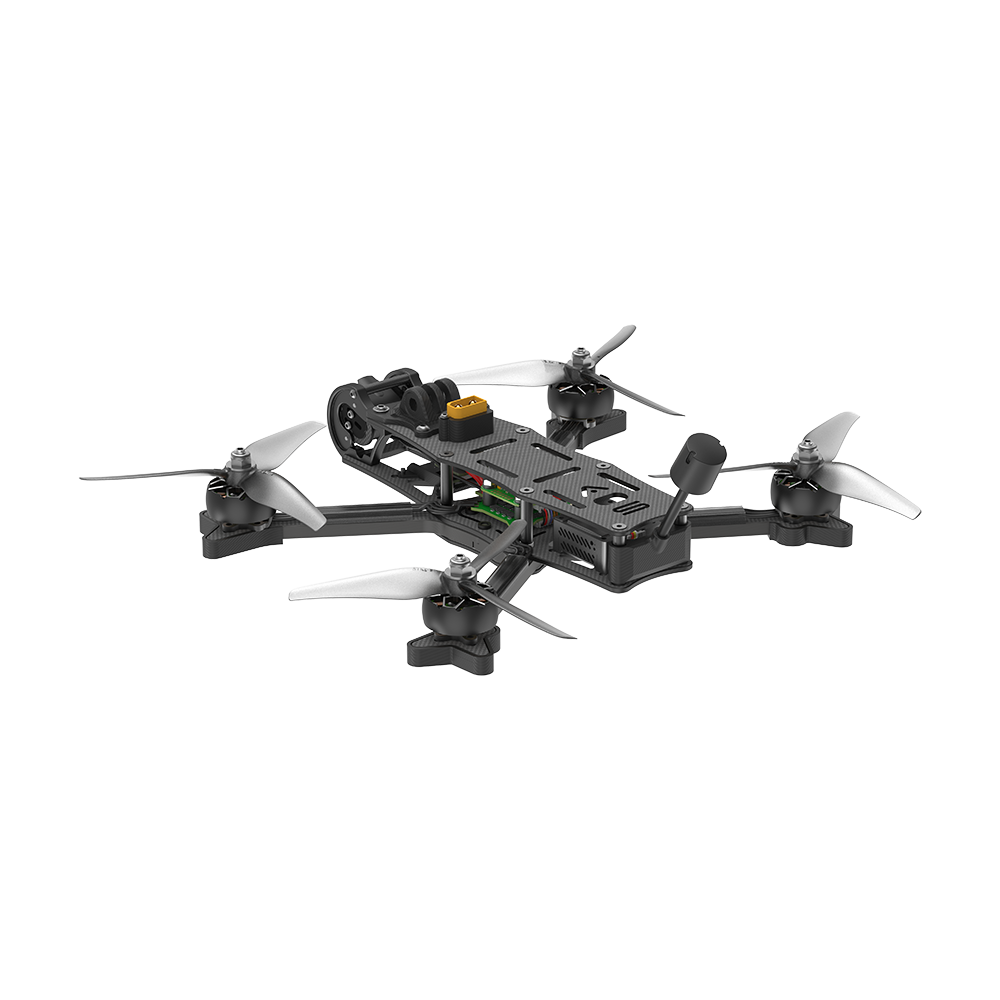

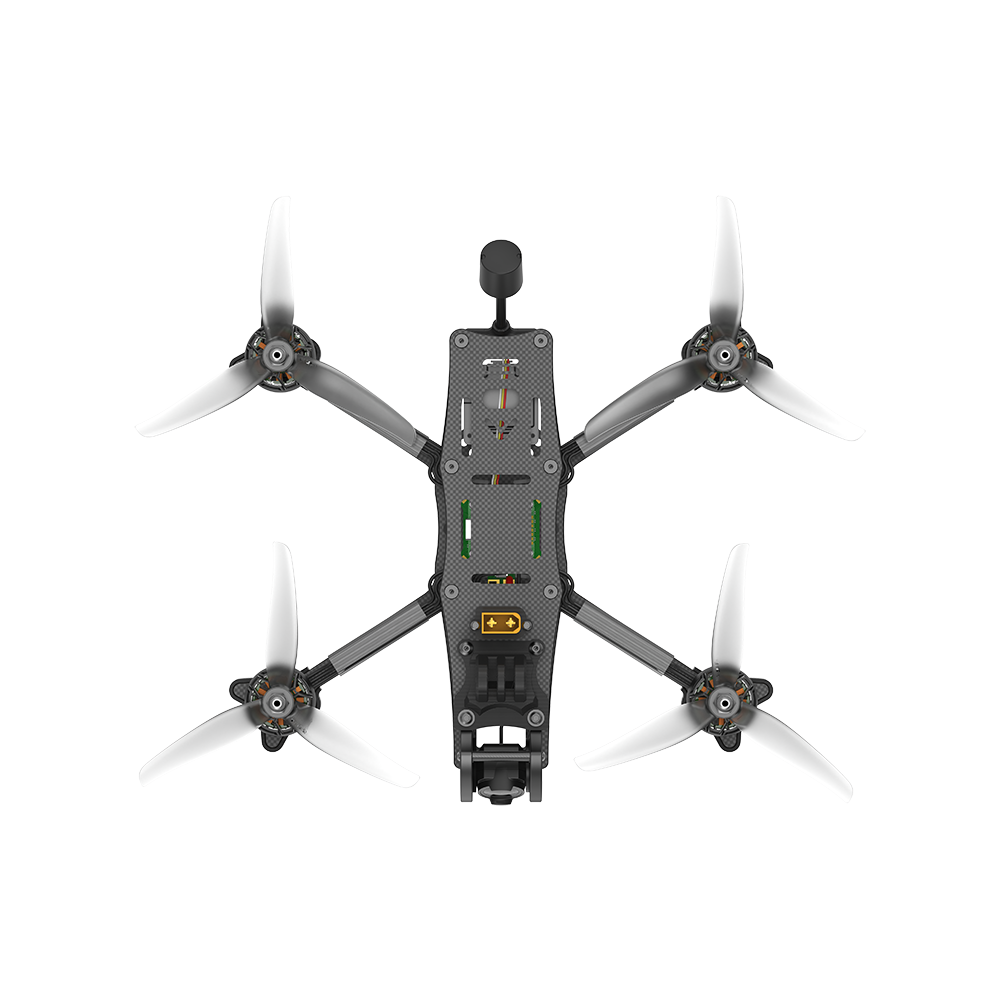

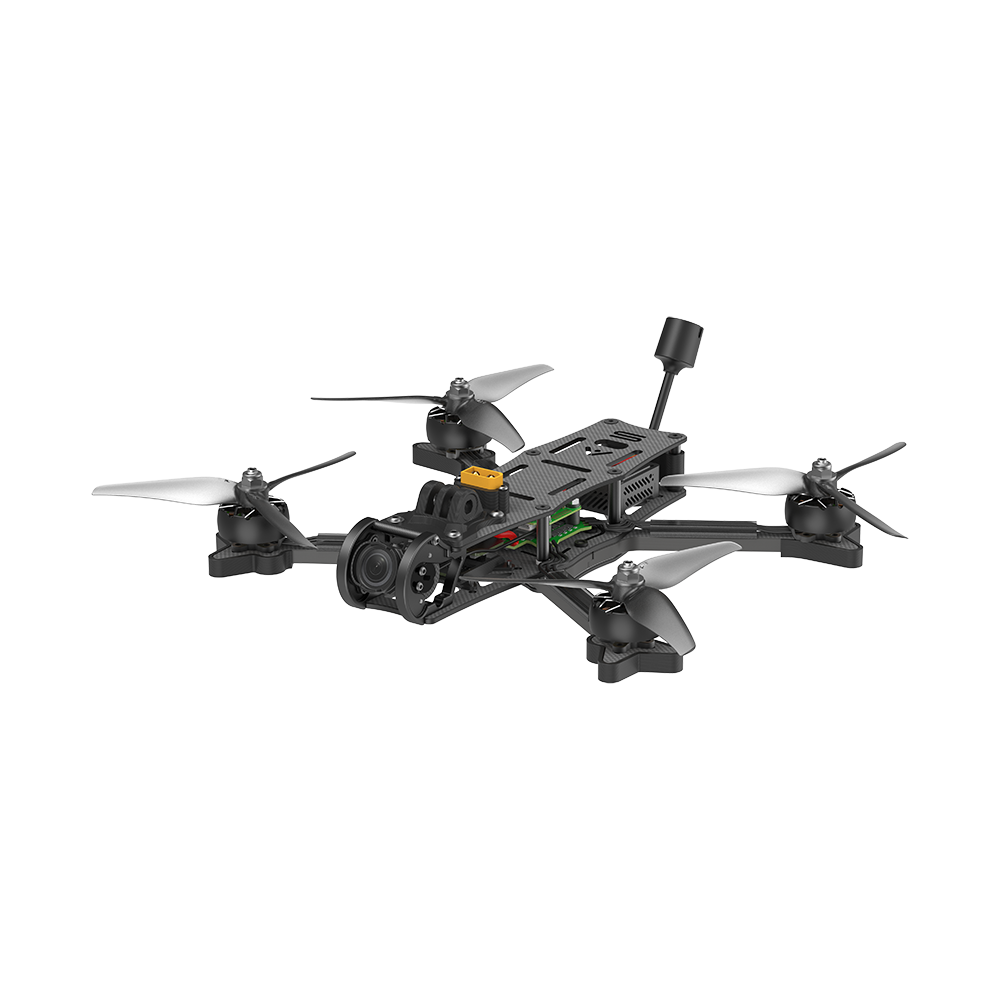

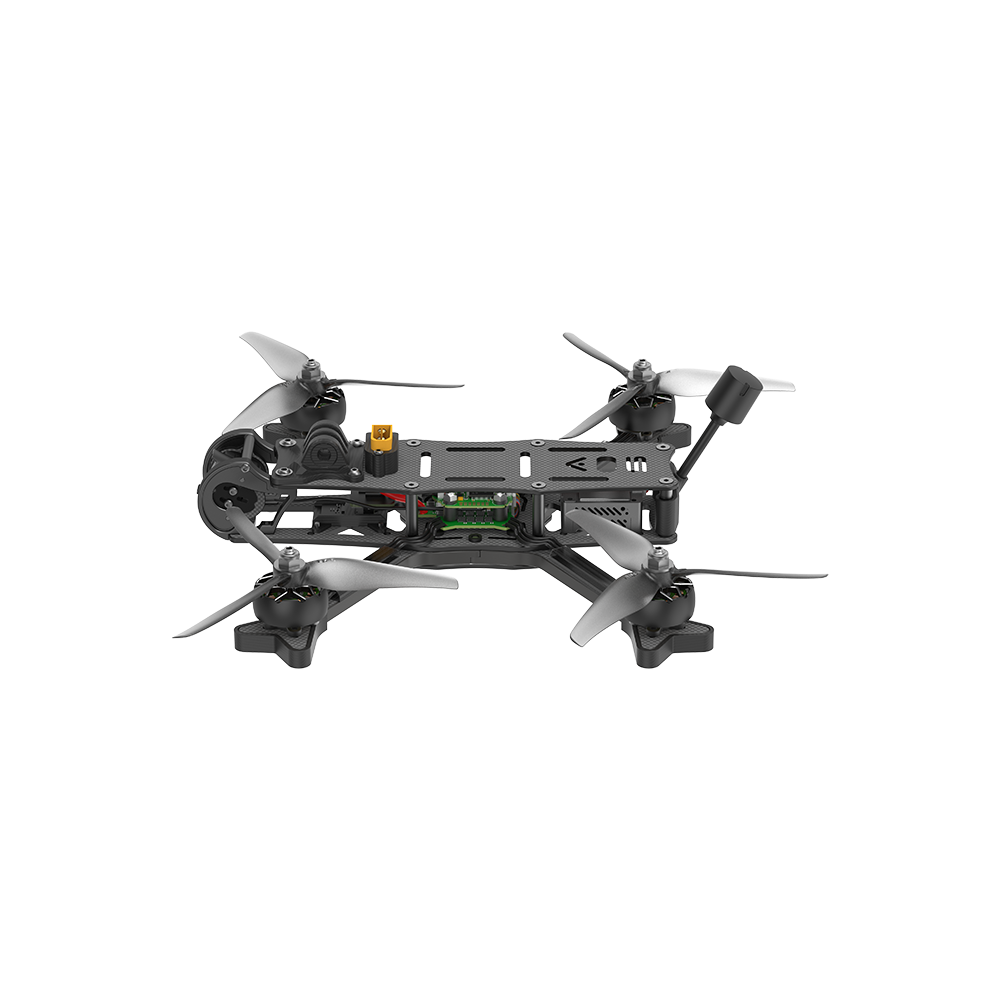

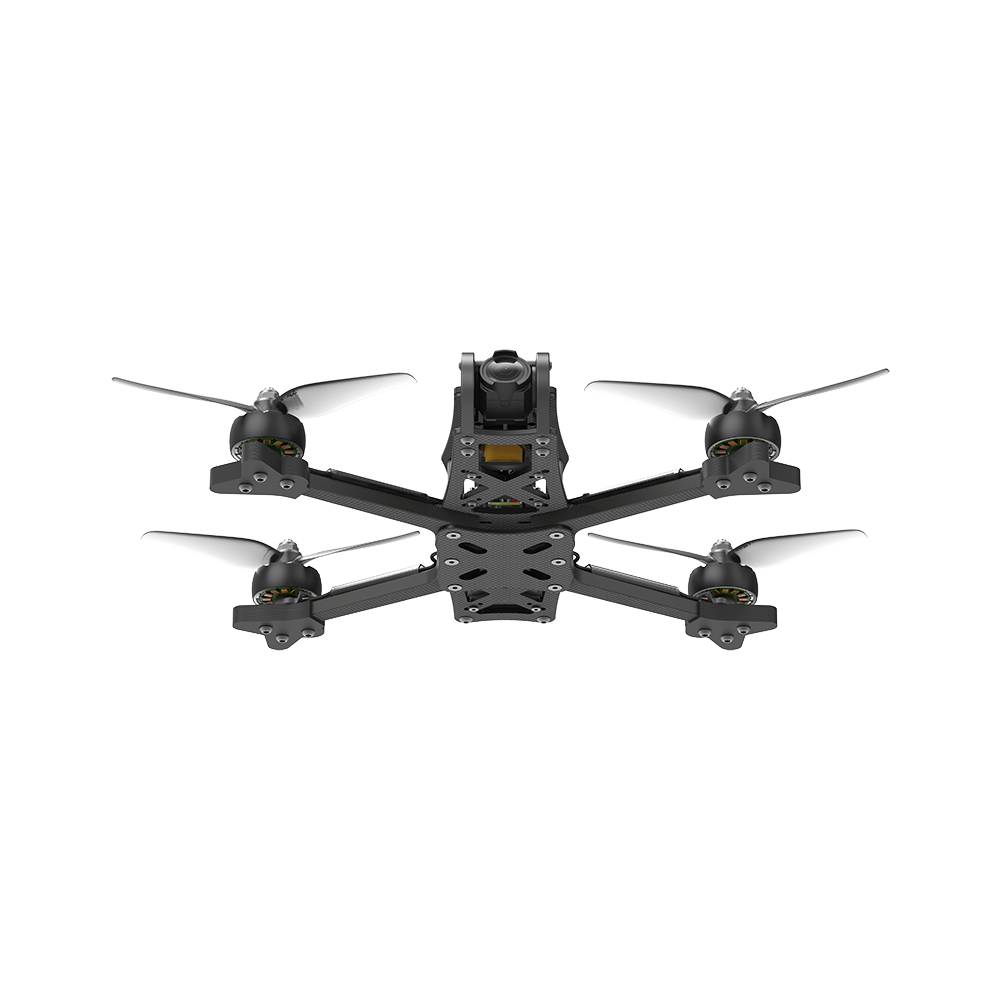

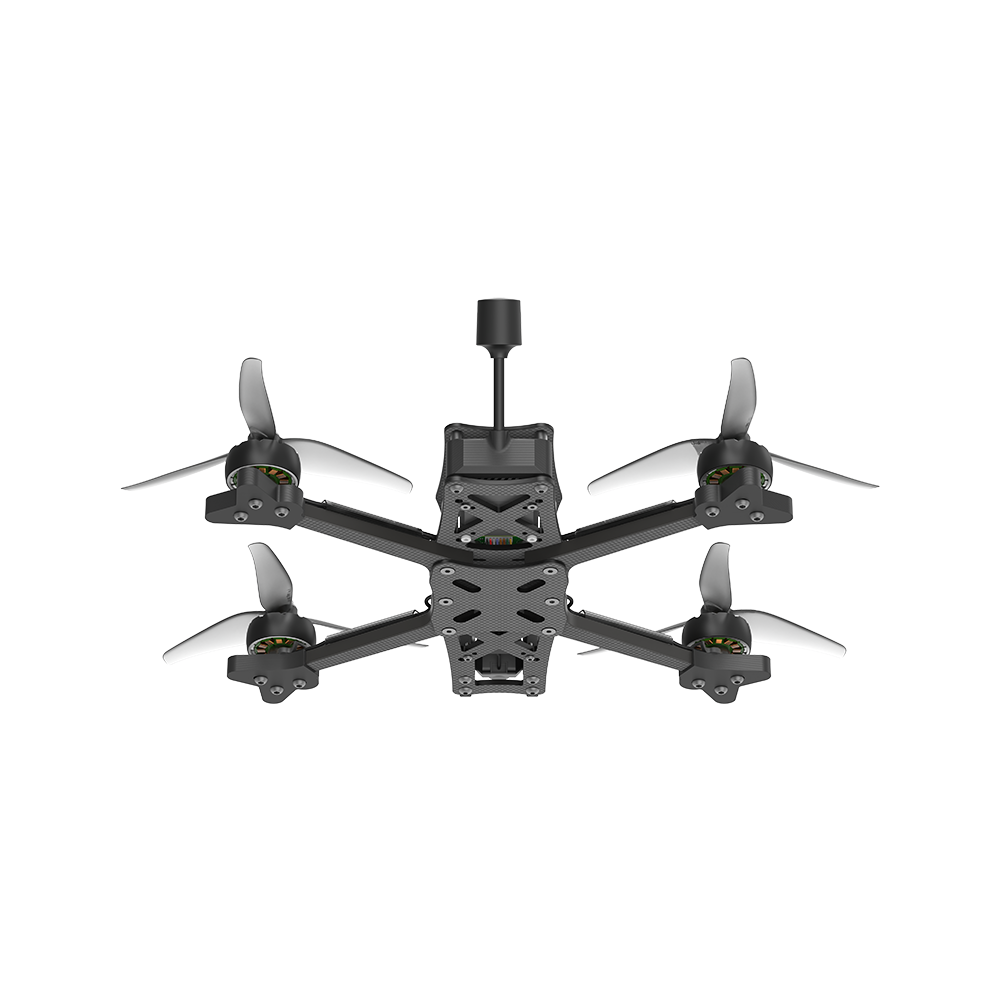

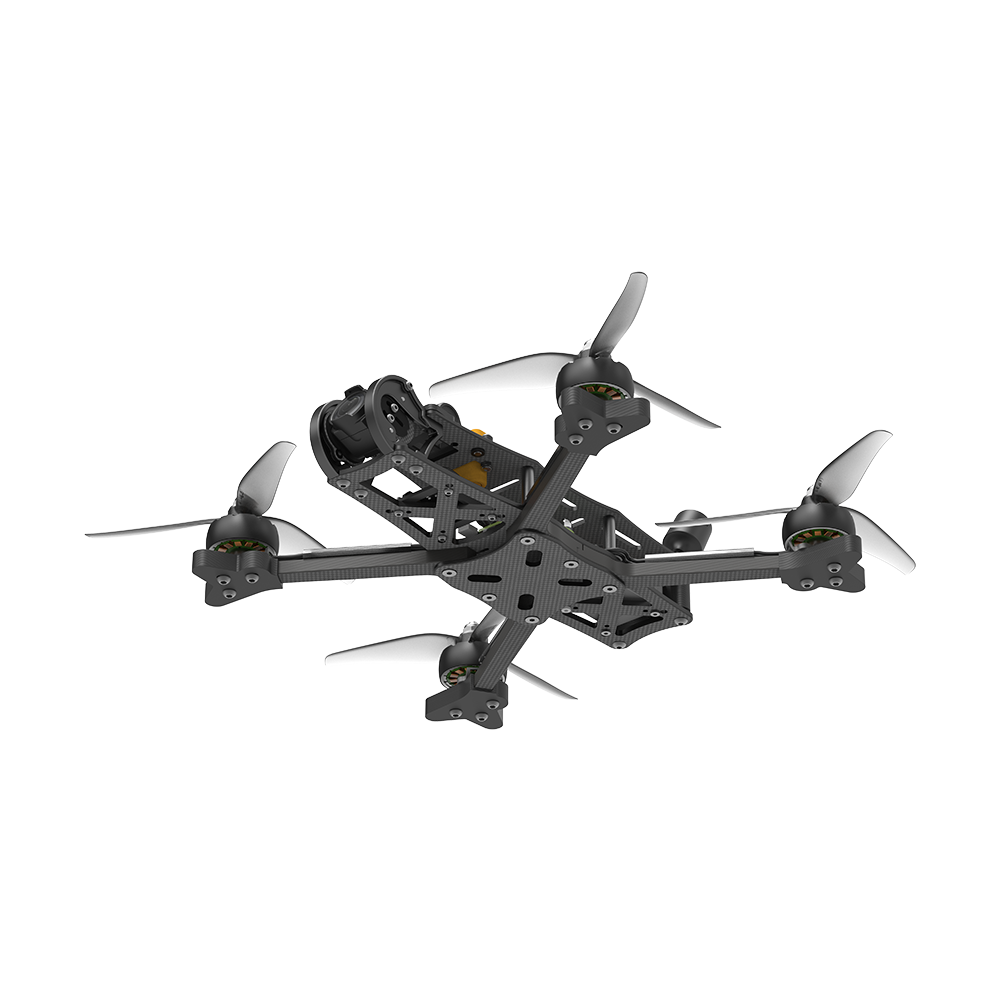

Discover the Future of 5″ FPV with the AOS 5 V5
Engineered to revolutionize your freestyle experience, the AOS 5 V5 is designed with cutting-edge patent pending technology and premium materials. Here’s why the AOS 5 V5 is the ultimate choice for drone enthusiasts.
Elevate your FPV game with the AOS 5 V5. Designed to deliver the ultimate in 5″ performance, durability, and customization, it’s the perfect choice for professionals, enthusiasts, and beginners alike. Unleash your creativity and push the boundaries of what’s possible in your freestyle flying.
Highlights
Advanced Patent Pending Anti-Vibration Technology
Say goodbye to unwanted vibrations that can hinder your drone’s performance. The AOS 5 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50% (compared to AOS 5 EVO). This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.
Durable and Versatile 7075 Aluminium Camera Cage
The AOS 5 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 camera, with full support for ND filters.
Immersive 155° FPV Experience
Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts.
Reinforced Arm and Stack Mounting
Say goodbye to stripping threads! The arm and stack mounts on the AOS 5 V5 are reinforced with steel press-nuts for easy assembly, rock-solid mounting, and enhanced durability.
Flexible Battery Mounting
Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone’s balance and performance based on your flying style and preferences.
Specifications
- Product Name: AOS 5 V5 HD BNF
- Geometry: Squashed-X
- FC: BLITZ Mini F7 FC
- ESC: BLITZ Mini E55 4-in-1 ESC
- Video Transmission: DJI O3 Air Unit
- Frame: 228mm wheelbase
- Motor: XING 2207 1750KV motors
- Prop: Nazgul F5 propellers
- Takeoff Weight: Approx. 407g (Without Battery)
- Dimensions (L×W×H): 180×140×34 mm
- Max Speed: 190 km/h (Manual Mode)
- Maximum Takeoff Altitude: 6000 m
- Max Hover Time: Approx. 7.5 mins with 1400mAh no load
- Max Flight Distance: 5 km
- Max Wind Speed Resistance: Level 7
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Antennas: 1 Antenna (DJI O3 Air Unit Antenna)
- GNSS: N/A
Video Transmission
- Product Name: DJI O3 Air Unit
- Communication Bandwidth: Max 40 MHz
- FOV (single screen): 155°
- Communication Frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
- End-to-End Latency:
- With DJI FPV Goggles V2:
- 810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
- 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
- With DJI Goggles 2:
- 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
- 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
- With DJI FPV Goggles V2:
- Max Video Transmission Bitrate: 50 Mbps
- Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
- Operating Temperature Range: -10º to 40º C (14° to 104° F)
- Power Input: 7.4-26.4 V
- Audio Transmission: N/A
Packing List
- 1 x AOS 5 V5 6S O3 HD BNF
- 2 x Battery pads
- 2 x Prop (Pairs)
Important
All iFlight BNFs are tested before shipment to guarantee the highest quality.
