PRODUCT DESCRIPTION

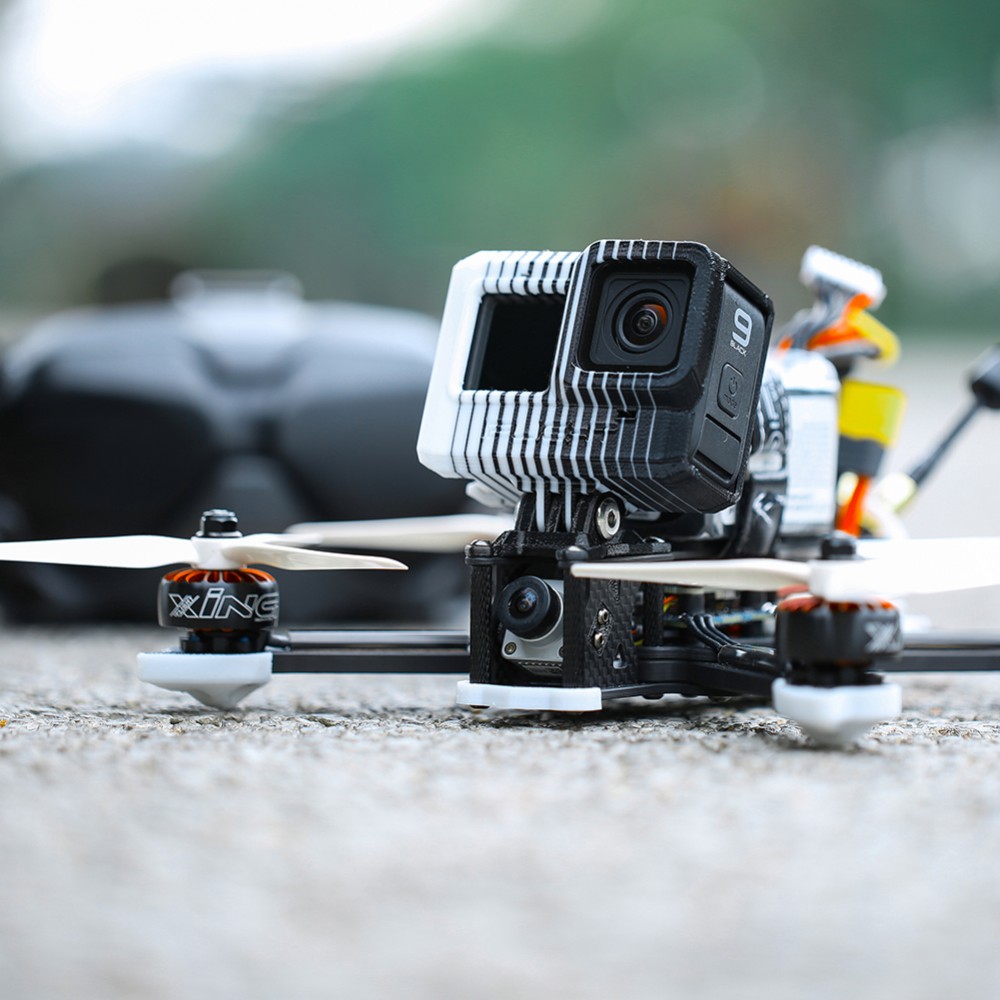

Having one of the most successful FPV companies link up with the global drone market leader, combining Nebula Nano Digital HD System with our highest standards racing, freestyle and cinematic drones to create a HD pilot experience!
This frame offers a squashed X layout for maximum control, equipped SucceX-D F7(50A 4-in-1 ESC) stack and popular XING motors. Everything you just need to bind and fly!
Different power version (4S and 6S available) to fit most pilots requirements. Choose your receiver option to get your FrySky or Crossfire installed and ready to be bound to your radio.
Main Changelog V2.1:
– LED illuminated Logo
– Bottom carbon thickness increased from 2mm to 2.5mm
– Arm thickness increased from 5mm to 5.5mm
– The Wheelbase increased from 215mm to 217mm
– TPU parts are not compatible, color is different
Features：
– Everything you need to bind and fly!
– Optimized weight distribution: DJI unit and Stack centered
– Equipped with SucceX-D F7(SucceX 50A BLHeli32 4-in-1 ESC) Stack
– Equipped with the Nebula Nano Digital HD System -Bind and Fly
– Pre-tuned with smooth freestyle settings
– Full 3K Carbon Fiber airframe with chamfered arms
– Equipped with XING 2207 motors
– Weight: 445.4g without battery and GoPro mount
– LED illuminated Logo
PRE-TUNED & PRE-SETUP:
– Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on „Firmware/Factory Dumps“
– Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
Please check our linked article on „How to disable Angle-Mode, activate Acro-Mode“
Specifications:
– Total Dimensions: 166*139mm (body dimension)
– Frame Wheelbase: 217mm
– Bottom to top distance: 28mm
– Arm thickness: 5.5mm
– Bottom plate thickness: 2.5mm
– Top plate thickness: 2mm
– Upper(middle) plate thickness: 3mm
– Camera plate thickness: 2.5mm (included TPU inserts)
– SucceX-D F7 TwinG V2.1 FC
– SucceX 50A 2-6s BLHeli32 4-in-1 ESC Dshot1200
– XING 2207 2450KV(4S)
– Nazgul 5140 propellers
– Weight: 445.4g (without battery and GoPro mount)
Package Included:
-1x Cidora SL5 V2.1 4S 6S FPV Drone – BNF
-1x Nebula Nano Digital HD System Kit
– Albatross LHCP RP-SMA 5.8g antenna
-2 sets x Nazgul 5140 propellers (Set of 4 – Color may vary)
-1 x 20*250mm battery strap (Color May Vary)
-1x 20*200mm battery strap (Color May Vary)
-1x GoPro TPU bottom stand incl. lock screw
NOTE: The GoPro9 camera and TPU camera mount are not included.
