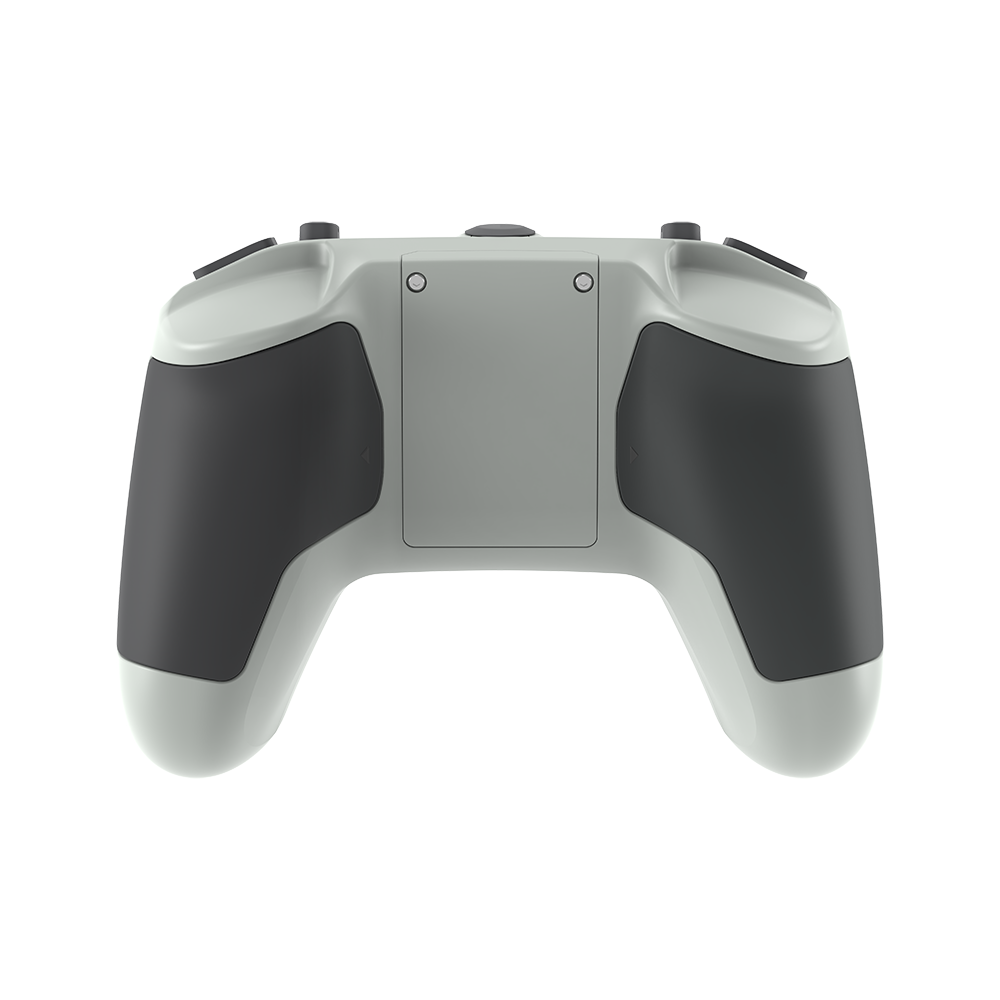

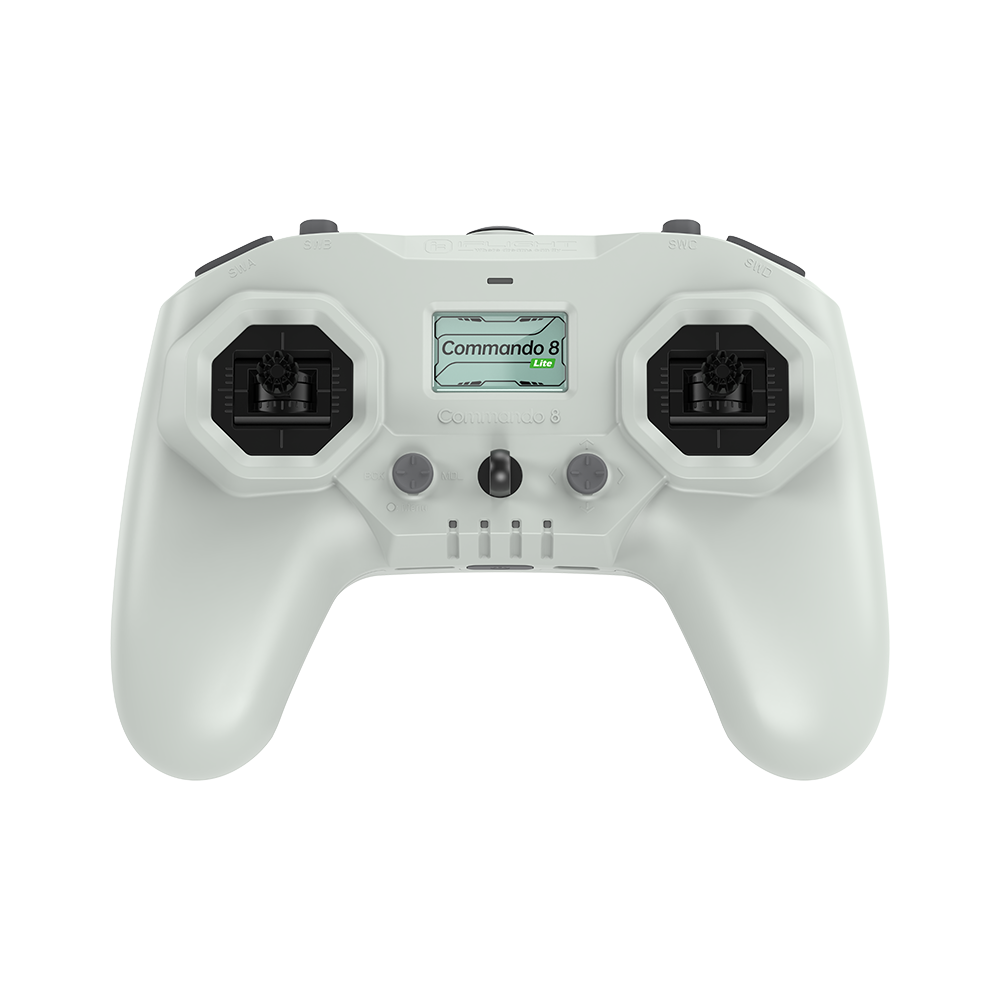

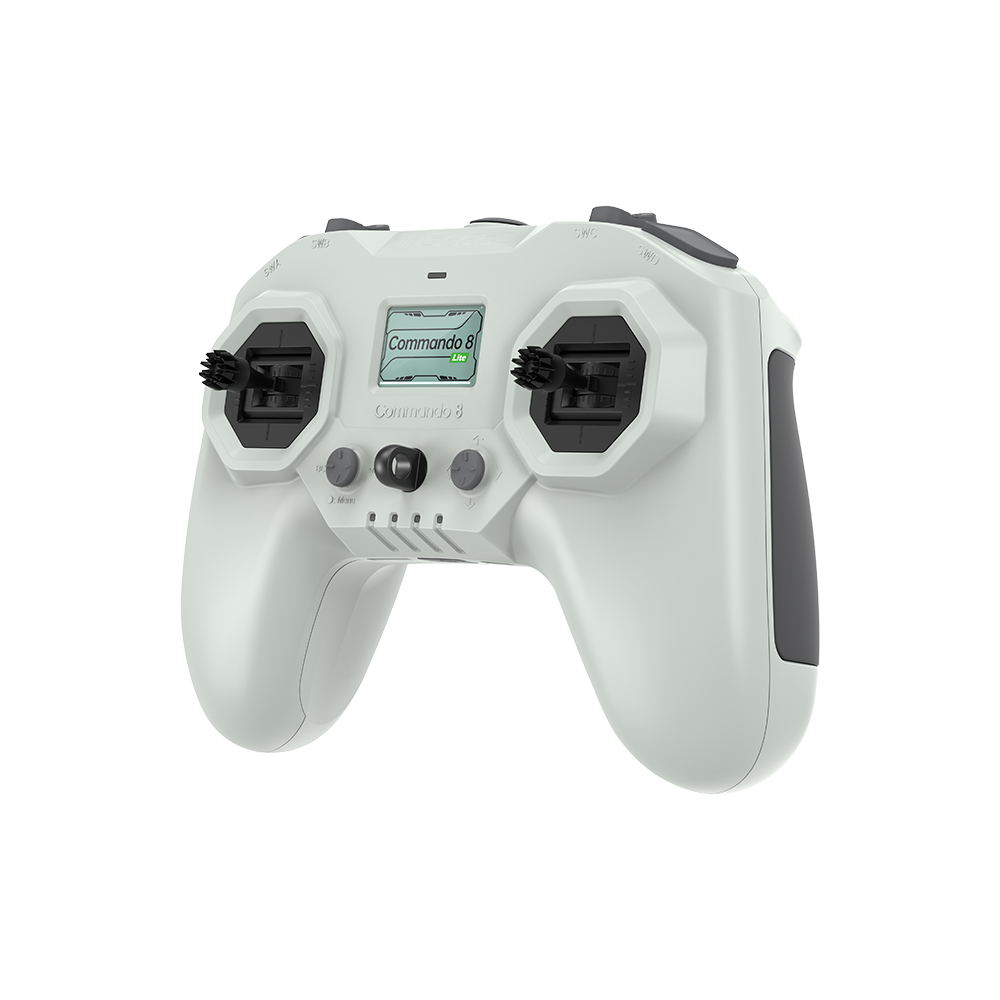

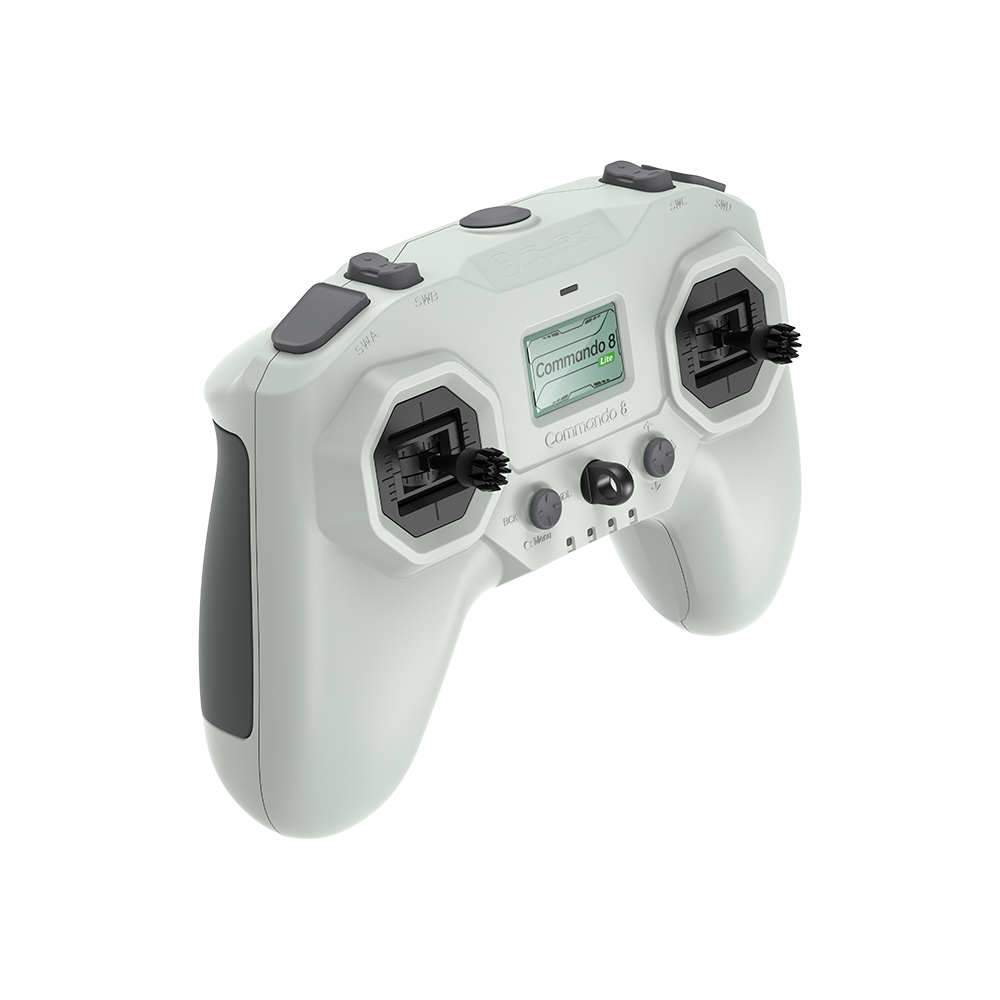

It’s finally here, the iFlight Commando 8 with fully integrated iFlight ExpressLRS hardware! No additional external module necessary to run ELRS.
ExpressLRS TX modules developed in close cooperation with the ExpressLRS Team with firmware targets already released.
Checkout the official ExpressLRS website:
https://www.expresslrs.org
Official ExpressLRS Quick Start:
https://www.expresslrs.org/2.0/quick-start/getting-started/
Remember this is an Open Source Project and therefore free to use for everyone. If you want to support the Developers, please consider donating:
https://opencollective.com/expresslrs
Features
- Internal iFlight ExpressLRS (ELRS) transmitter
- Temperature Compensated Crystal Oscillator (TCXO for low packet loss, high frequency stability)
- External antenna upgrade available for longer flight distances
- Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)
- Several Gimbal Stick Ends available (stock 18mm)
- Built-in SMD antenna and detachable gimbal provide convenience for portability
- No display screen
- Equipped with gimbals fine-tuning function, suitable for novices
- Lighter than Commando 8, as low as 280g
Performance and Compatibility
Please use iFlight ELRS receivers coupled with our transmitter for maximum performance! We’ve probably achieved market’s best crystal frequency stability at a very low frequency deviation. Please check out this article for further information:
Crystal Frequency Error Information
Band Options
The 2400MHz band has outstanding performance and long range capabilities.
There is only a 2.4GHz 100mW option, which works great in any region.
ELRS Only Option (Single TX)
Single ELRS option includes 1x ELRS TX module pre-installed in the back of the radio.
Button Functionality
- 2x 5-axis menu buttons for Gimbal Trim
- 2x 2-position switches (can be used for arming; not momentary)
- 2x 3-position switches
RF Power
- 2.4GHz system: SX1280
- ExpressLRS 2.4GHz // Output 100mW
Radio Channels
- Channels: 8
Input
- Mini High Precision Digital Hall Gimbals with NMB bearings
Gimbal Stick Ends
- Stock length: 18mm
Charging
- Type-C 10W Quick Charge
- Battery: Built-in 4000mAh 1S2P 18650 Battery
- Charging Connector: Type-C
Weight
- Weight: 275g
Packing List
- 1 x Commando8 Lite Radio Transmitter
