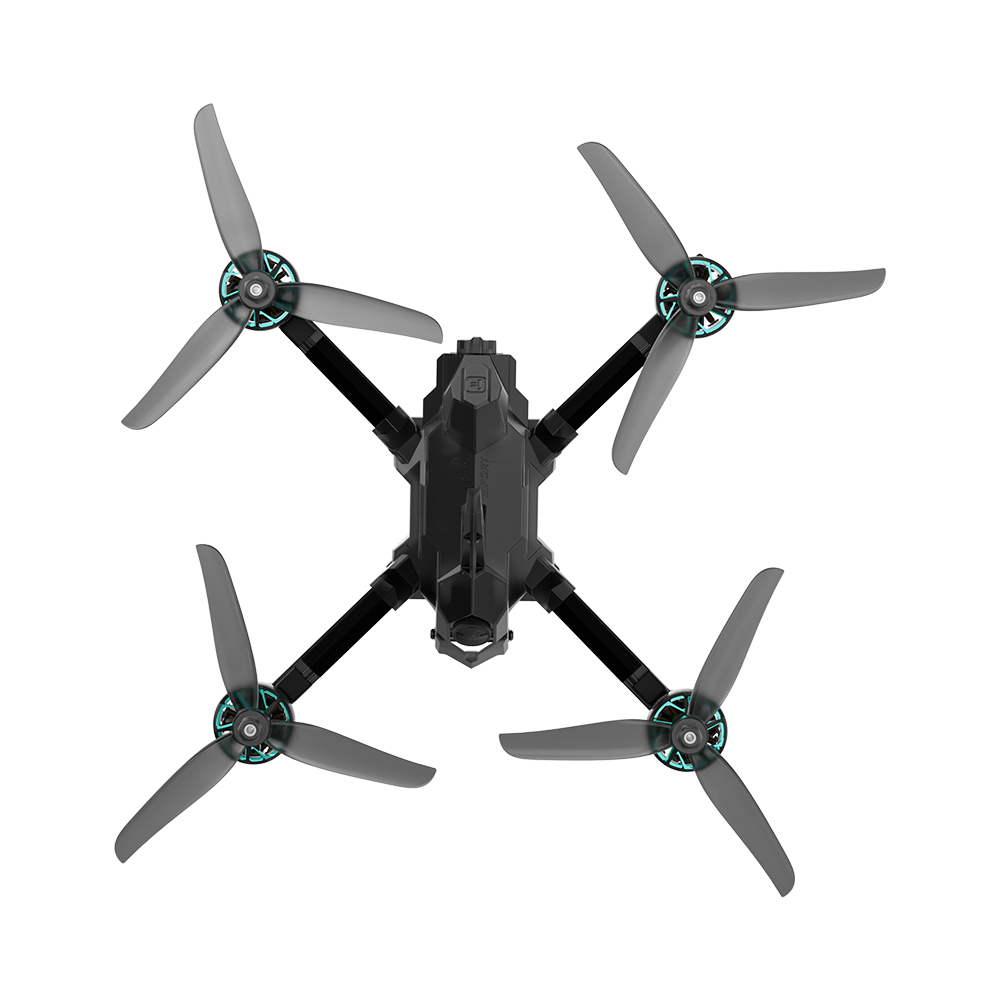

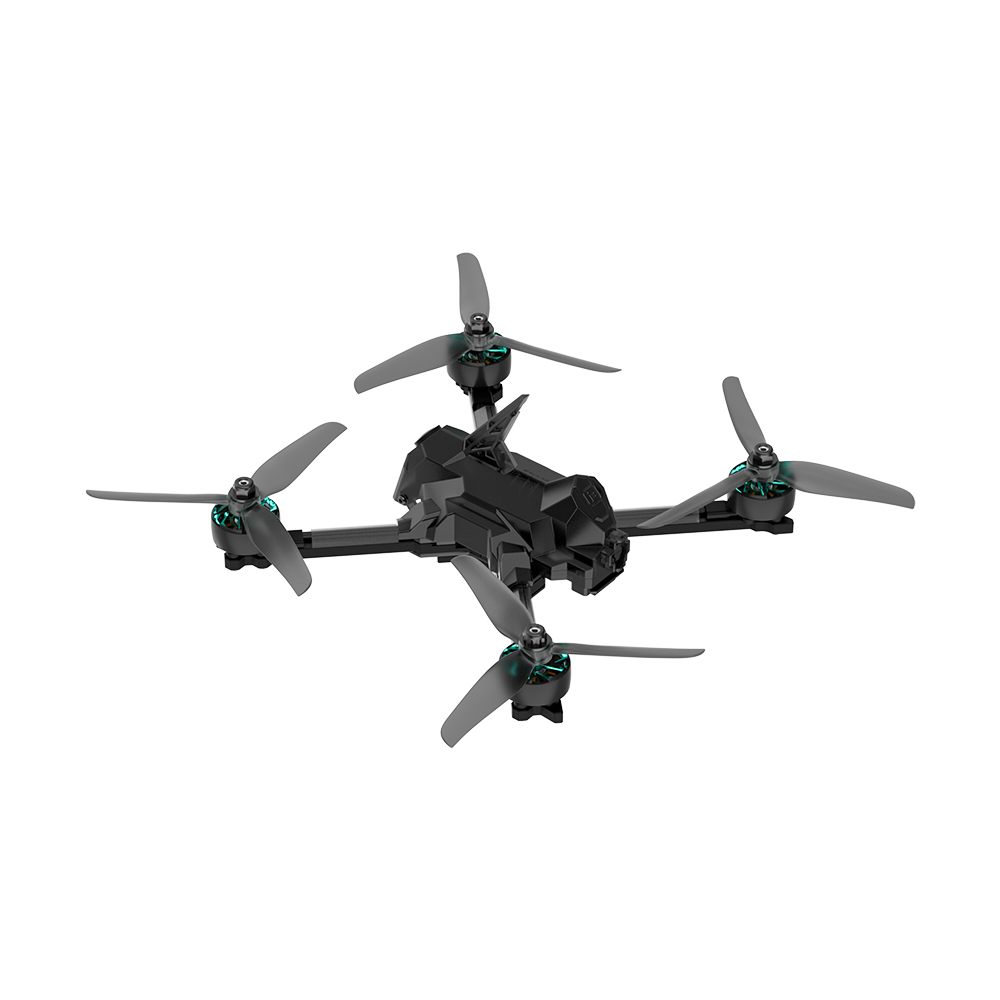

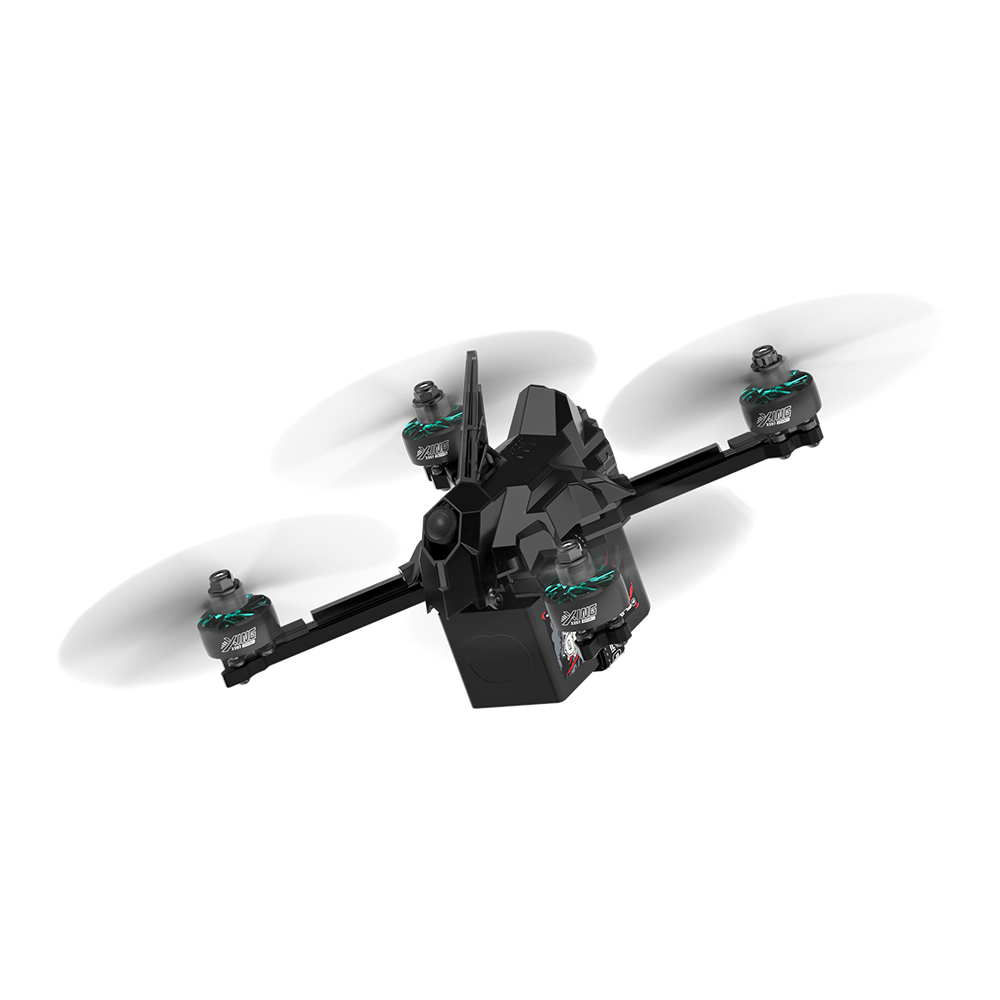

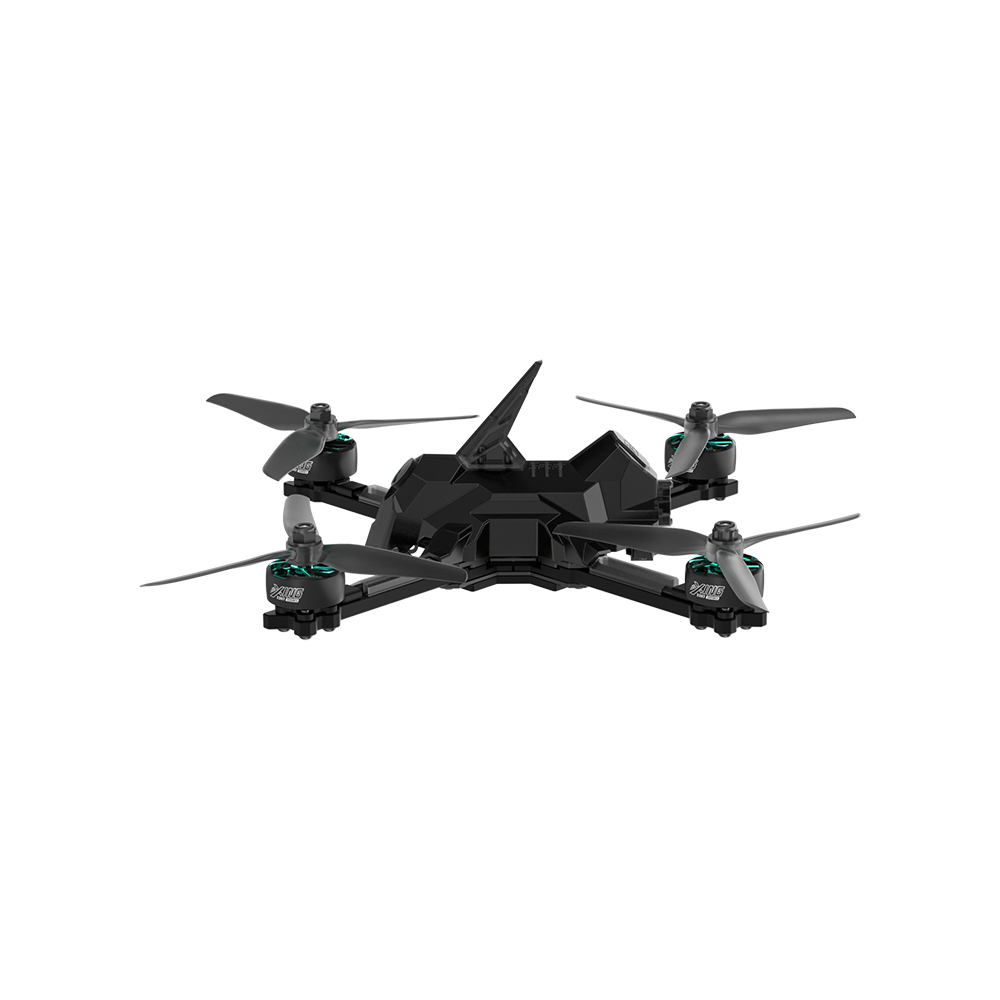

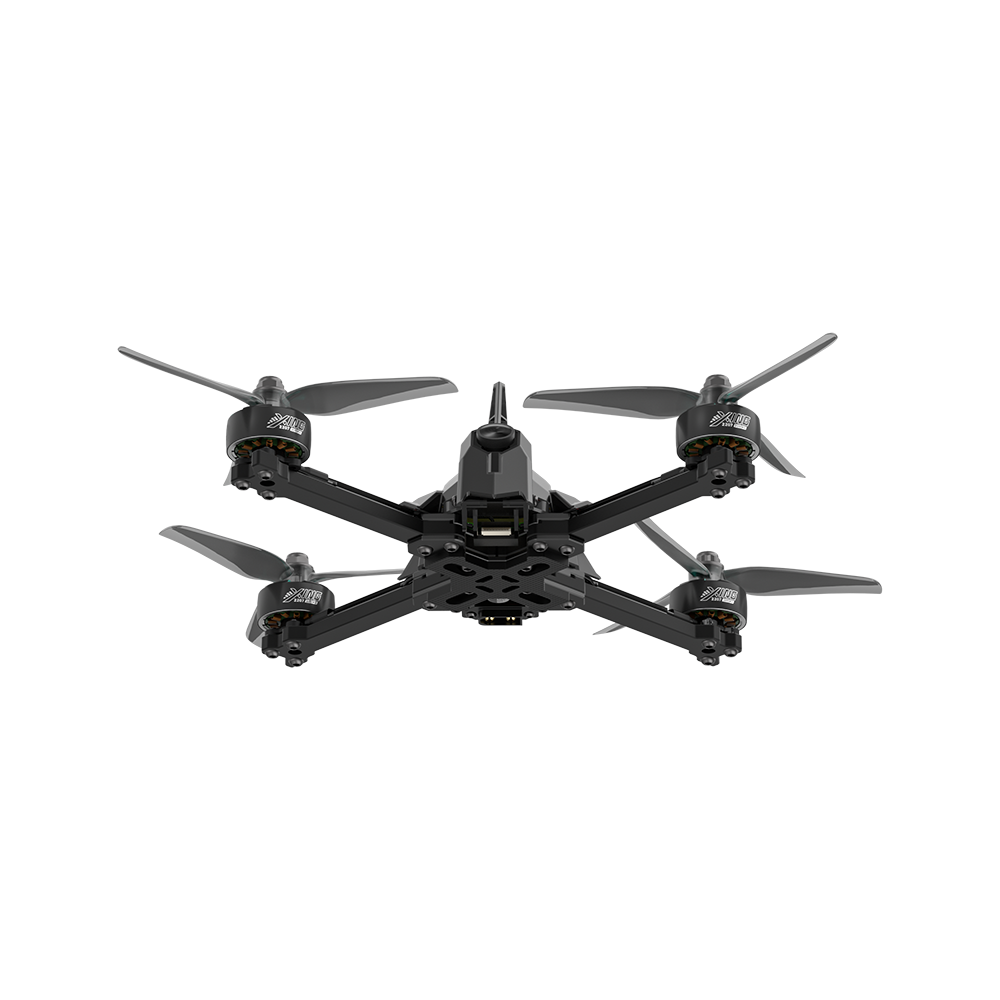

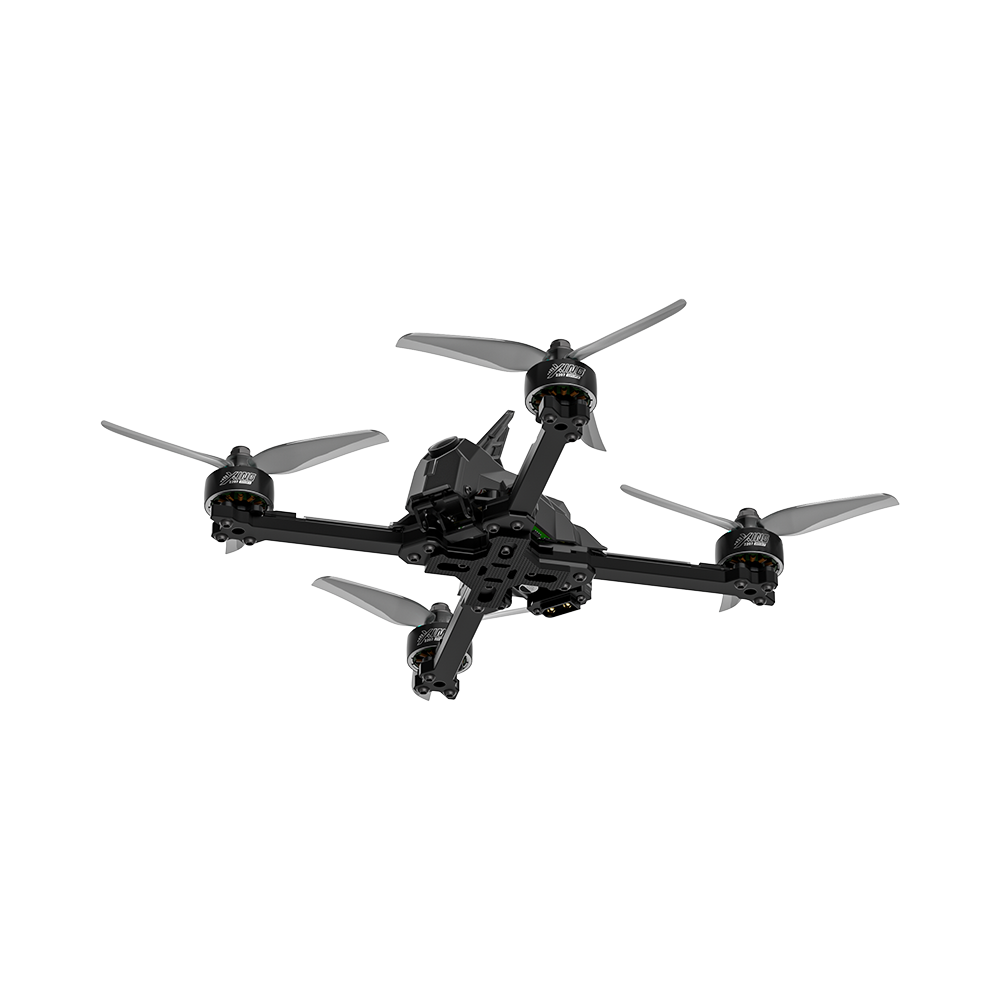

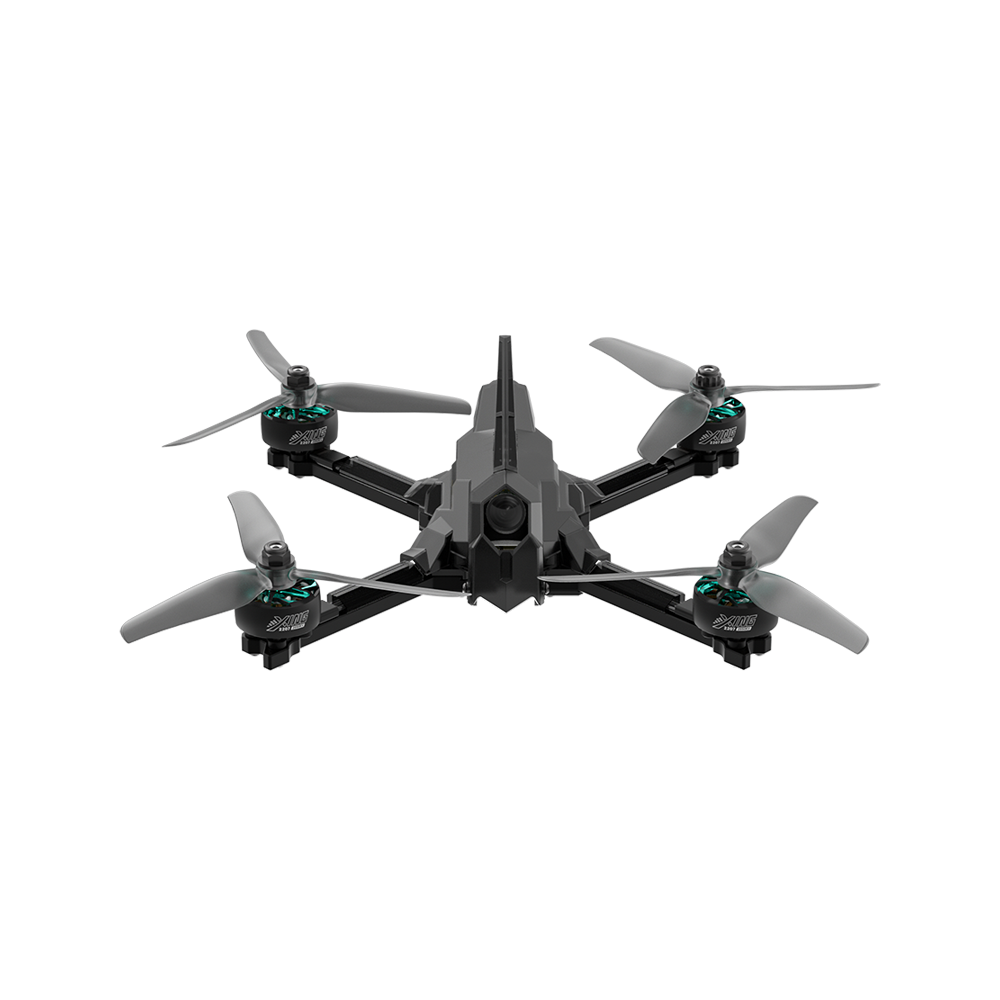

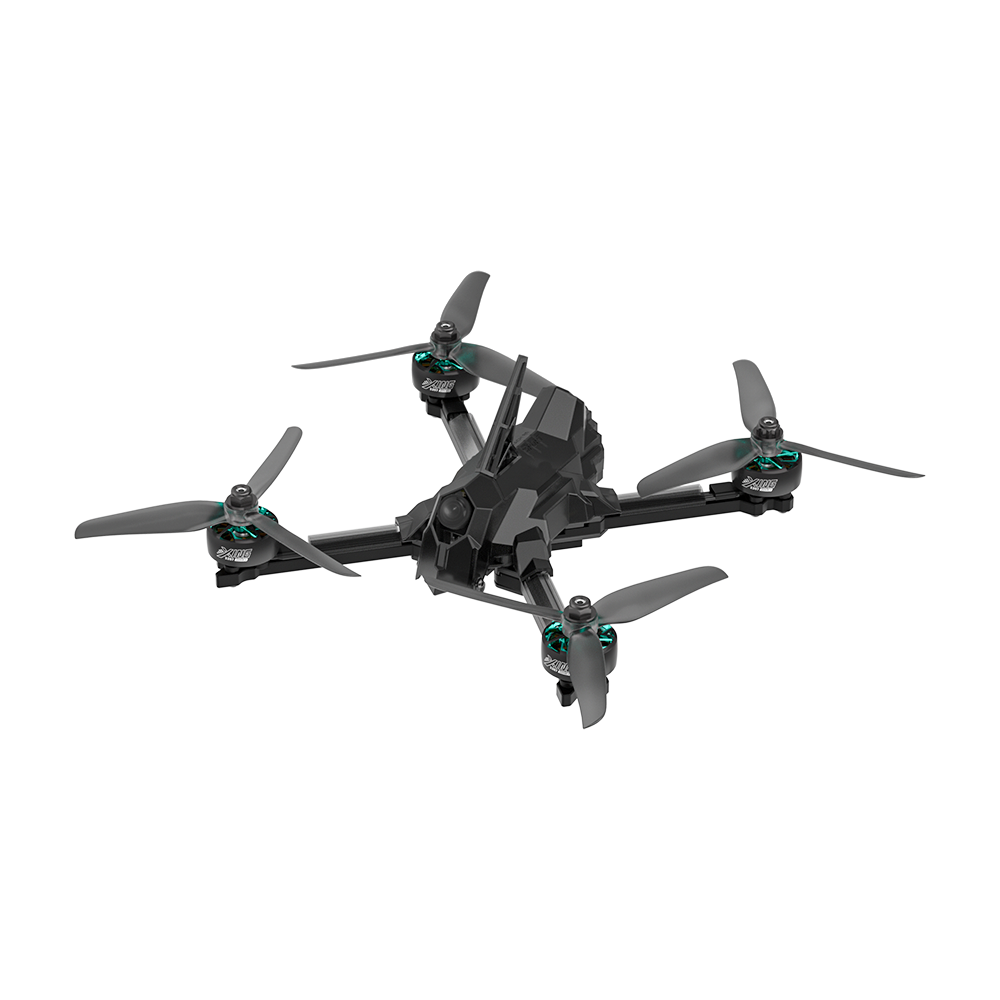

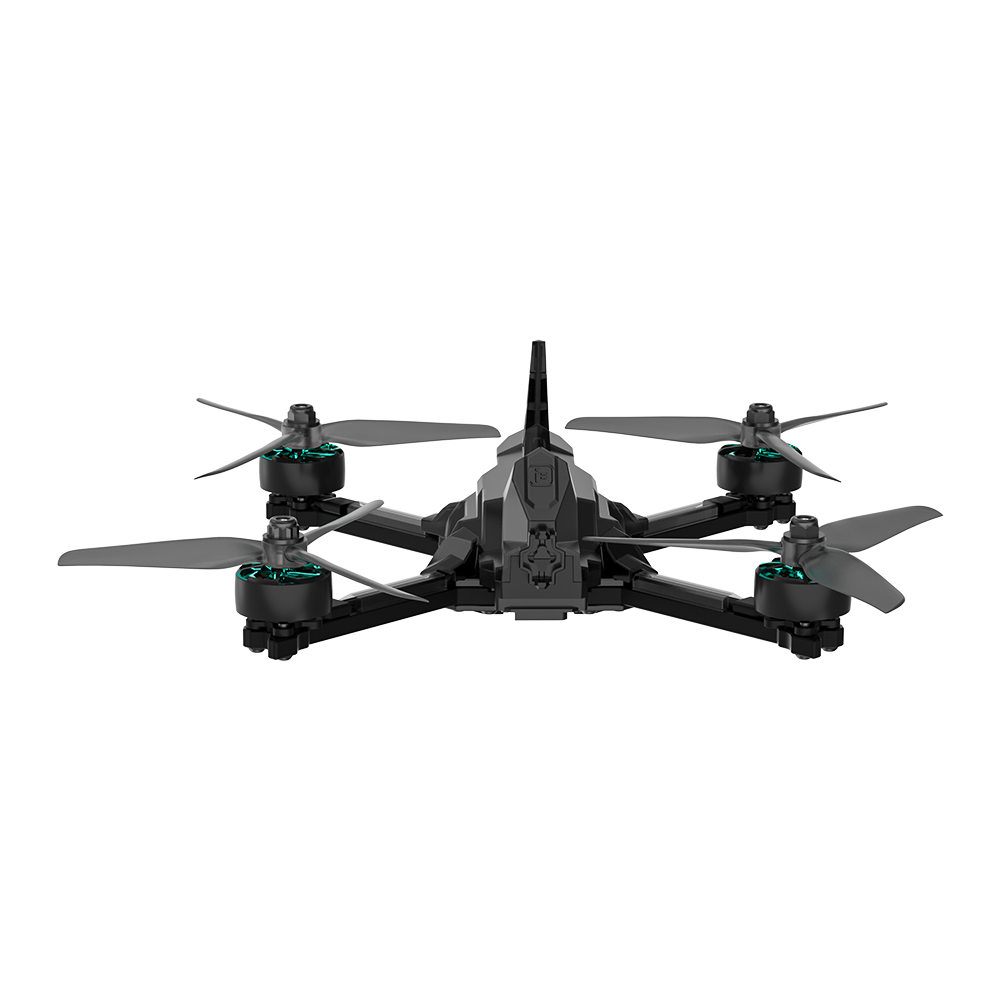

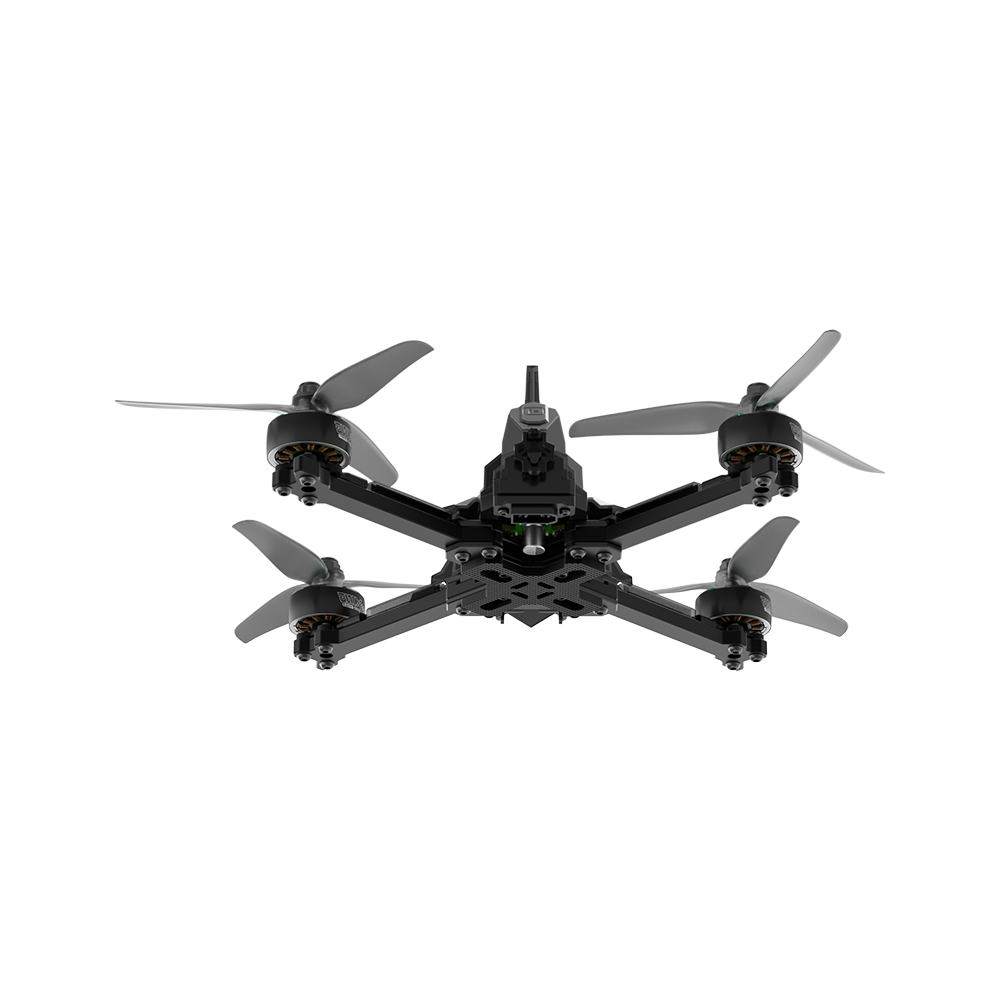

Mach R5 Sport

Compatibility

This version requires the use of the corresponding HDZERO goggles, or the addition of the HDZERO module to Analog goggles.

Not compatible with DJI remote controls and DJI goggles.

Description

The Mach R5 Sport aims to provide racing pilots a high-quality finished FPV drone while still allowing for DIY customization. By utilizing carbon plates and plastic components, the internal structure layout has been significantly improved. This not only facilitates easy maintenance but also reduces the weight of the drone while enhancing overall stability. The organized space layout guarantees that hardware components can be positioned logically, thus minimizing the risks of damage from crash impacts.

Changelog

• • June 7, 2024: Black canopy upgrade.

Note: BNF purchased after June 7, 2024, will be given an additional black Canopy.

• June 21, 2024: The Upper Plate (middle) is available in two versions, and will be shipped randomly.

Highlights

• Lightweight and Compact
  As a well-built 5-inch drone, the Mach R5 Sport weighs only 300 grams. Its redesigned frame layout ensures precise fitting of all components inside the canopy, maximizing space utilization and overall compactness.
• Innovative Quick-Release Aero Shell
  The unique canopy is not only engineered with aerodynamics, but also features quick-release buckles for easy replacement and maintenance with just a twist. The shell also helps to shield the electronics from dirt and moisture so you can have more confidence in critical situations.
• Convenient User Experience
  Secured battery plug to prevent the power cable from being hit by the propellers, and with built-in antenna to keep everything well protected and enhancing the overall appearance.
  The front-mounted receiver slot simplifies receiver replacement, and the new wire shielding tube design can place LED strips for protection, effectively preventing damage.
• DIY Customized Space
  Standard 20*20 mounting holes, compatible with HDZERO and other VTX.
  Antenna mount can be added with silicone pads, adapting to more regular VTX antennas.
  Canopy cover available in carbon plate with TPU, can be replaced by removing 6 screws.

Specifications

• Product Name: Mach R5 Sport 6S HDZero
• FC: BLITZ Mini F722 Flight Controller
• ESC: BLITZ E55R 4-IN-1 2-6S 55A ESC
• Video Transmission: HDZero Race V3 VTX
• Camera: HDZero Nano 90 CAM
• Frame: 210mm wheelbase
• Motor: R5 2207 2050KV motors
• Prop: Nazgul R5 V2 propellers
• Weight: 300g
• Takeoff Weight: Approx. 525g (With 6S 1400mAh battery)
• Dimensions (L×W): 148*148*51 mm
• Max Speed: 208km/h
• Maximum Takeoff Altitude: 6000 m
• Max Hover Time: Approx. 12 mins (With 6S 1400mAh no load)
• Max Wind Speed Resistance: Level 6
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Antennas: Single Antenna
• GNSS: N/A

Video Transmission

• Product Name: HDZero Race V3 VTX
• Antenna Interface: IPEX
• Input Volts: 4~12V
• Output Power: 25mW, 200mW
• Frequency: 5.725~5.850GHz
• FC protocol: Smart Audio/MSP
• Weight: 5.5g
• Mounting pattern: 20*20mm M4
• Dimensions: 32*28*5mm

Packing List

• 1 x Mach R5 Sport 6S HDZero BNF
• 1 x Battery strap
• 2 x R5 Prop (Pairs)
• 1 x Battery pad

Important

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
