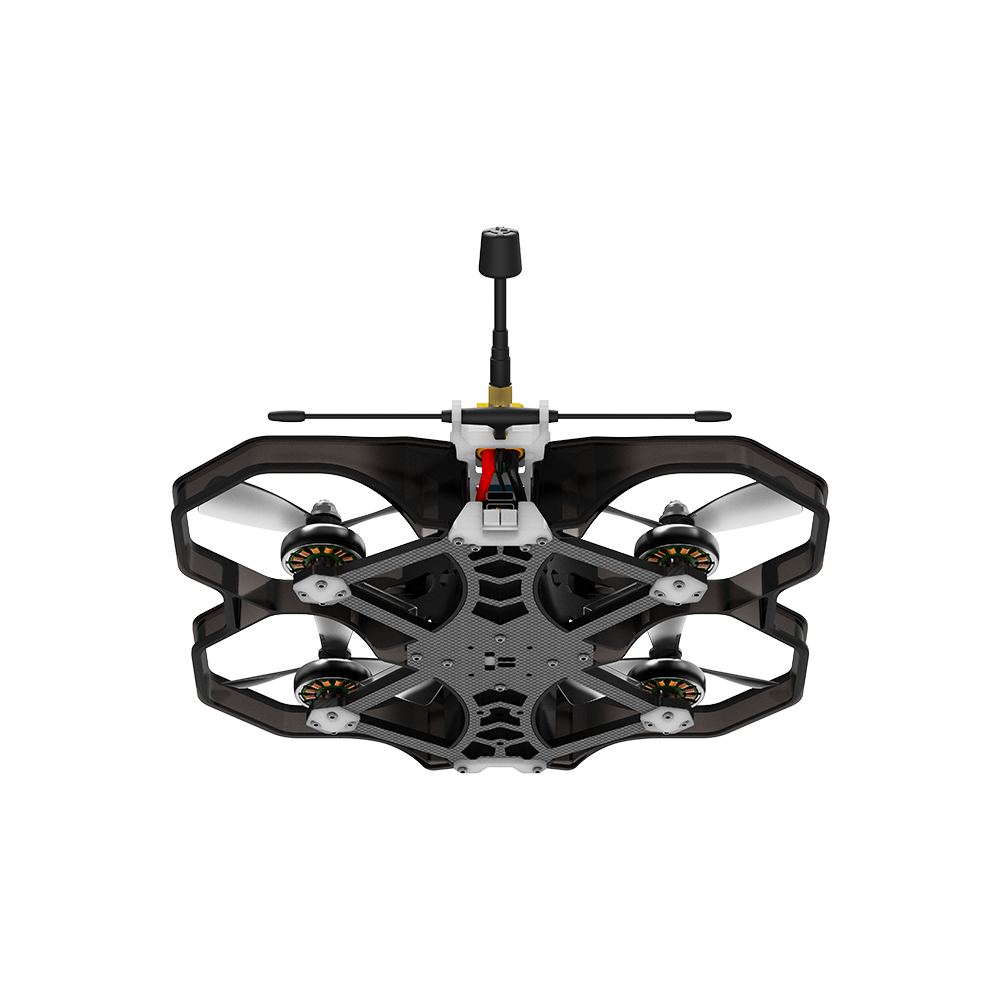

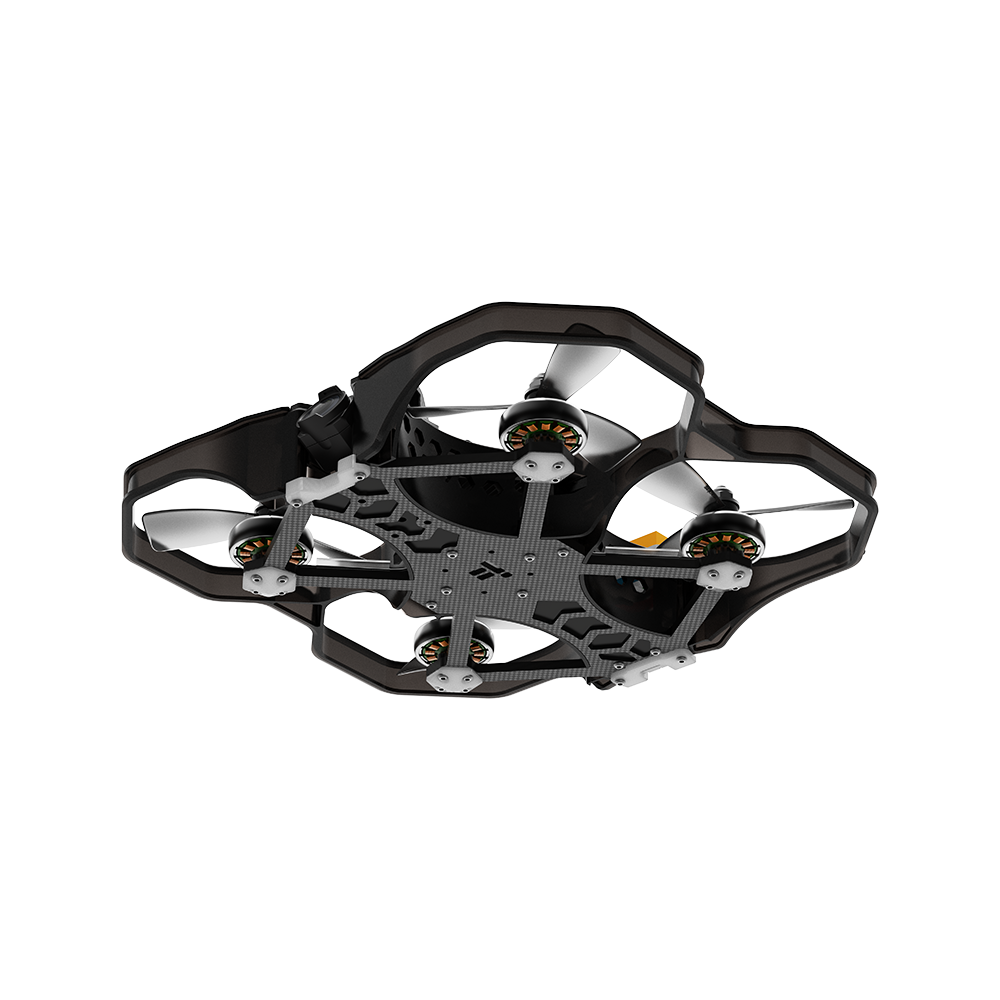

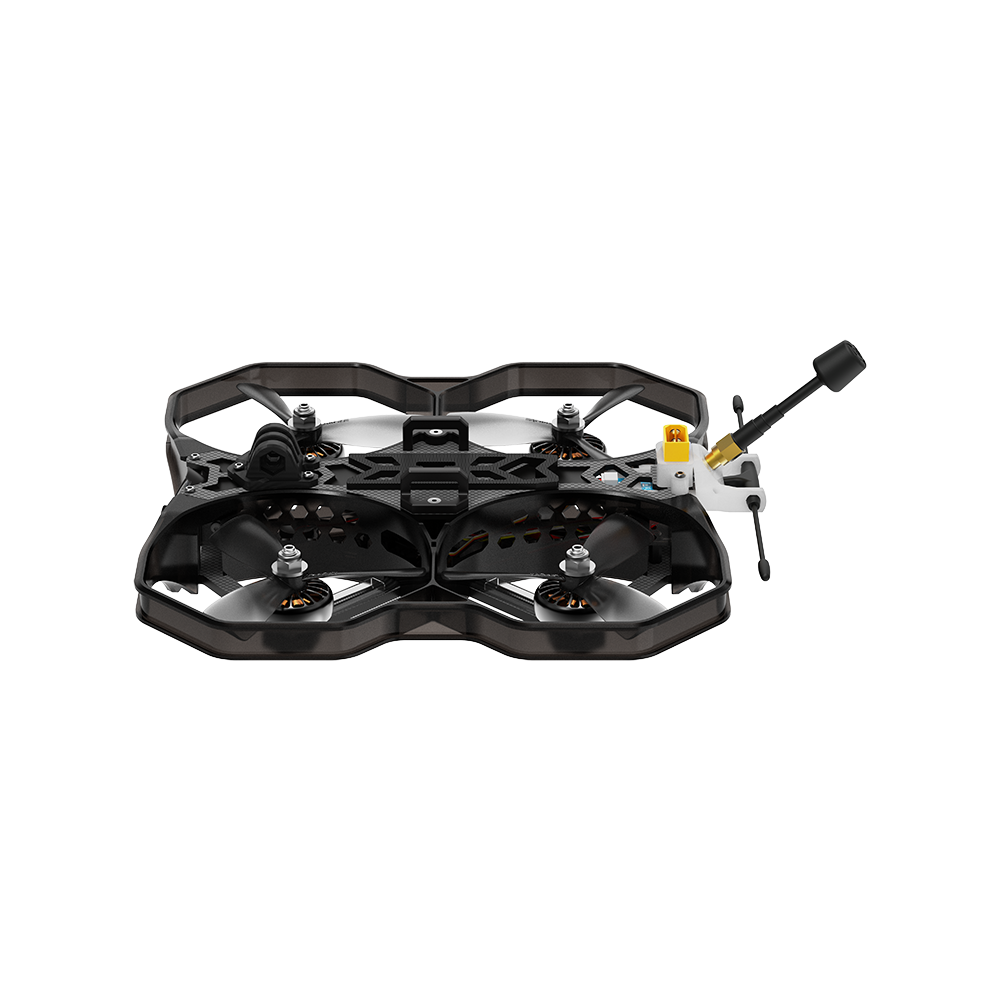

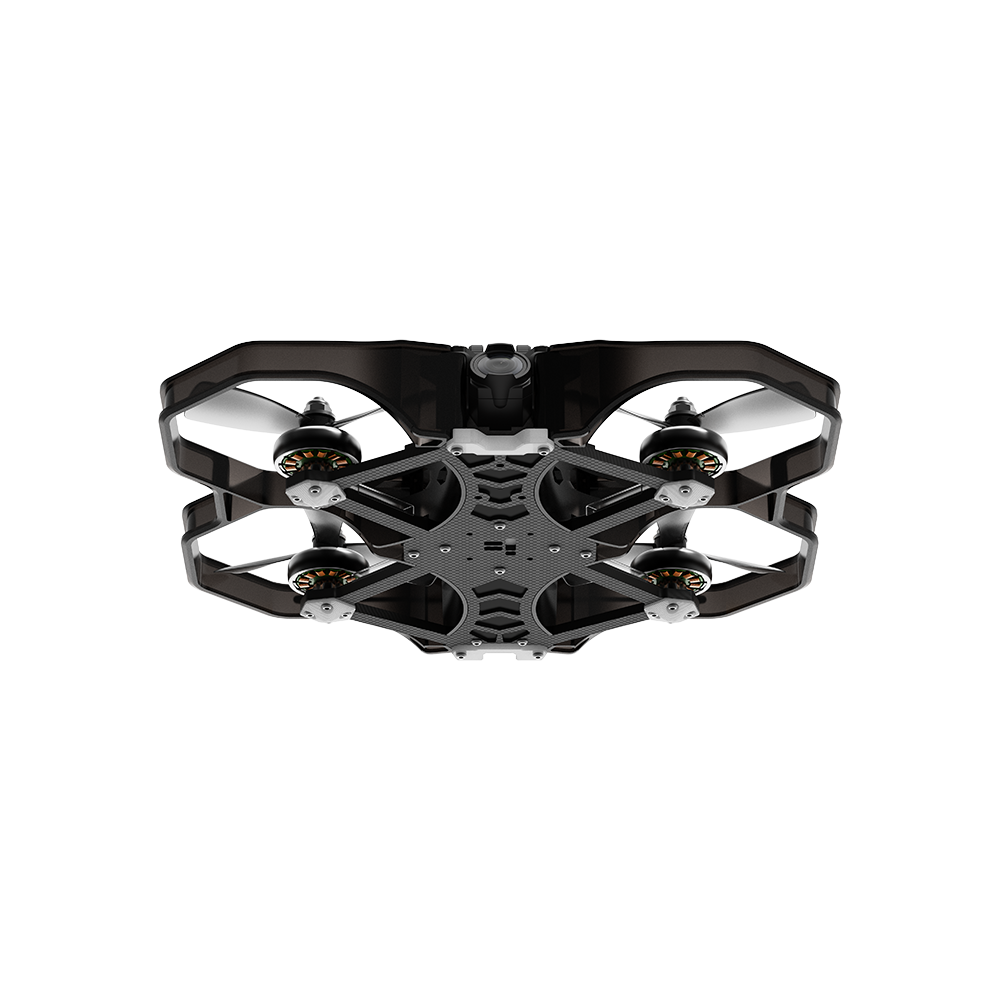

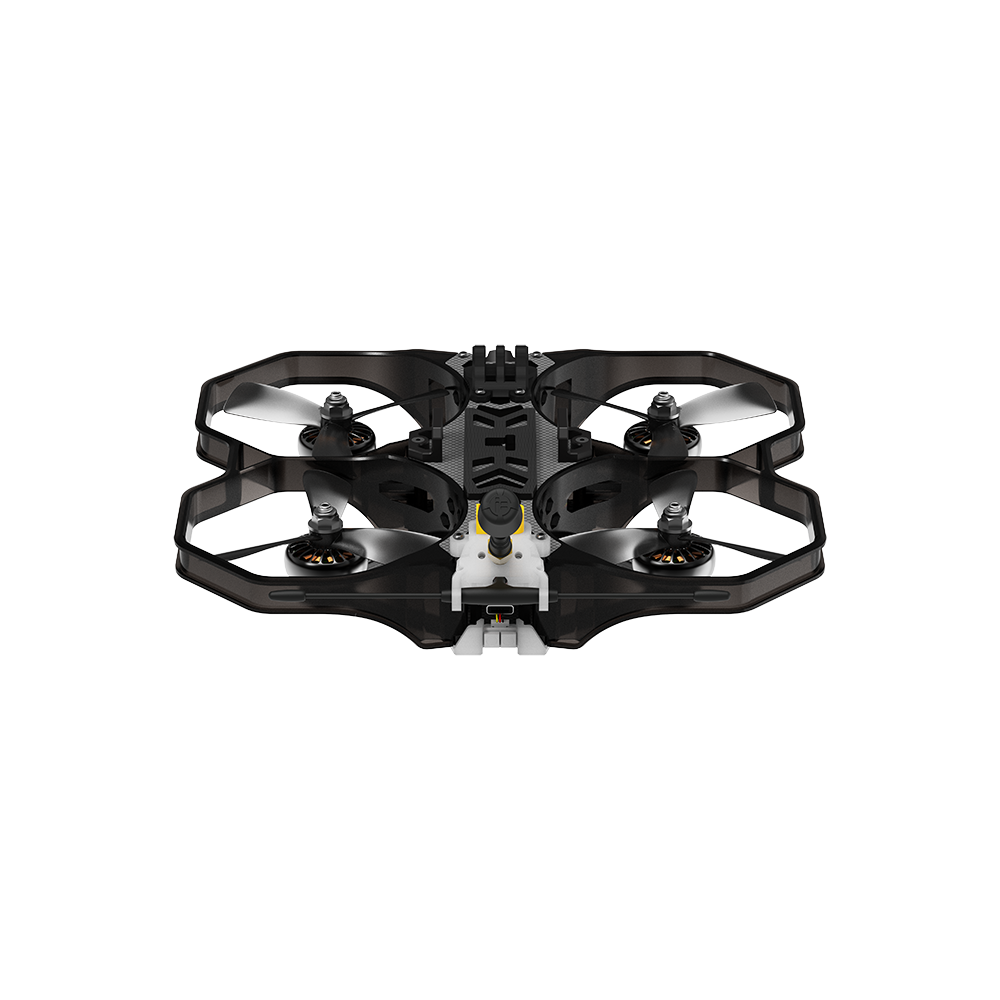

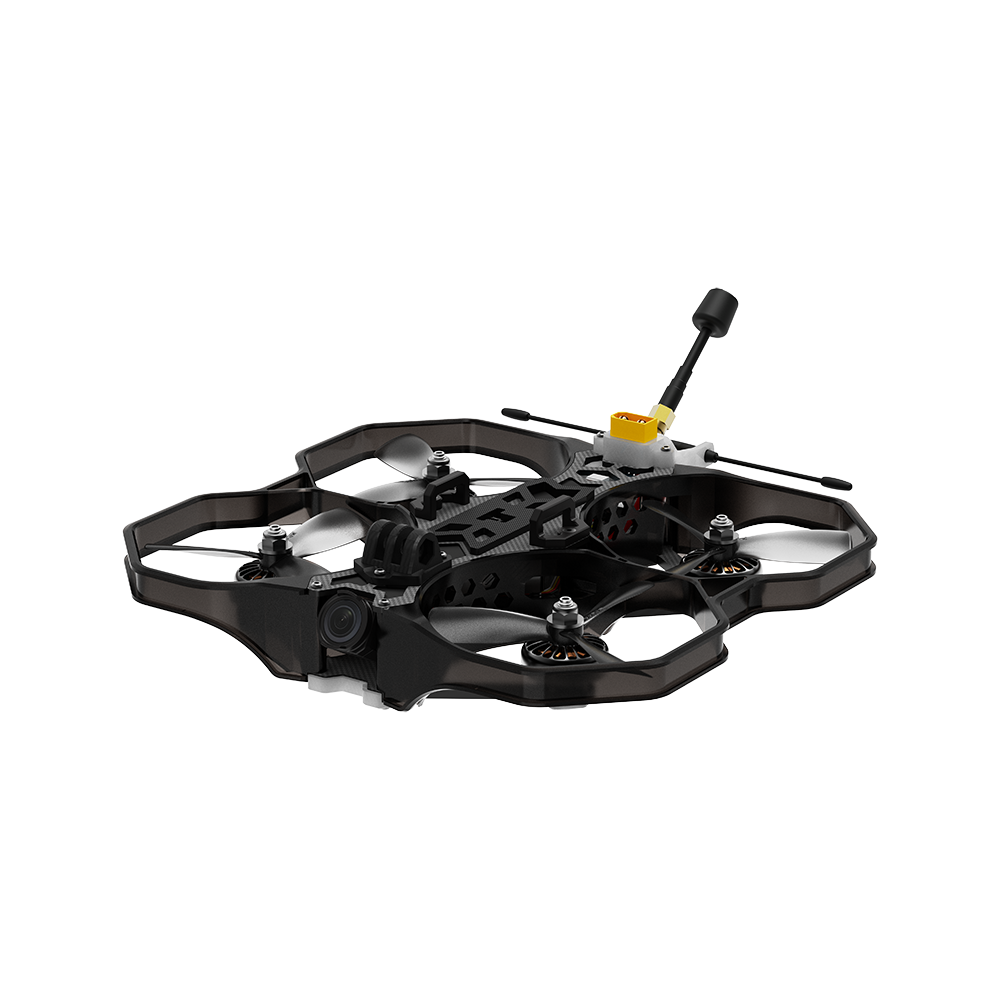

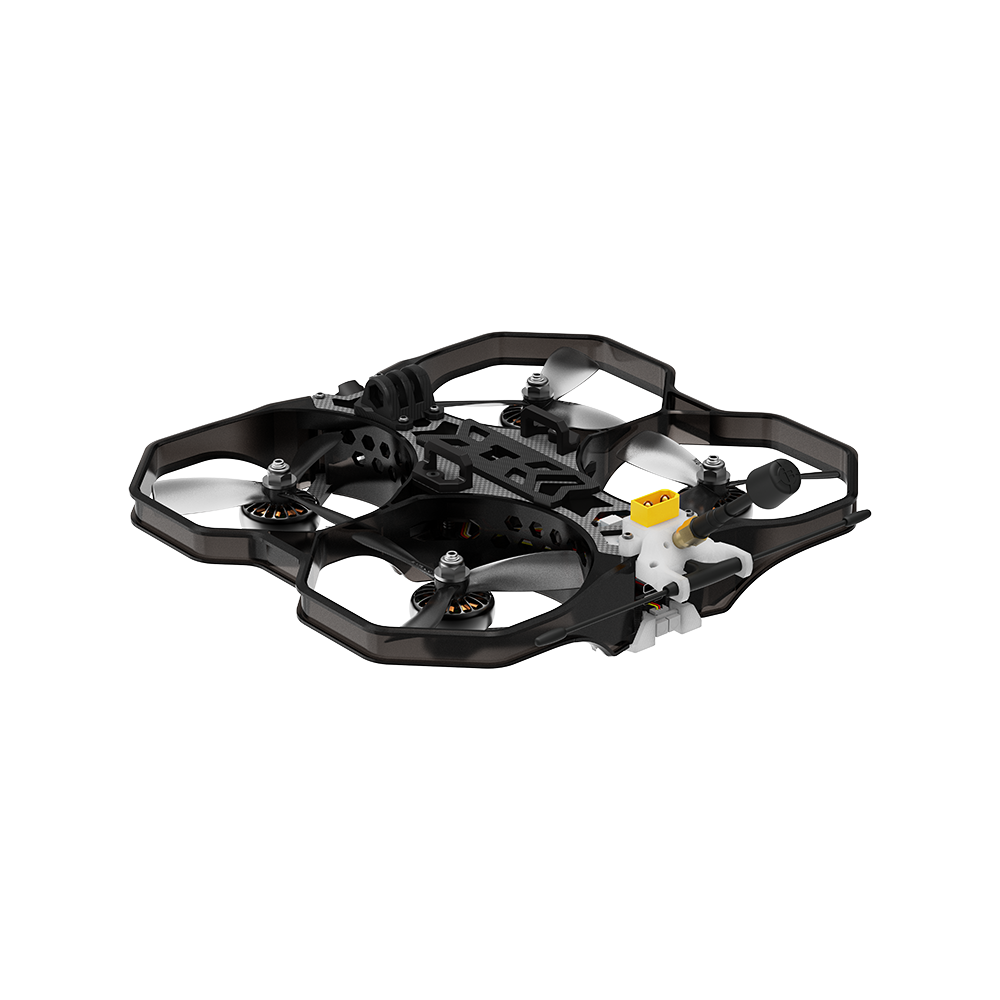

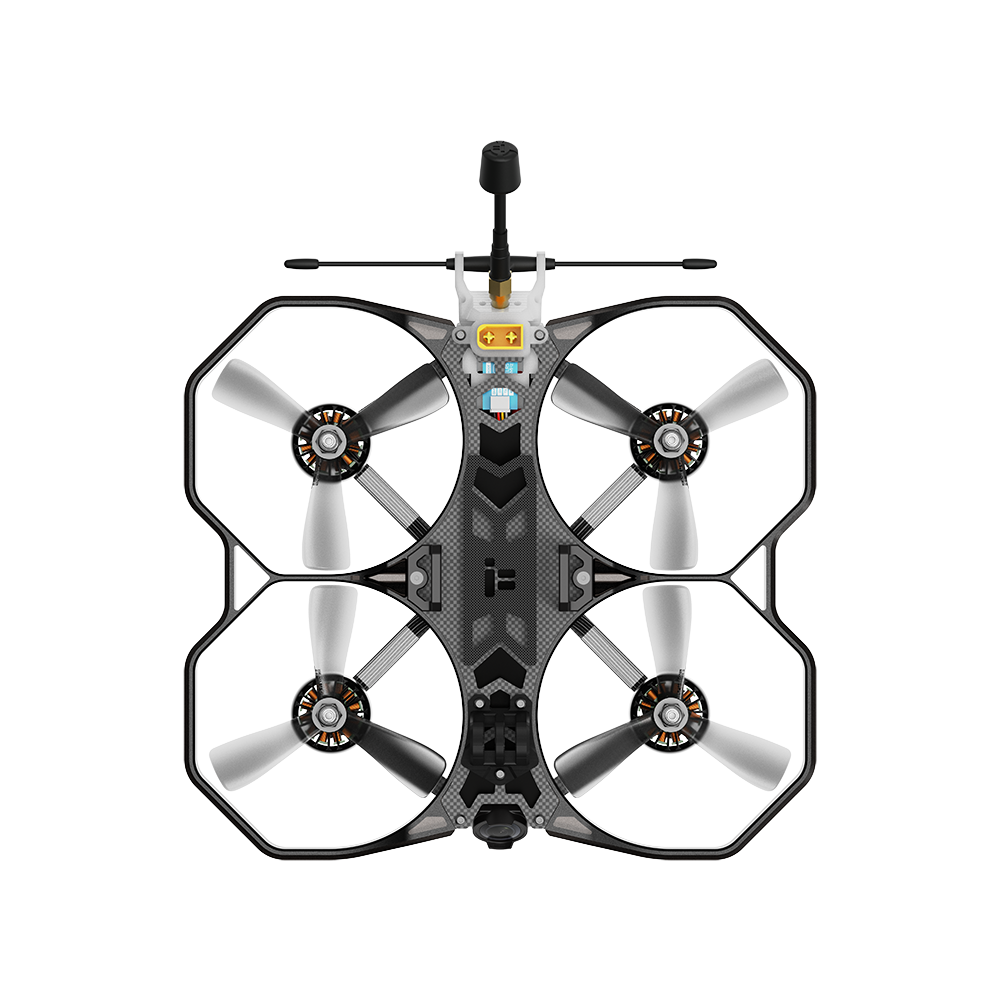

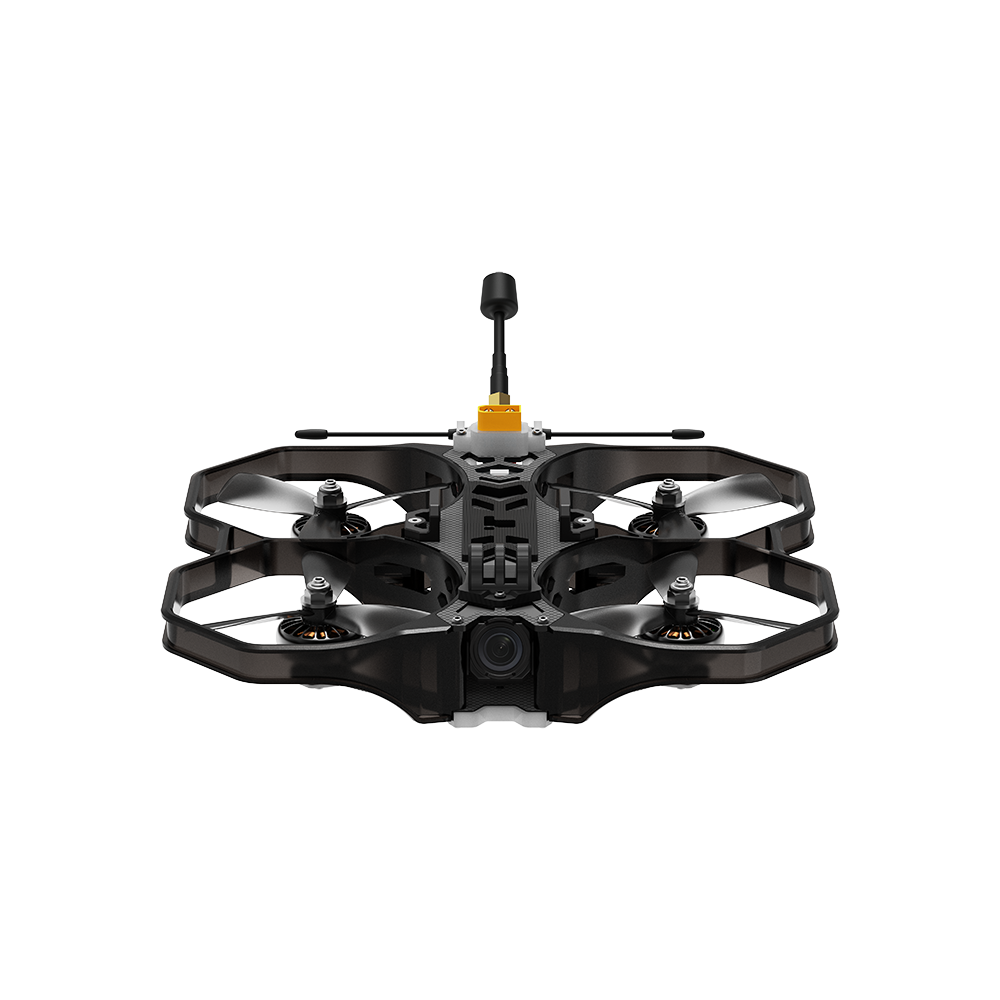

ProTek35 V1.4 O3 6S HD Product Details
Descriptions
The Protek CineWhoop offers a longer flight experience and weighs less than previous cinewhoops! The new version of ProTek35 has been released, featuring an upgraded frame compatible with the DJI O3 air unit.
iFlight increased speed and thrust by 50% compared to its 3-inch predecessor, offering more fun and performance. The ProTek35 is equipped with Butter Smooth 2205 2300KV Motors, DJI O3 air unit, BLITZ whoop F7 AIO, 55A 2-6S ESC, Nazgul 3535 propellers, and more!
Changelog
- May 8, 2024: The Albatross antenna is available in two versions, shipped randomly.
Highlights
- No Props or Frame in View: Clean, unobstructed footage for cinematic results.
- DJI O3 HD Air Unit: Low-latency digital transmission for sharp and responsive video.
- Secured Battery Plug and CNC Bracket: Easy-to-install battery straps.
- High-performance True-AIO Board: BLITZ F7 AIO 55A saves weight and space.
- T700 Quality Carbon: 40% more tensile strength compared to common 3K carbon.
- Lightweight One-Piece Frame Design: Less flexibility, more rigidity, and durability.
- Low Resonance Frame Construction: Less Jello, more cinematic footage.
Specifications
| Product Name | ProTek35 V1.4 O3 6S HD |
|---|---|
| AIO | BLITZ Whoop F7 AIO |
| Video Transmission | DJI O3 Air Unit |
| Frame | 151mm Wheelbase |
| Motor | XING 2205 2300KV Motors |
| Prop | Nazgul 3535 Propellers |
| Weight | 363 g (Without Battery) |
| Dimensions (L×W×H) | 217×194×32.5 mm |
| Max Speed | 140 km/h |
| Maximum Takeoff Altitude | 5000 m |
| Max Hover Time | Approx. 6 mins (With 1400mAh Battery, No Load) |
| Max Wind Speed Resistance | Level 4 |
| Operating Temperature Range | -10° to 40° C (14° to 104° F) |
| Antennas | Single Antenna |
| GNSS | N/A |
Video Transmission
| Product Name | DJI O3 Air Unit |
|---|---|
| Weight | Approx. 36.4 grams (Headband Included) |
| Communication Bandwidth | Max 40 MHz |
| FOV (Single Screen) | 155° |
| Communication Frequency | 2.400-2.4835 GHz (RX Only) / 5.725-5.850 GHz (RX and TX) |
| End-to-End Latency | With DJI FPV Goggles V2: – 810p/120fps Video Transmission Quality: Latency < 28 ms – 810p/60fps Video Transmission Quality: Latency < 40 ms With DJI Goggles 2: – 1080p/100fps Video Transmission Quality: Latency as low as 30 ms – 1080p/60fps Video Transmission Quality: Latency as low as 40 ms |
| Max Video Transmission Bitrate | 50 Mbps |
| Max Video Transmission Range | 10 km (FCC), 2 km (CE), 6 km (SRRC) |
| Operating Temperature Range | -10º to 40º C (14° to 104° F) |
| Power Input | 7.4-26.4 V |
| Audio Transmission | N/A |
Packing List
| Item | Quantity |
|---|---|
| ProTek35 V1.4 O3 6S HD BNF | 1 |
| 3.5 inch Prop (2 Pairs) | 1 |
| Battery Pad | 2 |
| Battery Strap | 1 |
Pre-tuned & Pre-setup
No need to worry about tuning; we have already done that for you! A basic PID and filter tuning was applied for an excellent flight experience!
To restore lost tunes or updates, please check our linked article on „Firmware/Factory Dumps“.
Angle-Mode (self-balancing level mode) is enabled by default to ensure your first flight is safe and controlled.
For instructions on how to disable Angle-Mode and activate Acro-Mode, please check our linked article on „How to disable Angle-Mode, activate Acro-Mode“.
