Nazgul DC5 ECO V1.1 6S O3 HD Product Details
Description

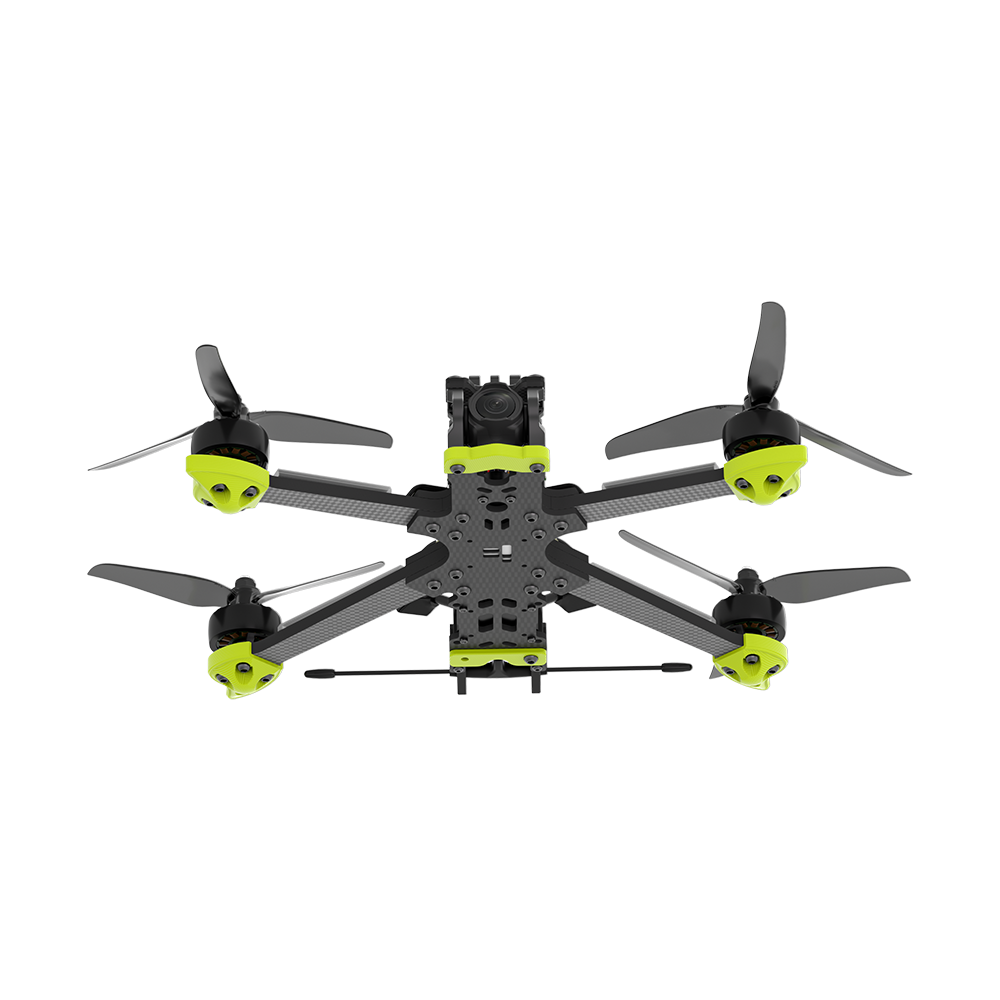

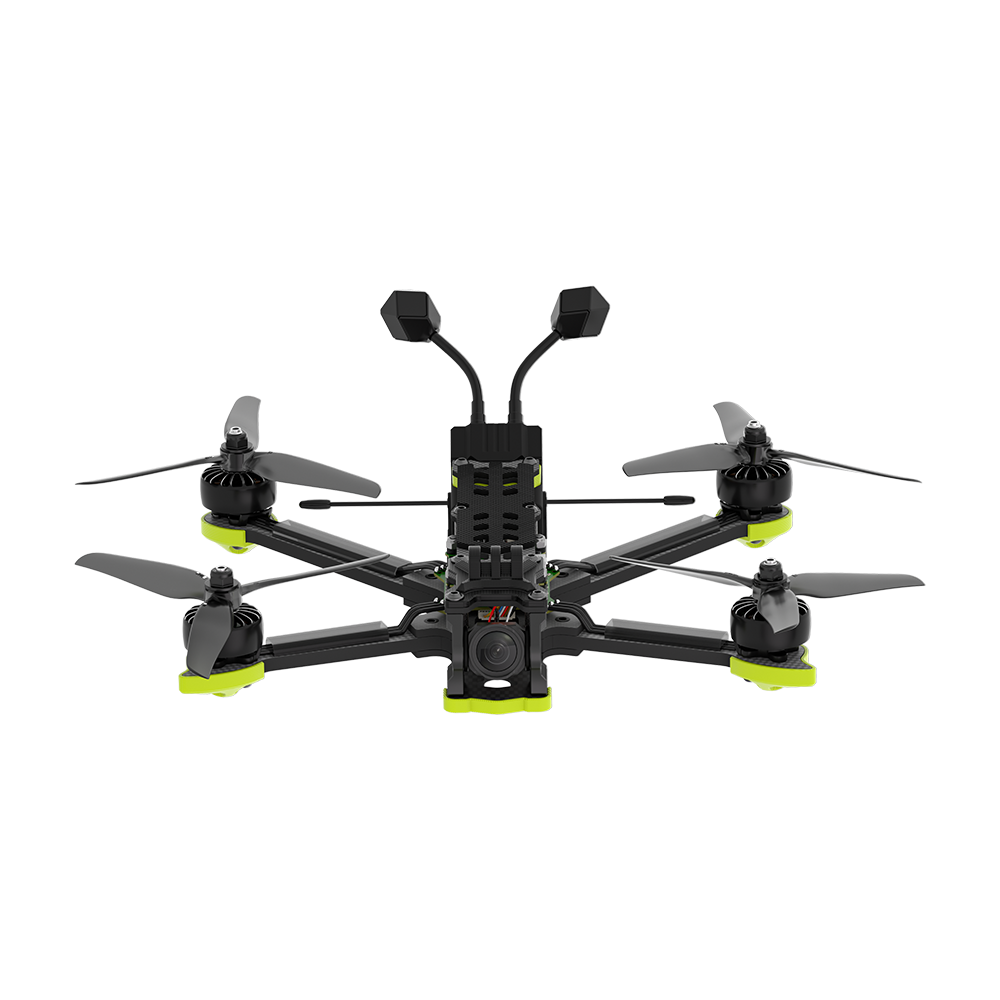

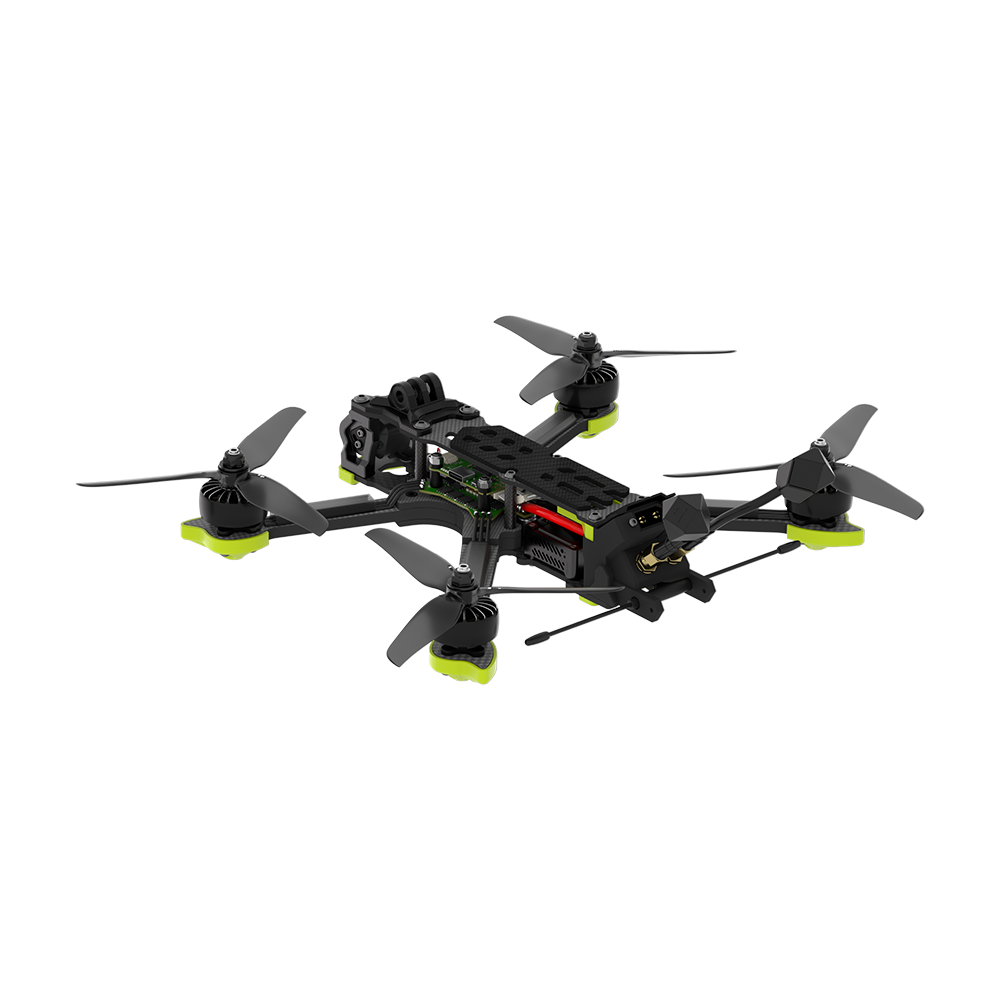

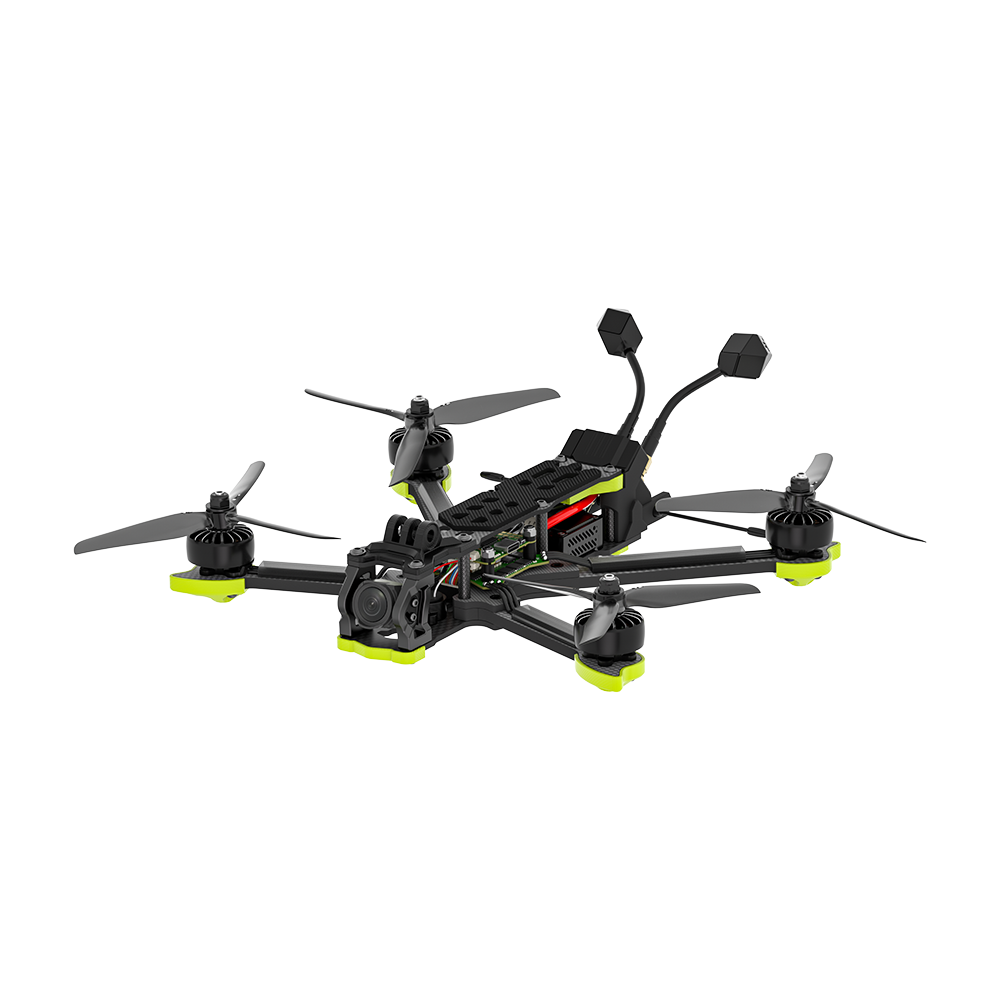

Introducing the Nazgul DC5 ECO – Redefining performance and value in a 5-inch standard freestyle drone. Equipped with the DJI Newest O3 Digital HD System, its unique design ensures no prop in view, allowing direct use of the O3 air unit’s video. With the ATF435 flight controller and BLITZ E55S 2-6S 55A ESC, it delivers unparalleled performance and reliability. The carbon fiber frame with aluminum camera mount is lightweight yet durable, while the included GoPro mount offers versatility to capture your epic freestyle flights. Elevate your flying experience to new heights with the Nazgul DC5 ECO.
Changelog
- July 19, 2024: Battery Plug mount updated to a fixed form. The drone upgraded to V1.1.
Highlights

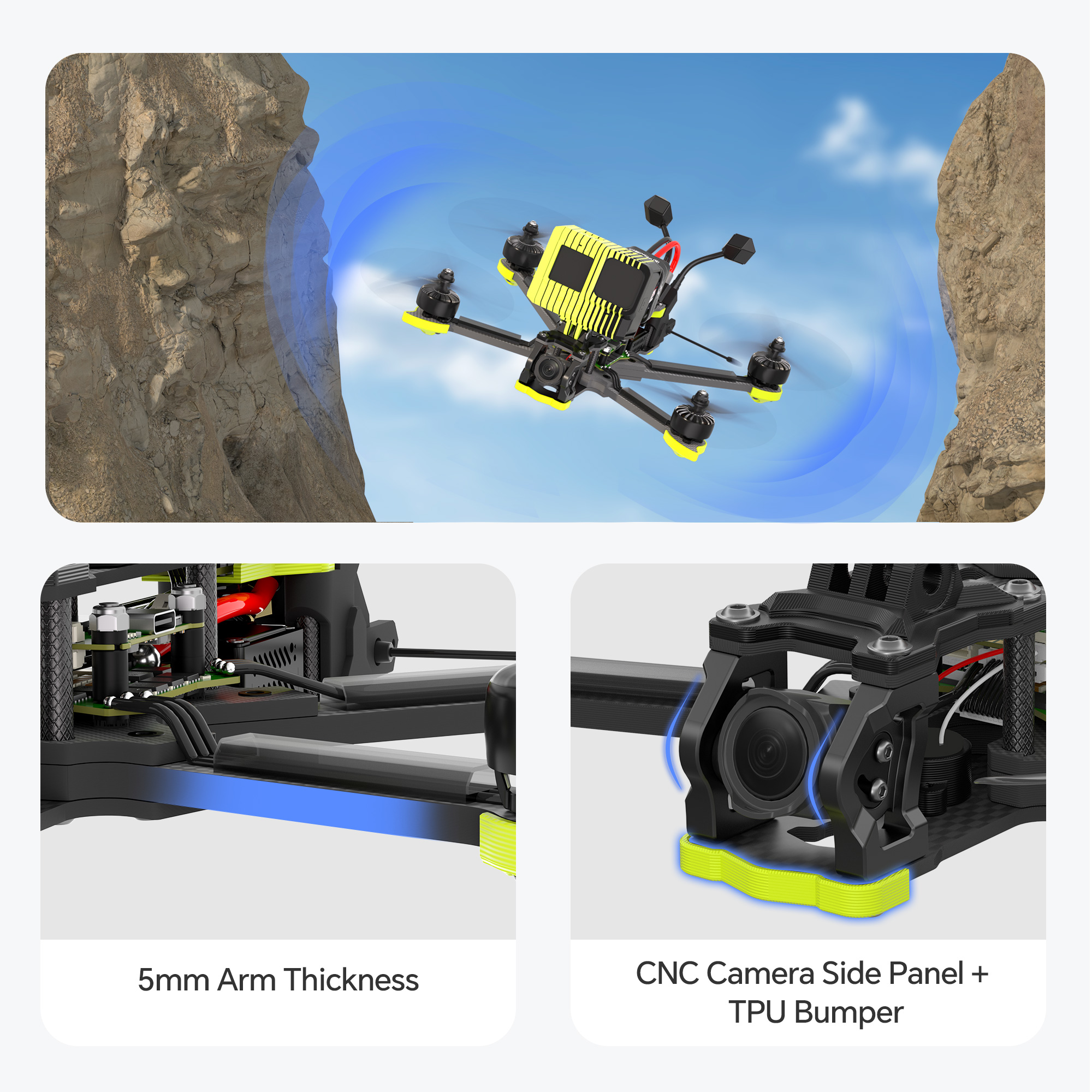

- Lightweight and Durable: A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
- Anti-Spark Filter: Plugging in a battery can create a loud spark at the connector caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We’ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes that can protect your electronics from damage.
- DJI O3 HD Air Unit Low-Latency Digital Transmission: Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source: DJI)
- 4K Stabilized Video with 155° Ultra-Wide Angle: Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source: DJI)
- Enhance User Experience and Streamline Maintenance: Equipped with a built-in buzzer and receiver mount, this feature makes maintenance and adjustments to the receiver convenient.
- DIY Customized Space: Create your own personalized space with the flexibility of standard 20×20 and 30.5×30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available on the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.
Specifications
| Product Name | Nazgul DC5 ECO V1.1 6S O3 HD |
|---|---|
| Geometry | DC (DeadCat) |
| FC | BLITZ ATF435 Flight Controller |
| ESC | BLITZ E55S 55A 4-IN-1 ESC |
| Video Transmission | DJI O3 Air Unit |
| Frame | 240mm Wheelbase |
| Motor | XING-E Pro 2207 1800KV Motors |
| Prop | Nazgul F5 Propellers |
| Weight | 450g |
| Takeoff Weight | Approx. 675g (With 6S 1400mAh Battery) |
| Dimensions (L×W×H) | 193×144×34 mm |
| Max Speed | 190 km/h (Manual Mode) |
| Maximum Takeoff Altitude | 7000 m |
| Max Hover Time | Approx. 7.5 mins (No Load with 6S 1400mAh) |
| Max Wind Speed Resistance | Level 7 |
| Operating Temperature Range | -10° to 40° C (14° to 104° F) |
| Antennas | Dual Antenna |
| GNSS | GPS+SBAS+Galileo+QZSS+Glonass (Optional) |
Video Transmission
| Product Name | DJI O3 Air Unit |
|---|---|
| Communication Bandwidth | Max 40 MHz |
| FOV (Single Screen) | 155° |
| Communication Frequency | 2.400-2.4835 GHz (RX Only) / 5.725-5.850 GHz (RX and TX) |
| End-to-End Latency | With DJI FPV Goggles V2: – 810p/120fps Video Transmission Quality: Latency < 28 ms – 810p/60fps Video Transmission Quality: Latency < 40 ms With DJI Goggles 2: – 1080p/100fps Video Transmission Quality: Latency as low as 30 ms – 1080p/60fps Video Transmission Quality: Latency as low as 40 ms |
| Max Video Transmission Bitrate | 50 Mbps |
| Max Video Transmission Range | 10 km (FCC), 2 km (CE), 6 km (SRRC) |
| Operating Temperature Range | -10º to 40º C (14° to 104° F) |
| Power Input | 7.4-26.4 V |
| Audio Transmission | N/A |
Packing List
| Item | Quantity |
|---|---|
| Nazgul DC5 ECO V1.1 6S O3 HD BNF | 1 |
| Antennas | 2 |
| Battery Pads | 2 |
| Prop (Pairs) | 2 |
Important
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
