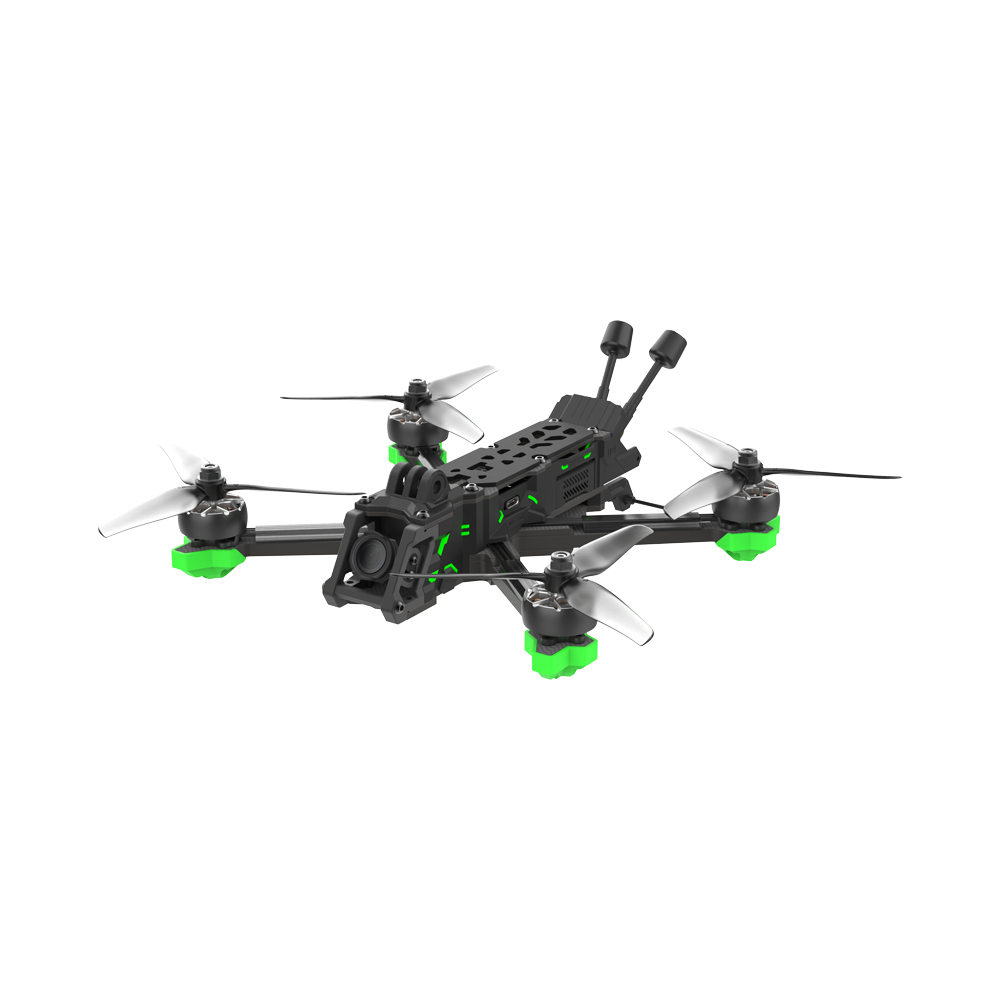

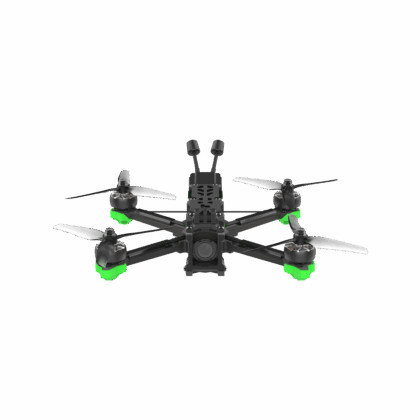

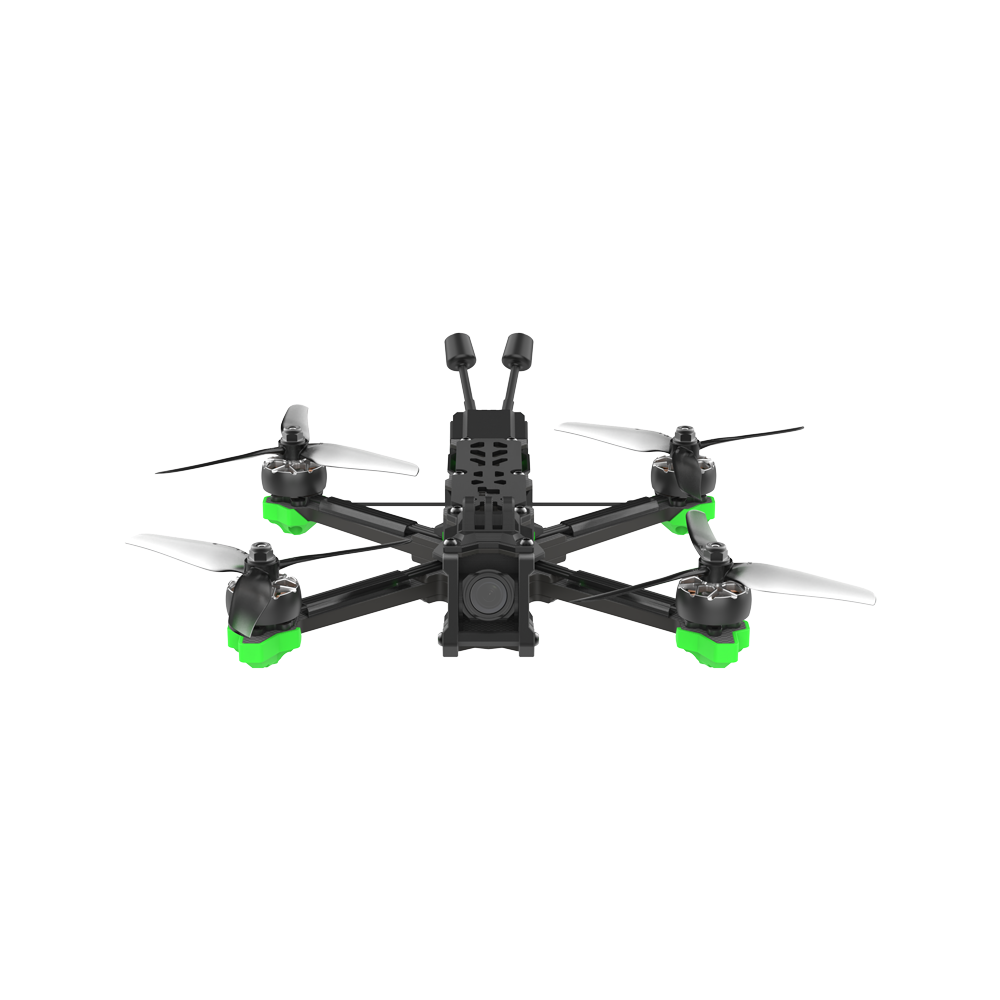

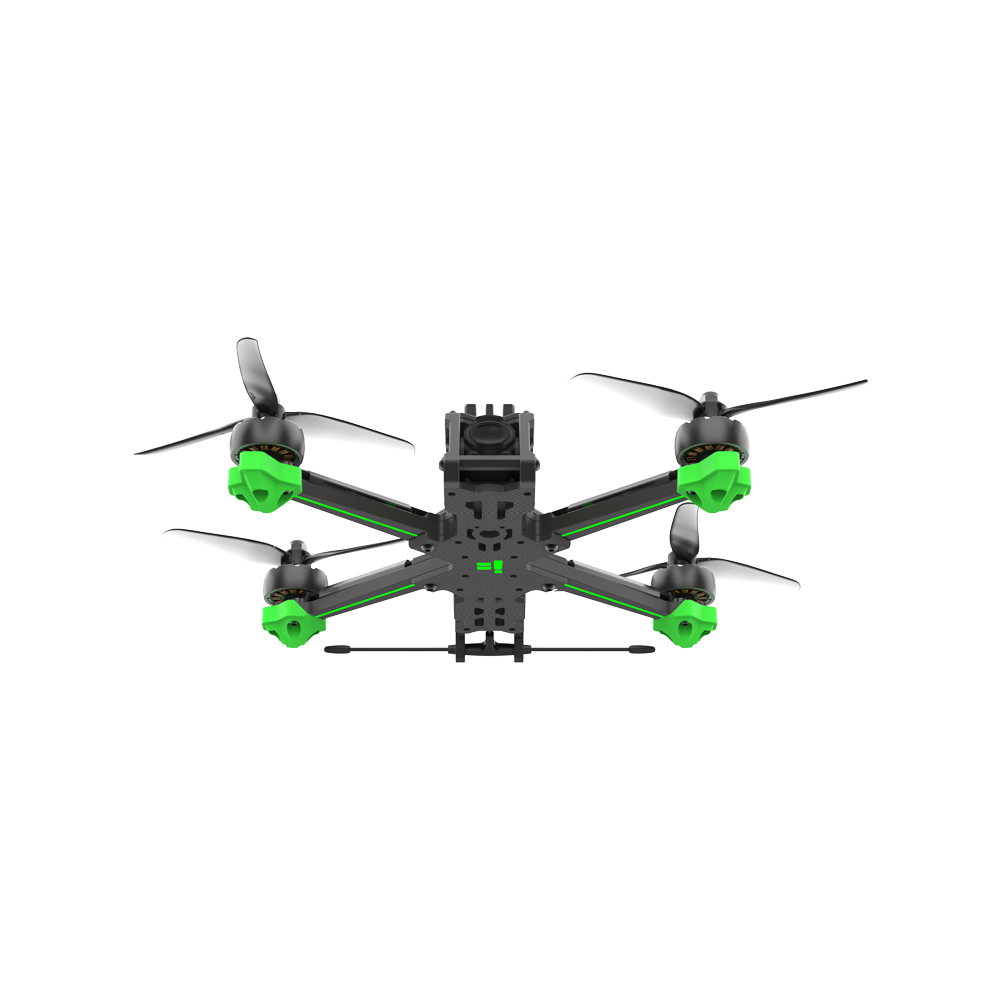

Evoque F5 V2 Drone – Product Description
Overview
Experience the pinnacle of FPV visuals and performance with our latest pre-built drone. Designed for both ease of use and enthusiast-level durability, the Evoque F5 V2 represents a new standard in Bind-and-Fly drones. Discover the iFlight experience!
Highlights
Smooth and Powerful XING2 Motors
- Durable Unibell Technology: One-piece bell construction.
- Strong Titanium Alloy Shaft: Reinforced bell joint for crash resistance.
- Crash Resistant 7075 Aluminium Bell: Ensures longevity.
- Smooth and Long-Lasting Japanese NSK Bearings
- Center Slotted N52H Curved Arc Magnets
- XING O-ring Bushing Gap Protection
Latest Nazgul Frame for Maximum Protection
- Contamination Reduction: Keeps electronics free from dirt and moisture.
- Strategic Airflow: Cools components without compromising weight or performance.
- Illuminated Side Panels: Enhanced visibility and protection.
- 360-Degree TPU Protective Parts
DJI O3 HD Air Unit Low-Latency Digital Transmission
- 10 km Video Transmission Range: Clear and smooth real-time view, even with interference (Source: DJI).
- 4K Stabilized Video with 155° Ultra-Wide Angle: High-grade imaging performance for exceptional visuals (Source: DJI).
Secured Battery Plug with Anti-Spark Filter
- Protective Circuit: Extends XT60 connector lifespan and prevents voltage/current spikes to protect electronics.
Specially Designed Heatsink for DJI O3 HD Air Unit
- Custom CNC Heatsink: Enhances cooling performance and prevents overheating.
Changelog
- December 13, 2022: New silicone inserts replace TPU ones, securing the O3 cam in side panels.
- October 20, 2023: Flight control Blackbox flash capacity reduced from 16MB to 8MB.
- May 8, 2024: Albatross antenna available in two versions, shipped randomly.
Specifications
| Feature |
Details |
| Product Name |
Evoque F5 V2 |
| Flight Controller |
BLITZ Mini F722 |
| ESC |
BLITZ Mini E55 4-IN-1 2-6S 55A |
| Video Transmission |
DJI O3 Air Unit |
| Frame Wheelbase |
225mm (Squashed X) / 223 mm (DeadCat) |
| Motor |
XING2 2207 |
| Propeller |
Nazgul F5 |
| Weight |
433g/436g |
| Takeoff Weight |
Approx. 693 g/695g (with 1400mAh battery) |
| Dimensions (L×W×H) |
172×145×36±2mm (Squashed X) / 190×136×36±2mm (DeadCat) |
| Diagonal Distance |
225 mm |
| Max Speed |
190 km/h (Manual Mode) |
| Maximum Takeoff Altitude |
5000 m |
| Max Hover Time |
Approx. 8 mins |
| Max Flight Distance |
5 km |
| Max Wind Speed Resistance |
Level 7 |
| Operating Temperature Range |
-10° to 40° C (14° to 104° F) |
| Antennas |
Dual |
|
|
Video Transmission
| Feature |
Details |
| Product Name |
DJI O3 Air Unit |
| Weight |
Approx. 36.4 grams (headband included) |
| Communication Bandwidth |
Max 40 MHz |
| FOV (Single Screen) |
155° |
| Communication Frequency |
2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX) |
| End-to-End Latency |
With DJI FPV Goggles V2: < 28 ms (810p/120fps), < 40 ms (810p/60fps); With DJI Goggles 2: < 30 ms (1080p/100fps), < 40 ms (1080p/60fps) |
| Max Video Transmission Bitrate |
50 Mbps |
| Max Video Transmission Range |
10 km (FCC), 2 km (CE), 6 km (SRRC) |
| Operating Temperature Range |
-10º to 40º C (14° to 104° F) |
| Power Input |
7.4-26.4 V |
| Audio Transmission |
N/A |
Packing List
- 1 x Evoque F5 6S HD BNF
- 2 x Antennas
- 1 x Battery Pad
- 2 x Propellers (Pairs)
- 2 x Battery Straps
