Beschreibung

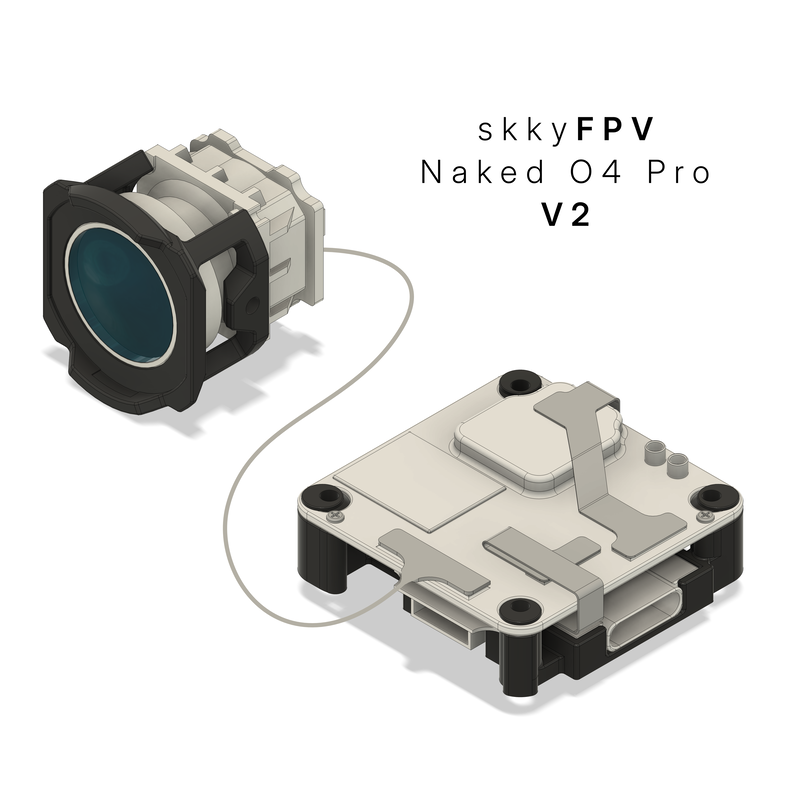

skky Naked O4 Pro Kit
Upgrade your O3 frame with a DJI O4 Pro Air Unit and save weight with the skky Naked O4 Pro Kit.
Highlights

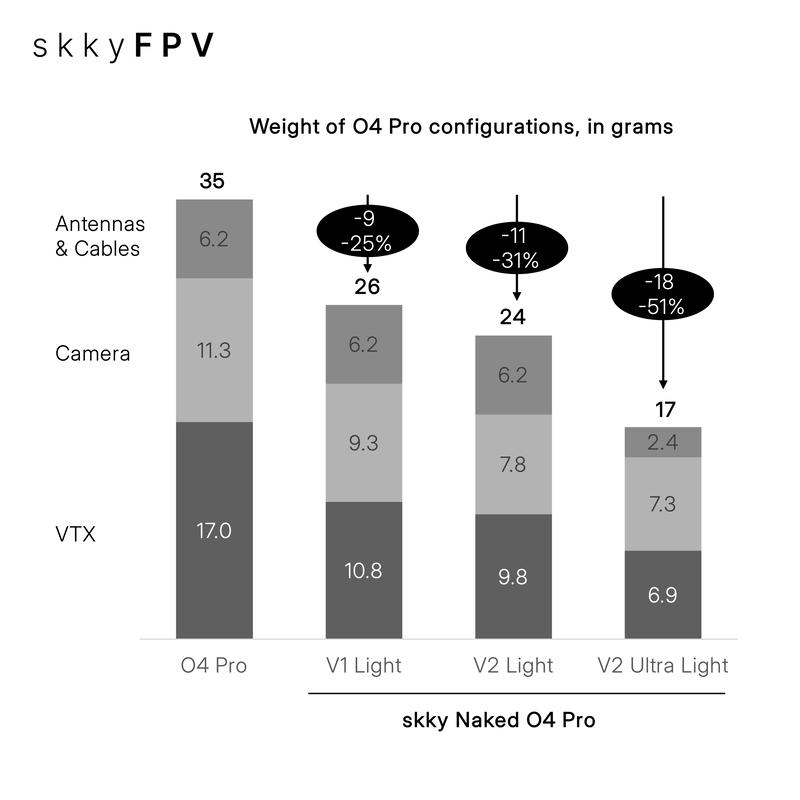

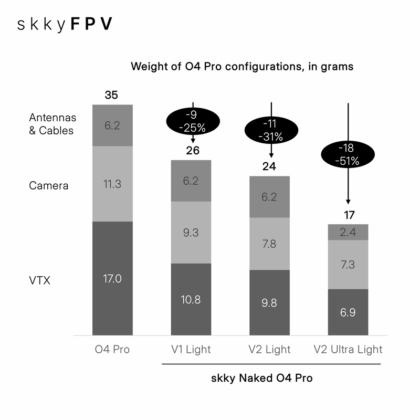

- Save 9-16g (19-26g weight for the naked O4 Pro vs. 35g of standard O4 Pro)
- Fully compatible with O3 frames (same 20mm camera width/height and mounting holes as O3)
- No additional hardware required (reuse O4 Pro screws plus standard M2x10/14 screws)
- ND Filter support (O4 Pro/Avata 2 and Flywoo GoPro)

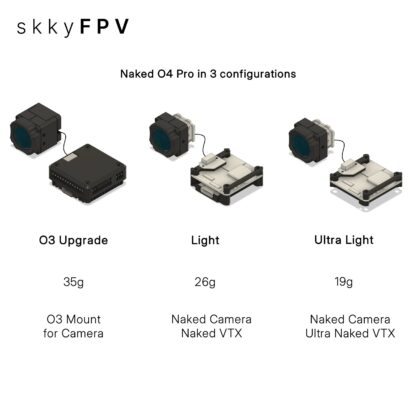

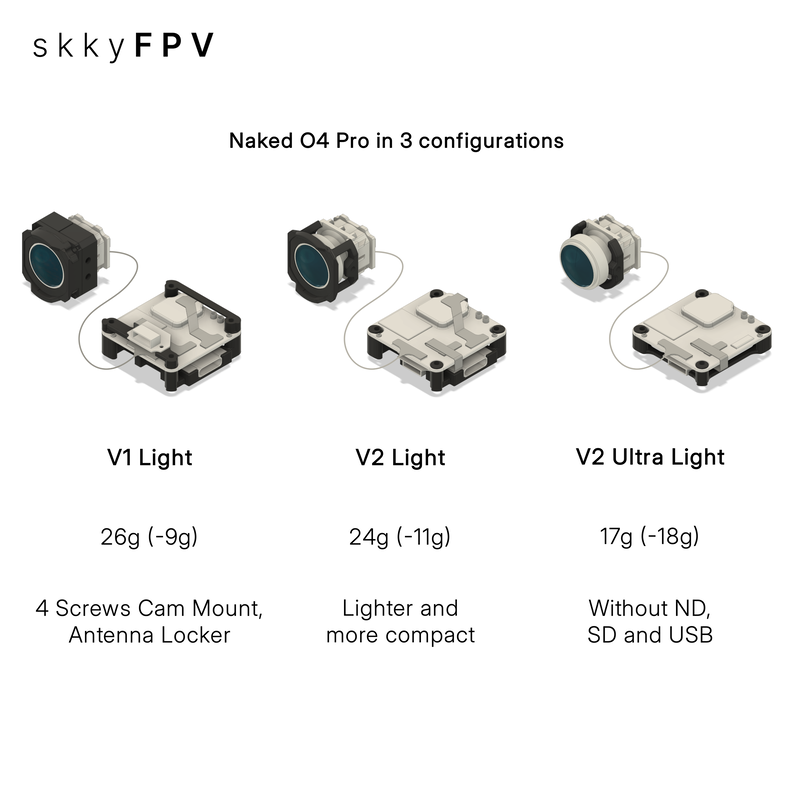

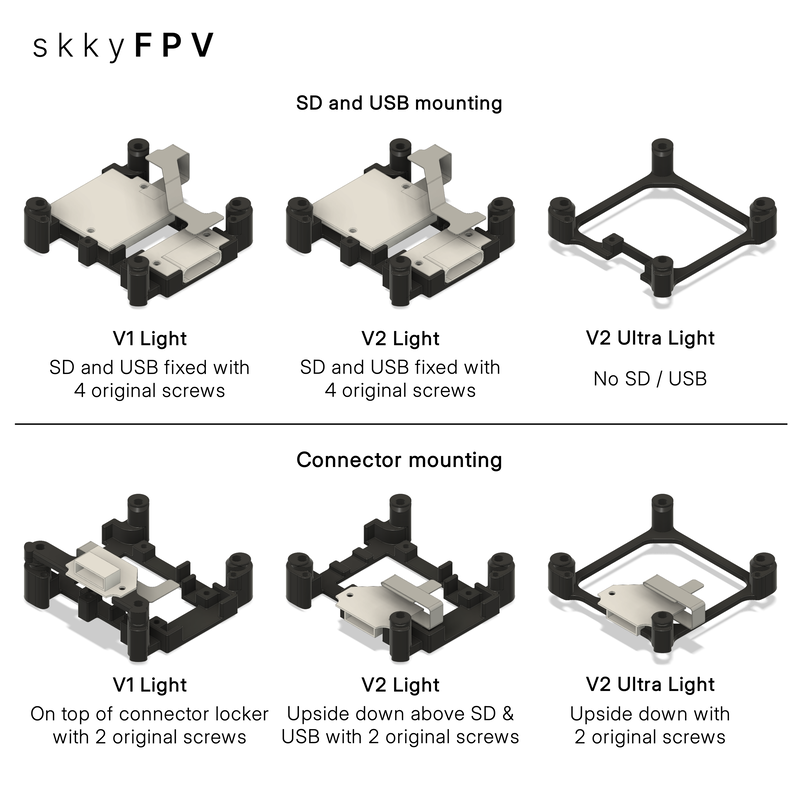

Modular Design – 3 Different Configurations

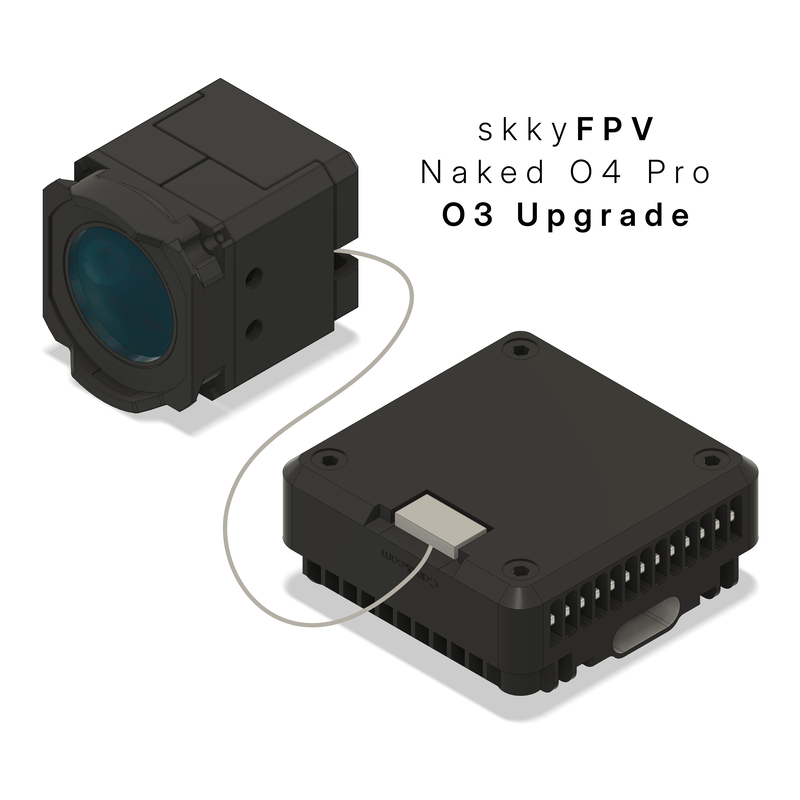

- O3 Upgrade: Mount the O4 Pro in an O3 frame and use the standard O3 camera mounting.

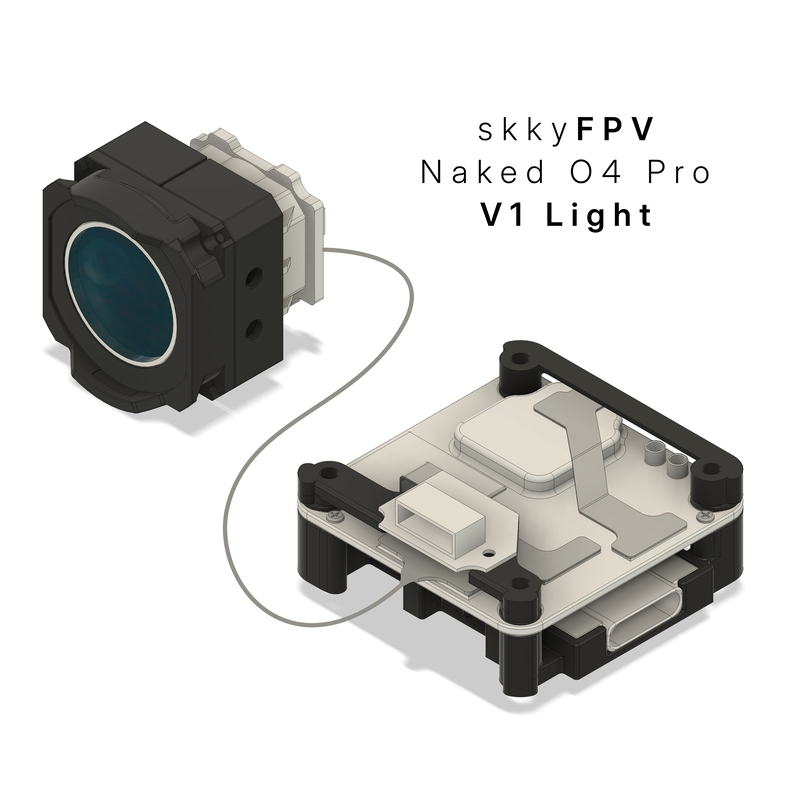

- Light: Naked Camera and VTX.

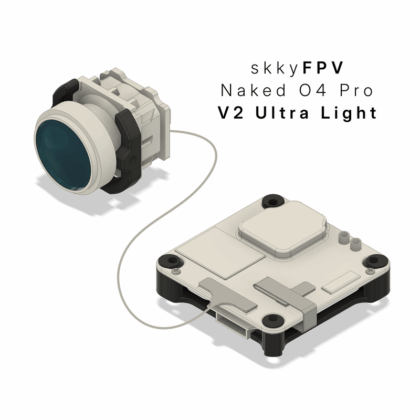

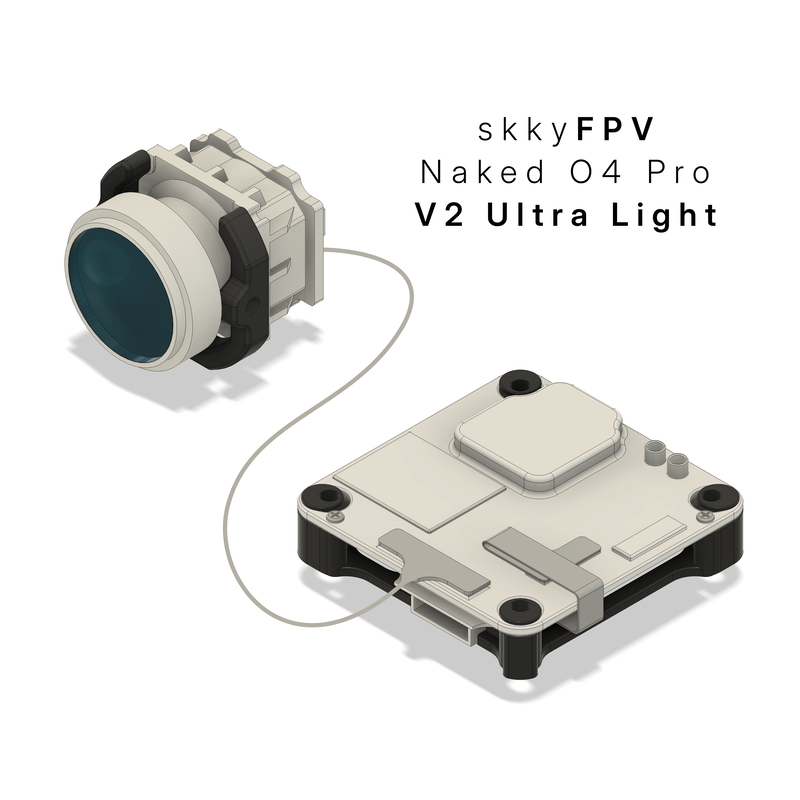

- Ultra Light: Naked without USB / SD-Card.
Kit Includes

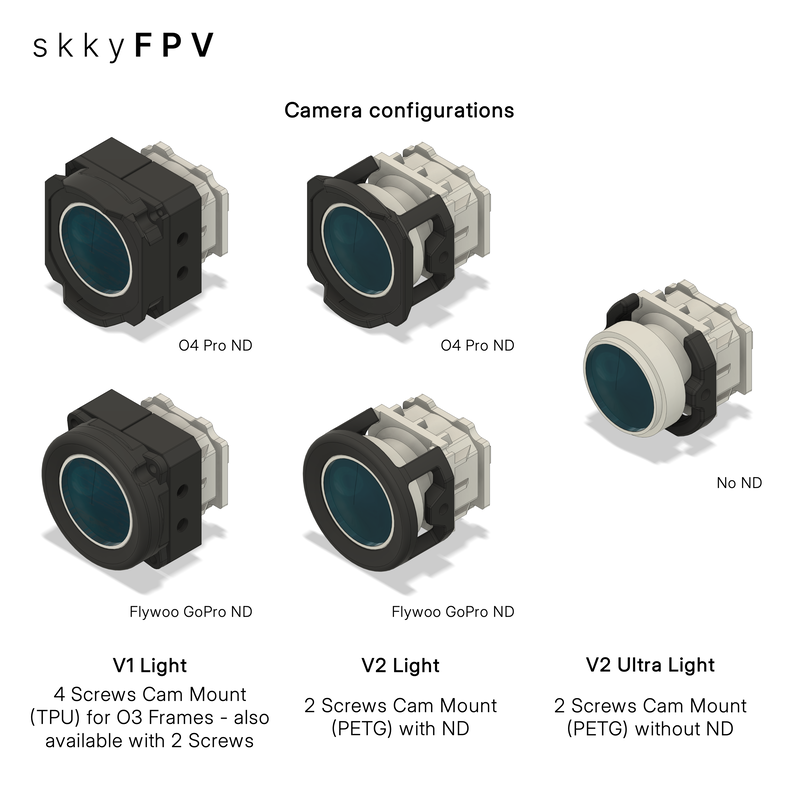

- Camera Mount O3 Upgrade 2 Screws (TPU)
- Camera Mount O3 Upgrade 4 Screws (TPU)
- Camera Mount O3 Upgrade Angled (TPU)
- Camera Back Cover (TPU)
- Camera Back Cover Angled (TPU)
- Camera Mount Light 2 Screws (TPU)
- Camera Mount Light 4 Screws (TPU)
- Camera ND Filter O4 Pro (PETG)
- Camera ND Filter Flywoo GoPro (PETG)
- Camera M2 Nut (PETG)
- VTX Mount Light (PETG)
- VTX Mount Ultra Light (PETG)

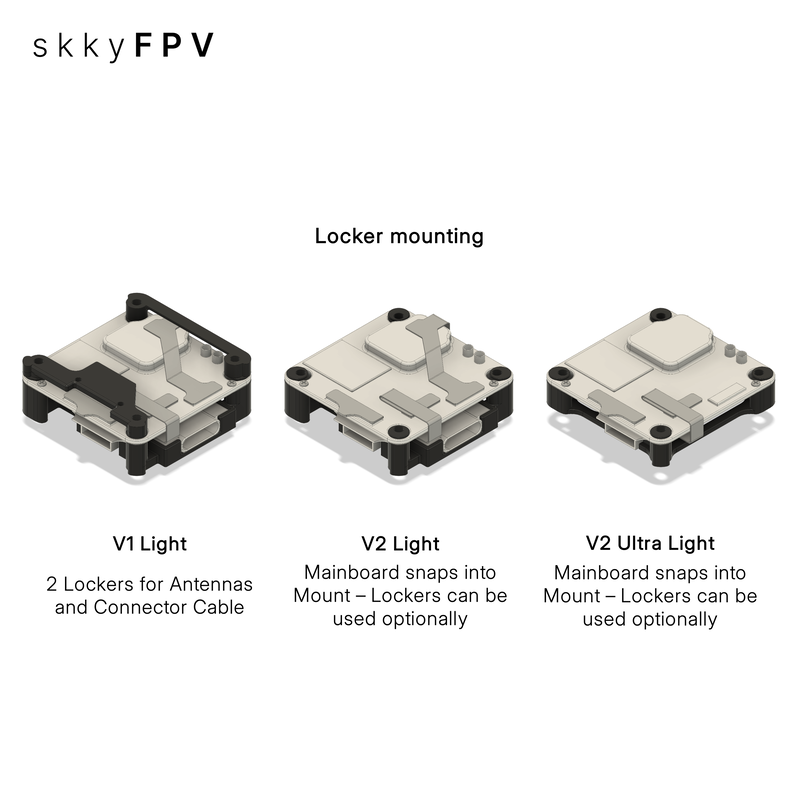

- VTX Connector Locker (PETG)
- VTX Antenna Locker (PETG)

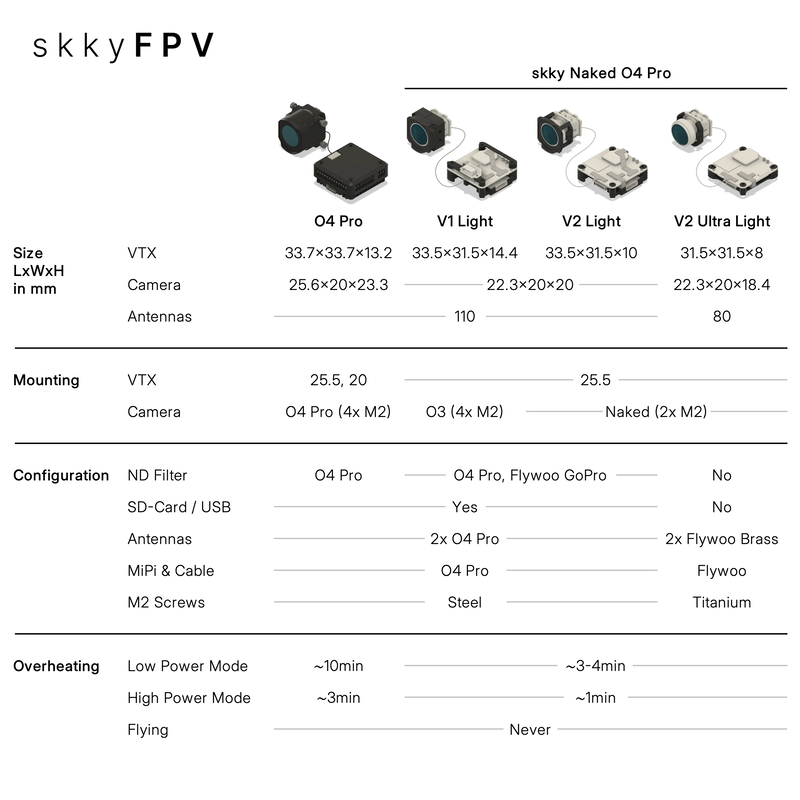

Compatibility

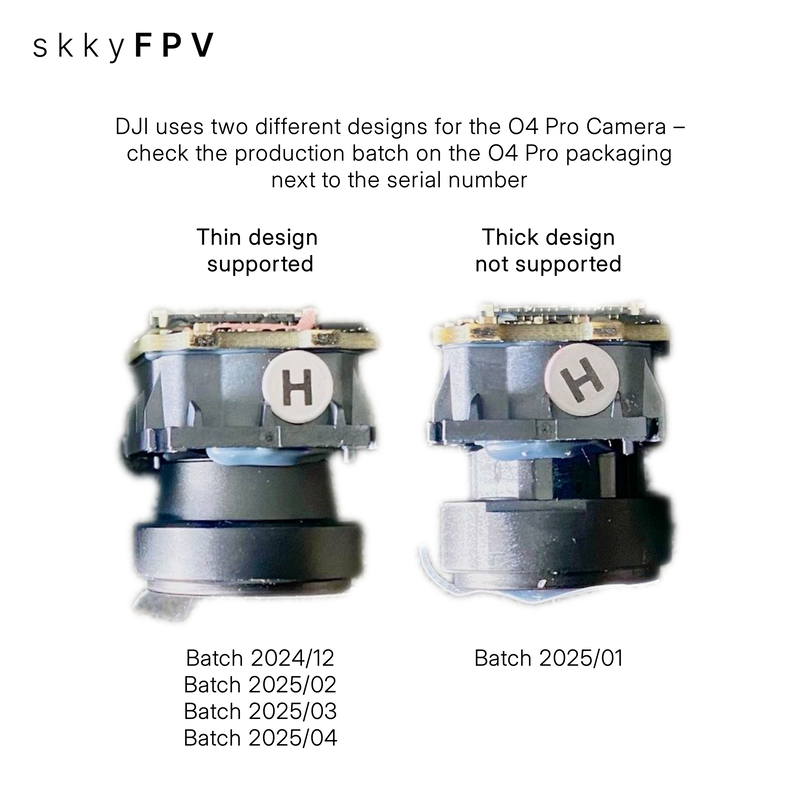

- Air Unit: DJI O4 Pro Air Unit (standard/light O4 Air Unit not supported)
- Frame: Most frames supporting O3 (O3 Camera Mounting, 25.5×25.5 Stack, 14mm high VTX)
Assembly video available on www.skkyfpv.com and on YouTube.
Visit www.skkyfpv.com for more information including the build guide and support. Join our community on Discord and Instagram.
