Specifications

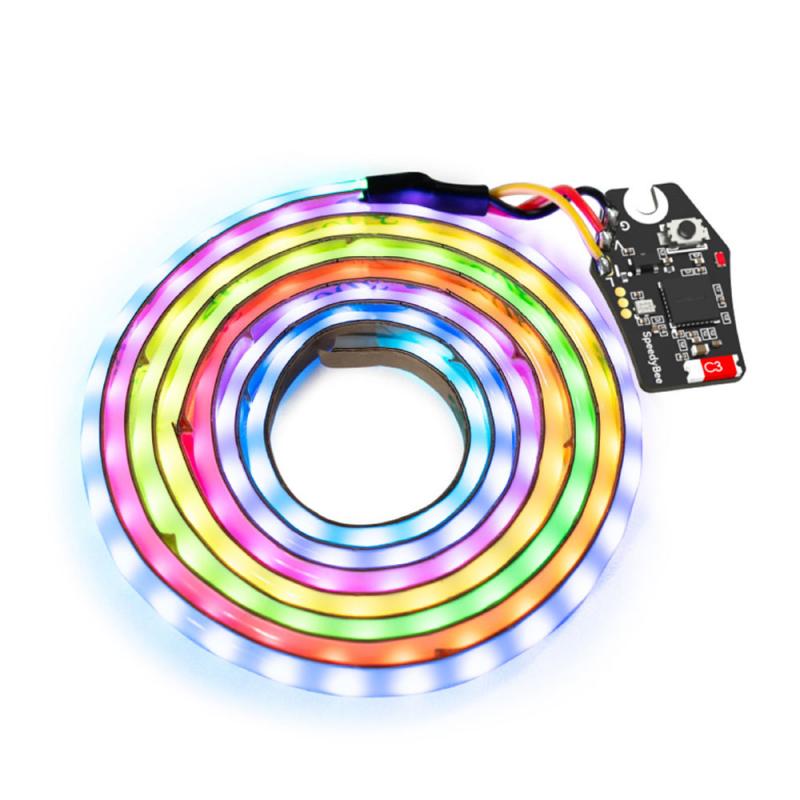

BEC Module
- Input Voltage: 7.4V-25.2V
- Output Voltage: 4.0V-4.5V
- Operating Current: Max ~2A (5V)
- Bluetooth:Supported
- WiFi: Supported, activated automatically only when updating the module’s firmware
- Communication Interface: Serial (UART)
- Baudrate: 115200
- Power Indicator: Red light stays on indicating the module is powered
- Button Function: Power on/off, switch effects
- Dimensions: 23 x 15 x 6.3 mm (excluding screws and fittings)
- Weight: 2g

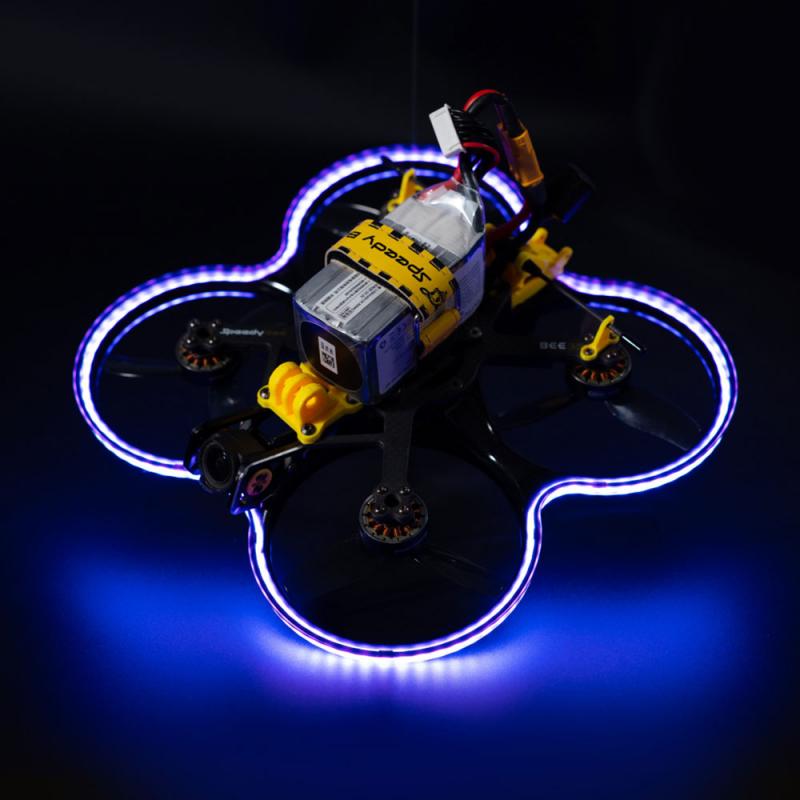

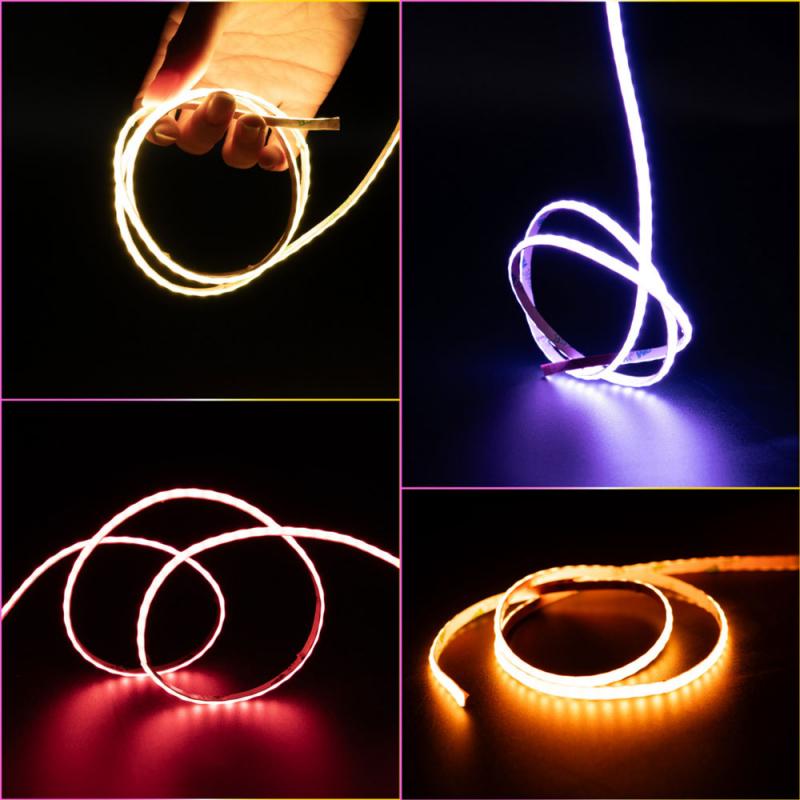

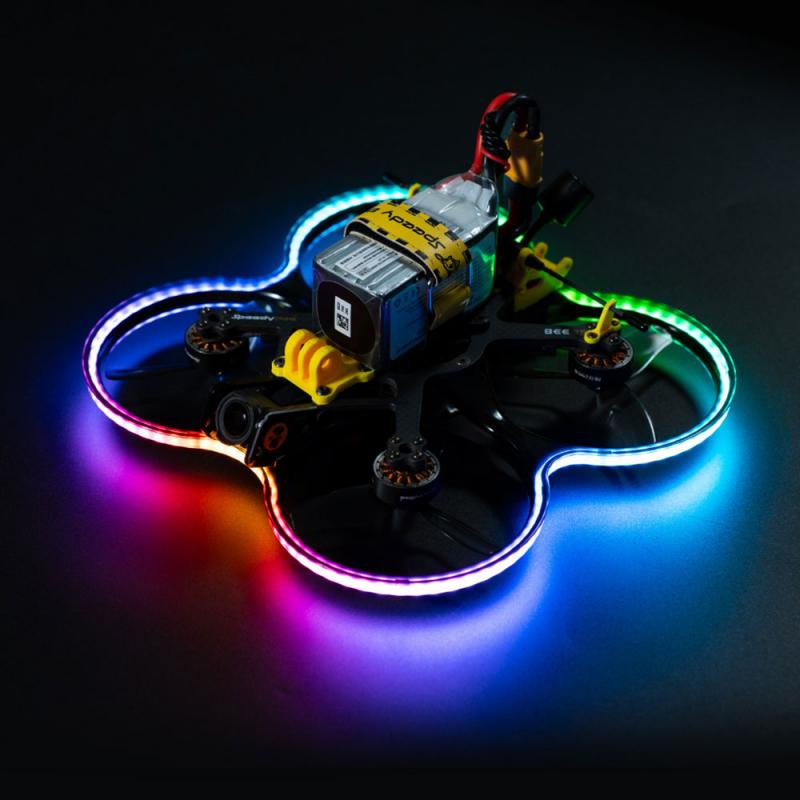

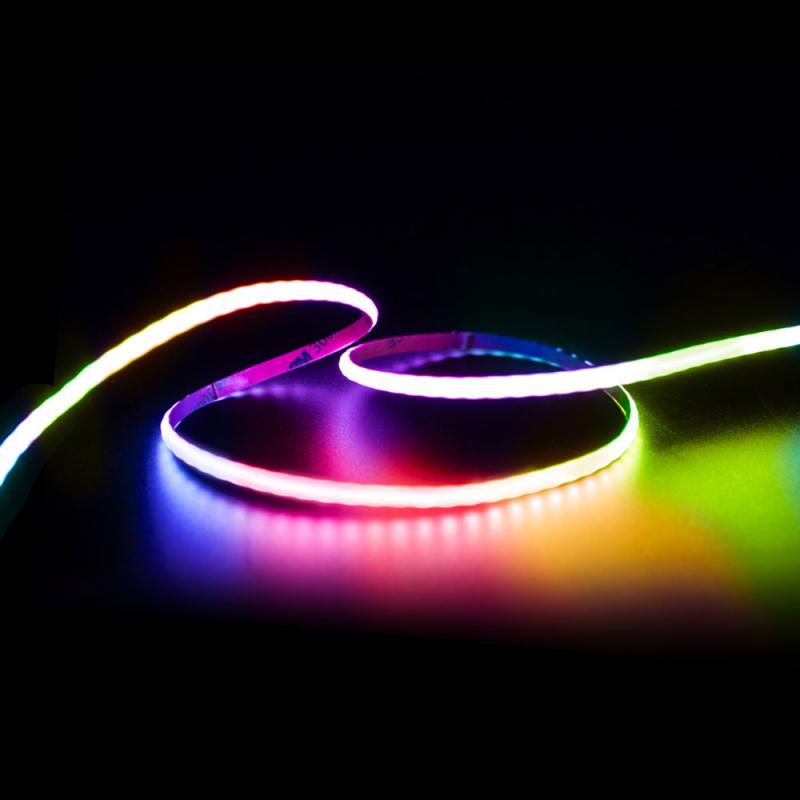

Meteor LED
- Length Suitable for Model: SpeedyBee BEE35
- Number of LEDs: 126
- Adhesive Backing: Yes
- Input Voltage: 4.0V-4.5V
- Operating Current: Max ~1.7A (5V)
- Dimensions: 785 x 5 x 2 mm
- Weight: 10.5g
