Beschreibung

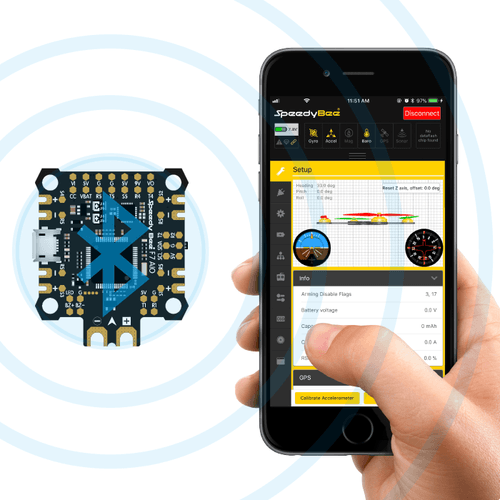

The SpeedyBee F7 flight controller allows you to make changes to your quad straight from your phone via bluetooth. An extremely handy feature as it saves you from lugging around your laptop when out in the field.
FC SPEC
- MCU: STM32F722
- IMU: MPU6000
- USB: Type-C
- Baro: BMP280 (I2C)
- OSD: BetaFlight OSD w/ AT7456E chip
- BLE: Support, used for Flight Controller configuration
- WiFi: Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
- DJI Air Unit slot: A full DJI Air Unit JST slot onboard
- BlackBox: 16MB onboard dataflash
- Current Sensor: 1 : 10 (Scale 168)
- BetaFlight Camera Control Pad: Yes
- Power input: 3S – 6S Lipo
- 5V power output: 7 * 5V output, 6 pads and a BZ+ pad used for Buzzer, the maximum load current is 2.5A. 9V * 1, the maximum load current is 2.5A.
- 9V power output: 2 * 9V output, 1 pads and another one used for DJI slot
- 4.5V power output: 1 * 4.5V output pad
- 3.3V power output: 1 * 3.3V output pad, the maximum load current is 500mA.
- ESC signal: M1 – M4
- UART: Full UART * 5(UART1, UART2, UART3, UART5, UART6)
- ESC Telemetry UART: UART4 RX
- I2C: Used for external Magnetometer, Sonar, etc.
- LED pin: Used for WS2812 LED
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer
- Boot button: Used to easy enter DFU mode
- RSSI input: RSSI input solder pad
- SmartPort: Use any TX pad of UART for the SmartPort feature.
- Support Flight Controller Firmware: BetaFlight(Default), EMUFlight
- Target name: SPEEDYBEEF7V2
- Mounting: 30.5 x 30.5mm, 4mm hole size
- Dimension: 41 x 38 x 6.9mm
- Weight: 9g
ESC SPEC
- Firmware: BLHeli32 SpeedyBee 4in1
- MCU: STM32F051
- Continuous Current: 45A * 4
- Burst Current: 55A(10S)
- ESC Protocol: DSHOT300/600/1200
- Power input: 3S – 6S LiPo
- Power output: VBAT
- Current Sensor: Support (Scale 168)
- ESC Telemetry: Support
- Mounting: 30.5 x 30.5mm, 4mm hole size
- Dimension: 41 * 45 * 6.5mm
- Weight: 12.5g
INCLUDES
- 1x SpeedyBee F7 V2 FC
- 1x SpeedyBee 45A ESC
- 1x 50V 470uF Capacitor
- 1x XT60 Cable
- 1x JST 8pin 30mm
- 1x JST 8pin 15mm
- 1x DJI 6pin 80mm
- 5x M3*30 screws
- 5x Nylon Nuts
- 5x Grommets M3*8mm
- 5x Grommets M3*6.6mm
