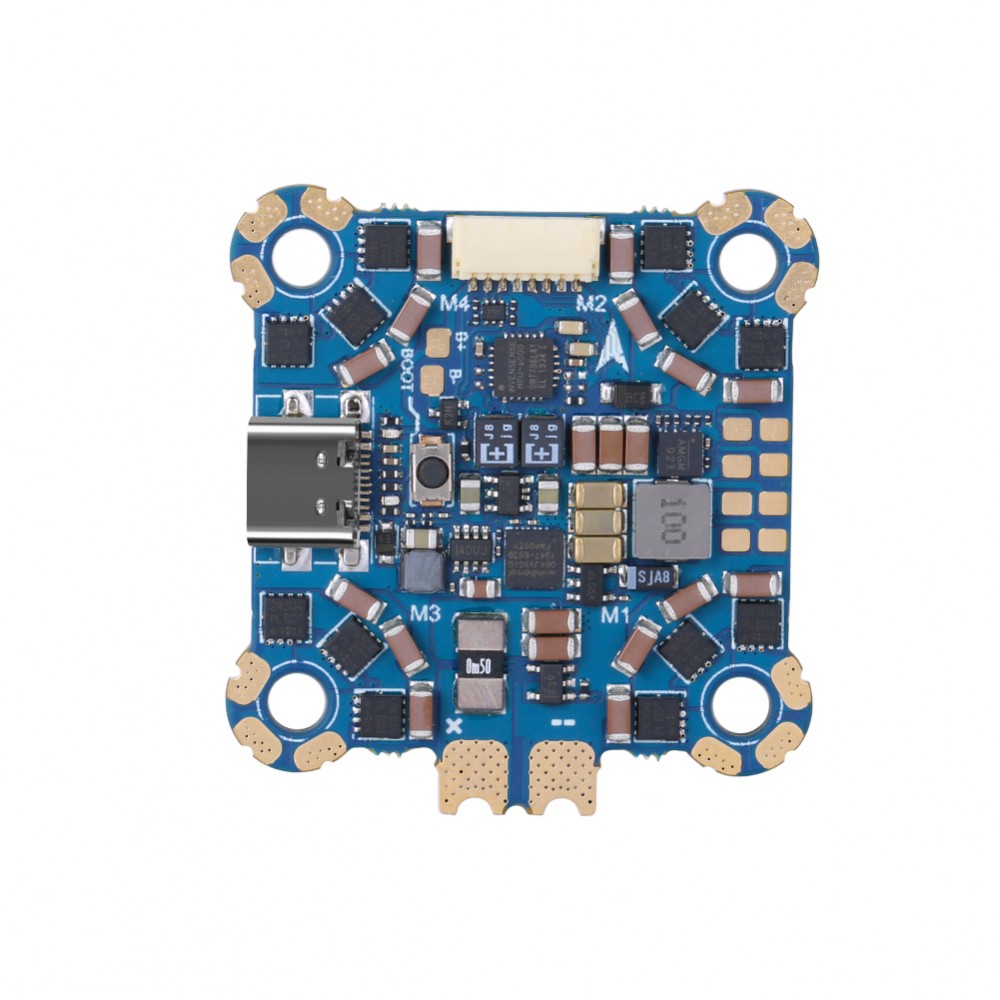

SucceX-A F4 40A AIO Board (MPU6000)

The SucceX-A F4 AIO(F4+40A) NEXT-GEN flight controller you need for your build. This FC is ready for anything with 5 uarts,4 motor outputs, 8Mb blackbox and a powerful F4 processor to run it all. Designed to work seamlessly with DJI’s new HD FPV system. To make things even simpler, the DJI Air unit can just be plugged into the AIO FC with the included wire harness. In addition, we added the popular and reliable USB Type-C instead of Micro USB and therefore the same standard than your DJI module.

Attention: This AIO-Board was specifically designed to run with a DJI Air Unit and takes advantage of DJI‘s latest Betaflight OSD pass-through! Because of space limitations we needed to take compromises and removed analog OSD support for this board! If you need analog OSD functionality, please check our latest releases.

Top Features:

• DJI Plug-and-Play – No need to solder tiny wires!

• Gyro Fusion – Zero delay Twin-Gyro filtering!

• Dual BEC 5V and 10V

FC // SucceX-A F4 AIO

• MCU: 168MHz STM32F405
• Gyro：MPU6000
• Blackbox：8MB
• OSD Chip: NO (Analog OSD not available)
• OSD Betaflight: YES (Digital DJI Air Unit pass-through)
• BEC: 5V 2.5A  (3A MAX) / 10V 2.5A (3A MAX)
• Voltage sensor scale: 110
• Current sensor scale: 100
• Inverter for SBUS input (UART2-RX)
• Beeper pad : Yes
• RSSI input pad: No
• UARTs：5
• Motor outputs: 4
• 8 pin for DJI air unit port (10V，GND，T1，R1，GND，R2I，T2，5V)
• BLHeli32 Telemetry：RX4
• Input voltage：recommended 2-6S
• Firmware: IFLIGHT_F405_AIO
• Mounting pattern: 30.5*30.5mm φ4mm with Grommets φ3mm
• Dimensions:   40.5*43mm
• Weight: 11.4g
• USB type-C

ESC // SucceX 40A 2-6S

Top Features:

– 6 layers double-sided PCB board

– 2oz 1.6mm thick power board

– 32bit STM32F051 MCU, 48M maximum clock speed

– TDK MLCC Low ESR ceramic capacitors

– Top grade TPN2R304PL MOSFET

Specification:

• MCU: STM32F051
• Up tp 48M PWM frequency
• Capacitance: 484uF
• Current Sensor: Yes
• Input: 2-6S LIPO
• Constant: 40A / Burst: 50A
• BlHeli32 telemetry: Yes
• BEC: 5V/500MA

• Supports up to Dshot1200, Proshot, Oneshot, Multishot
• Target: iFlight-BL32-4IN1
• Mounting pattern: 30.5*30.5mm/Φ4mm
• Dimensions: 43*39mm (including the power pads)

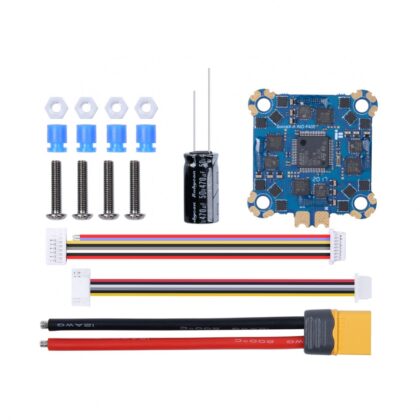

Package Includes：

– SucceX-A F4 AIO × 1

– Capacitor 470uF/50V × 1

– XT60 12AWG cable

– Wire harness (plug&play) for DJI Air Unit × 1

– M4 to M3 silicon grommets × 4

SucceX-A F4 40A AIO Board(MPU6000) Wiring diagram
