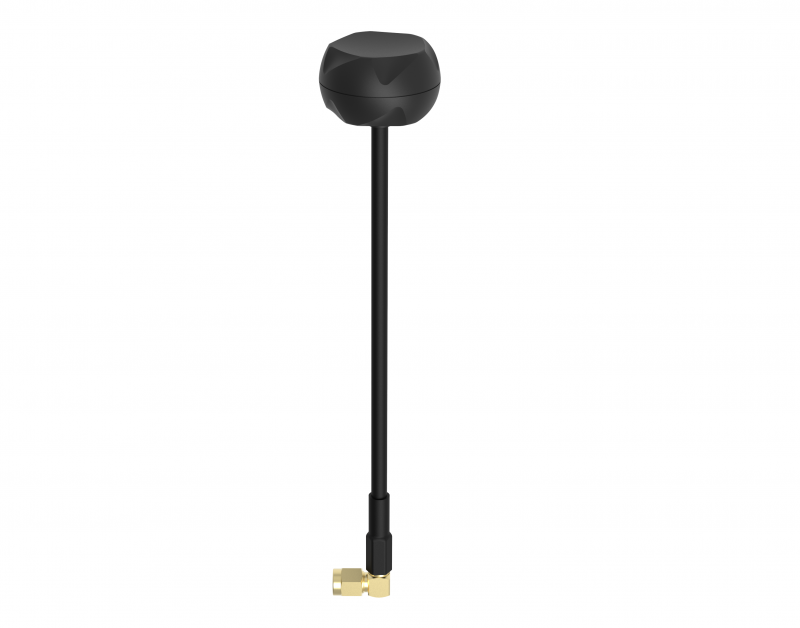

The TBS Airscrew is a licensed interpretation of the VAS Airscrew and provides extremely wideband performance across the entire 5GHz band. Designed by IBCrazy and manufactured by TBS, the five multi-phase elements create a circular reception pattern that will reject cross-polarized signals, while tolerating an extremely wide frequency range.
With the long antenna connector, it is the ideal antenna for transmitting over large distances or for mounting the antennas on a TBS Fusion for great omni-directional reception.
The antenna comes in 3 connector flavors: MMCX, SMA 90º and SMA.
Features:
- Manufactured and tested to highest standards
- Extremely wide band reception
- Lightweight design
- Ultrasonic welded plastic case for great crash-protection
- Double-jacket semi-rigid cable for heavy impact resistance
Technical specifications:
| Frequency range | 4900-6100MHz |
| Polarization | RHCP |
| Gain | 1.3dbic |
| Axial Ratio | 0.95 |
| Weight | 20g |
| Height | 130mm |
| Connector | SMA 90º |
Package contents:
- 1x TBS Airscrew SMA Antenna
