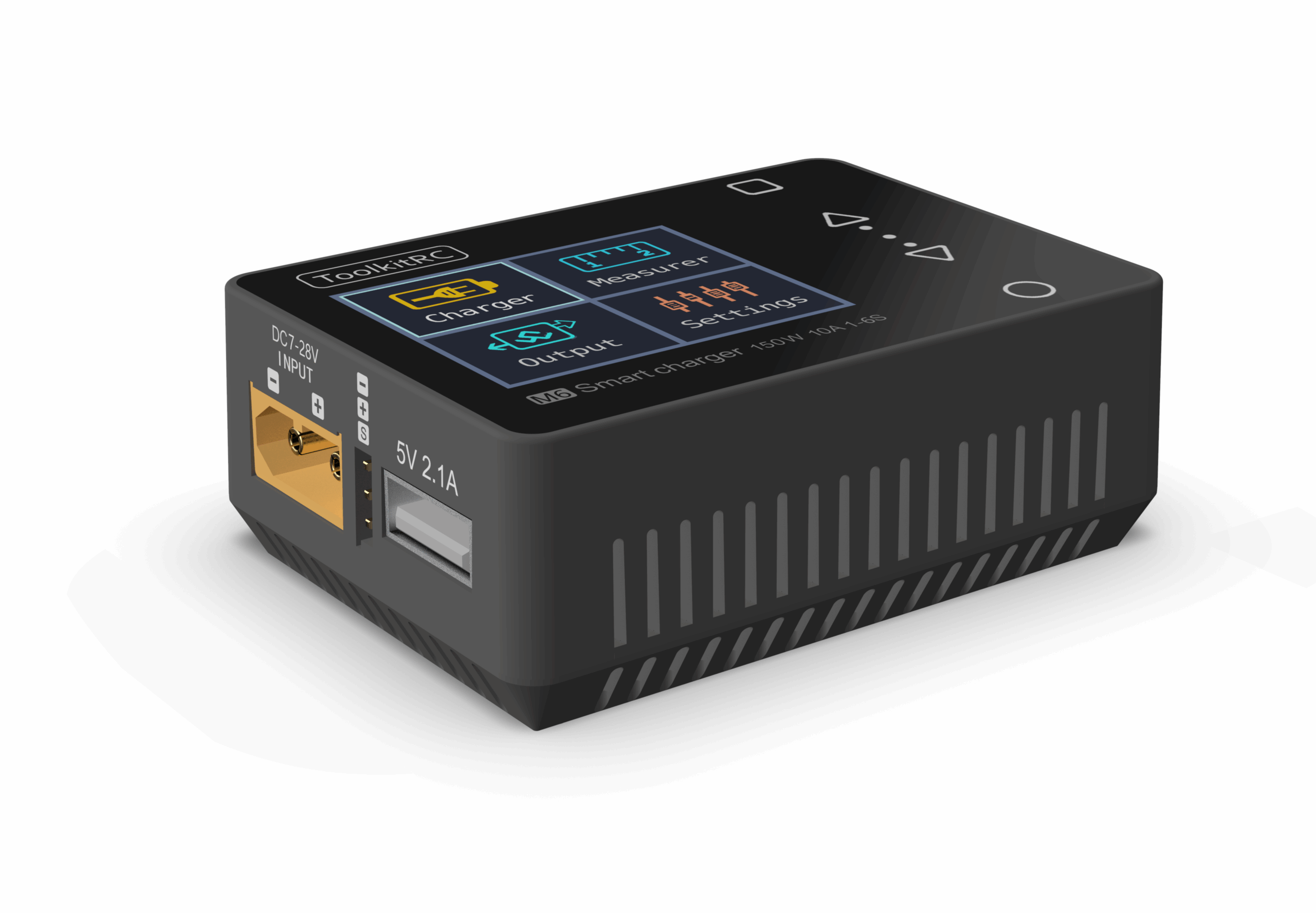

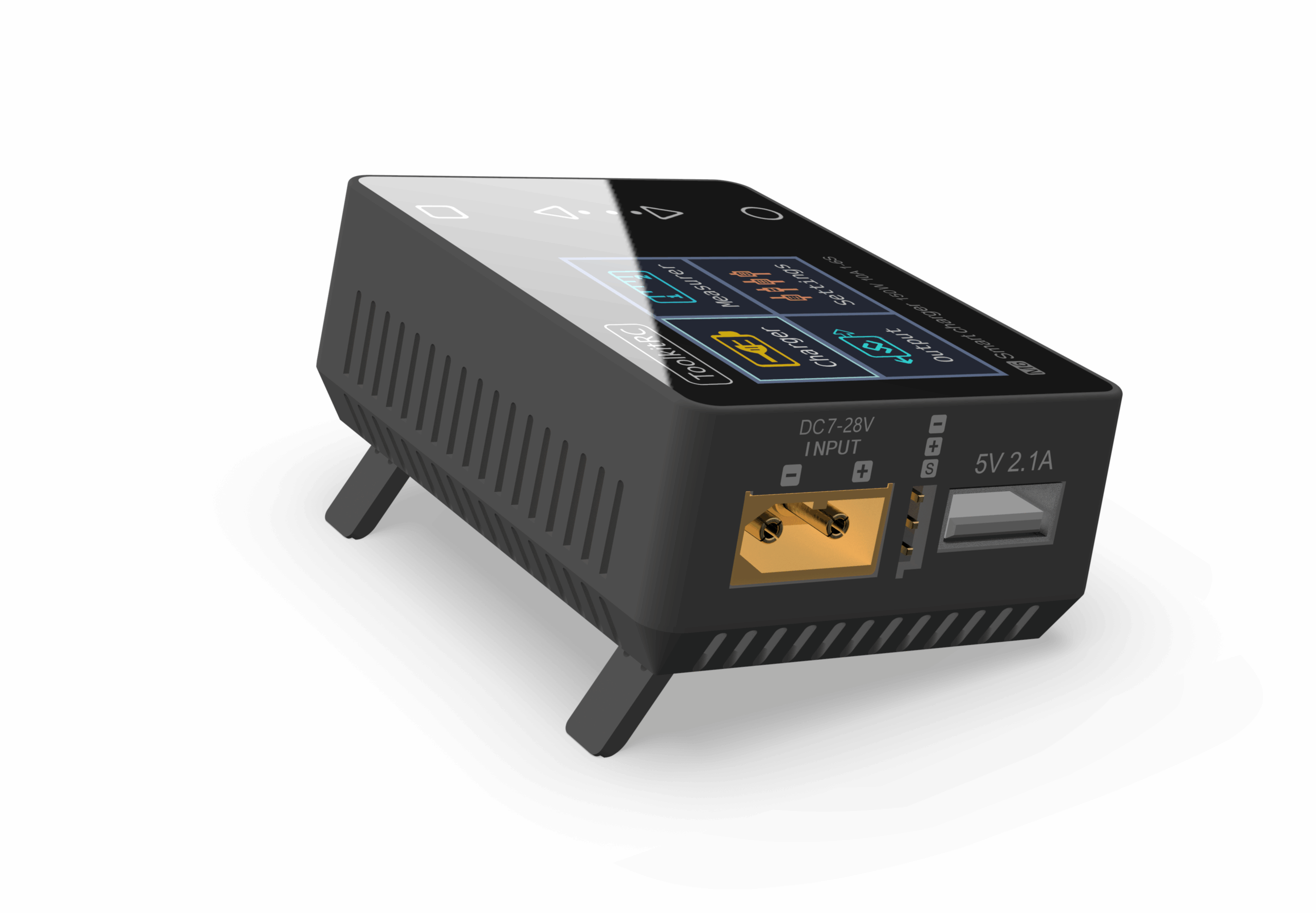

ToolkitRC – M6 150w 10A 1-6s Color Screen Multi-function Micro Pocket charger and Diagnostics tool kit
The M6 is the worlds smallest 150w color screen charger! With a 150w and 10A Charger at its heart the M6 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control.
Features
Battery Charger
Cell Checker
Servo Tester
PWM,PPM.SBUS Input/output & Receiver tester
Viable AMP/volt DC Power supply (Required external DC input)
Functions
● Lithium battery cut-off voltage can be set (TVC function)
● Measure battery voltage, internal resistance, balance
● Measure PWM / PPM / xBUS signal values, Accuracy 1ms
● Output PWM / PPM / xBUS standard signal, Accuracy 1ms
● Customizable 1-28V constant voltage, 1-10A constant current
● Charge the drone battery, activate and charge.
● Multi-language optional
● USB 2.1A@5.0V Output，for Mobile devices
● Udisk firmware upgrade (Slave device)
Specs
Input voltage: 7.0-28V @MAX 12A
Type of battery: Lipo LiHV LiFe Lion @1-6S
NiMh @1-16S Pb @1-10S
Charge power: 150W @MAX 10A
Discharge power: 150W @MAX 10A Recycle mode
8W @ 2A Normal mode
Balance Accuracy: < 0.005V (New in M6 v2)
USB: 2.1A @5.0V or Upgrade
Dimensions: 68*49*26 mm
Weight: 80g
LCD: 1.8inch TFT RGB, 160*128 Pixel
Measurement
PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
IR: 10-99mR @1-6S
Output
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @50Hz
SBUS: 880-2200us*16CH @74Hz
Power: 1-10A @1-28V Mode:CC+CV
Packing Informations:
Weight：140g
Size：80*80*35mm
