Beschreibung

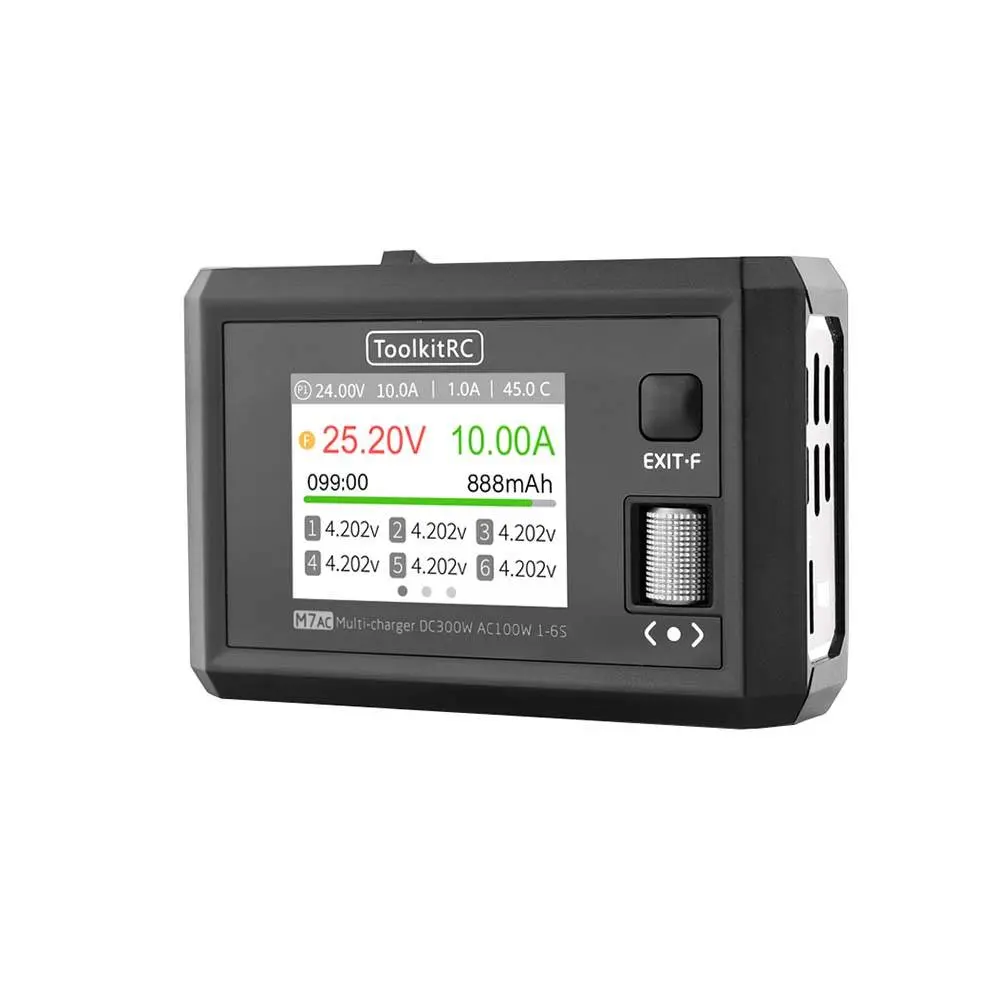

The ToolkitRC M7AC Multi-Function AC Smart Charger features Dual AC/DC Input, XT30/XT60 Output, and supports 2-6S. The Toolkit M7 isn’t just a charger, but a versatile tool kit too. It can be used as a power supply, multimeter, signal source, drone charger, and signal tester!
Features

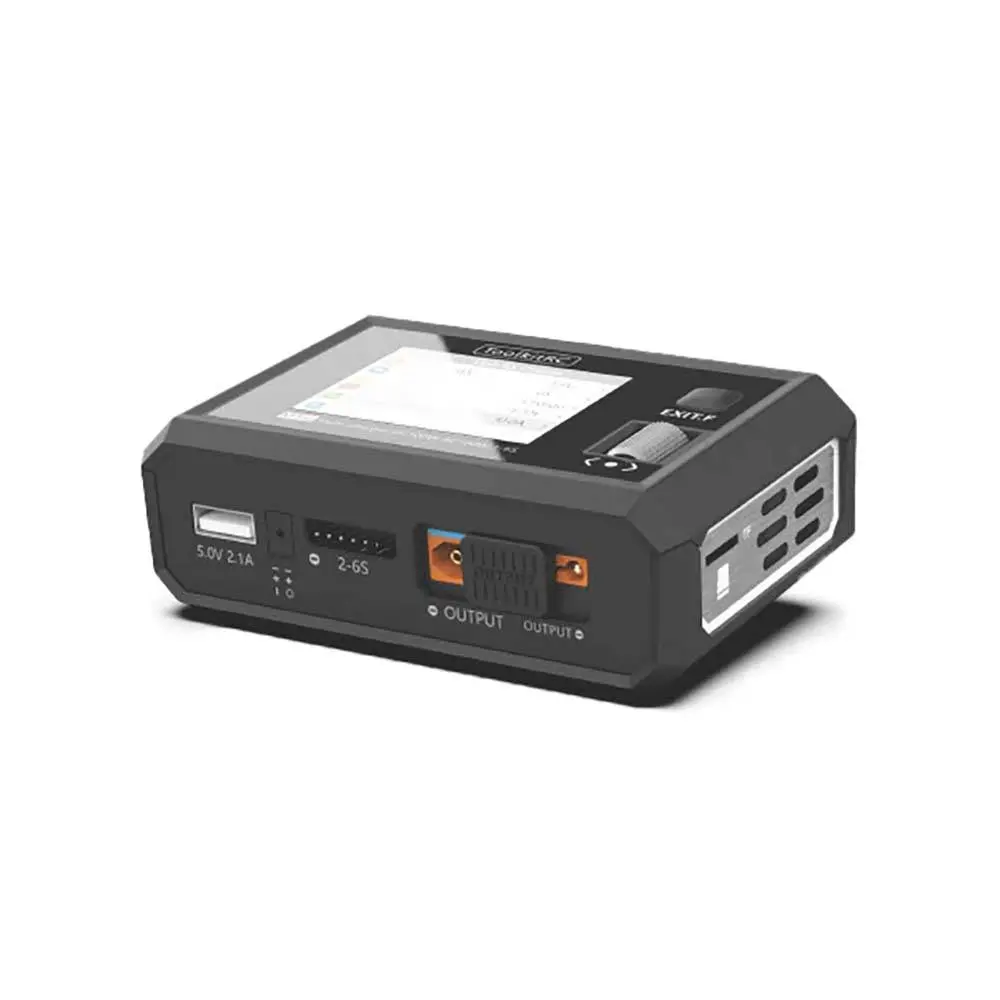

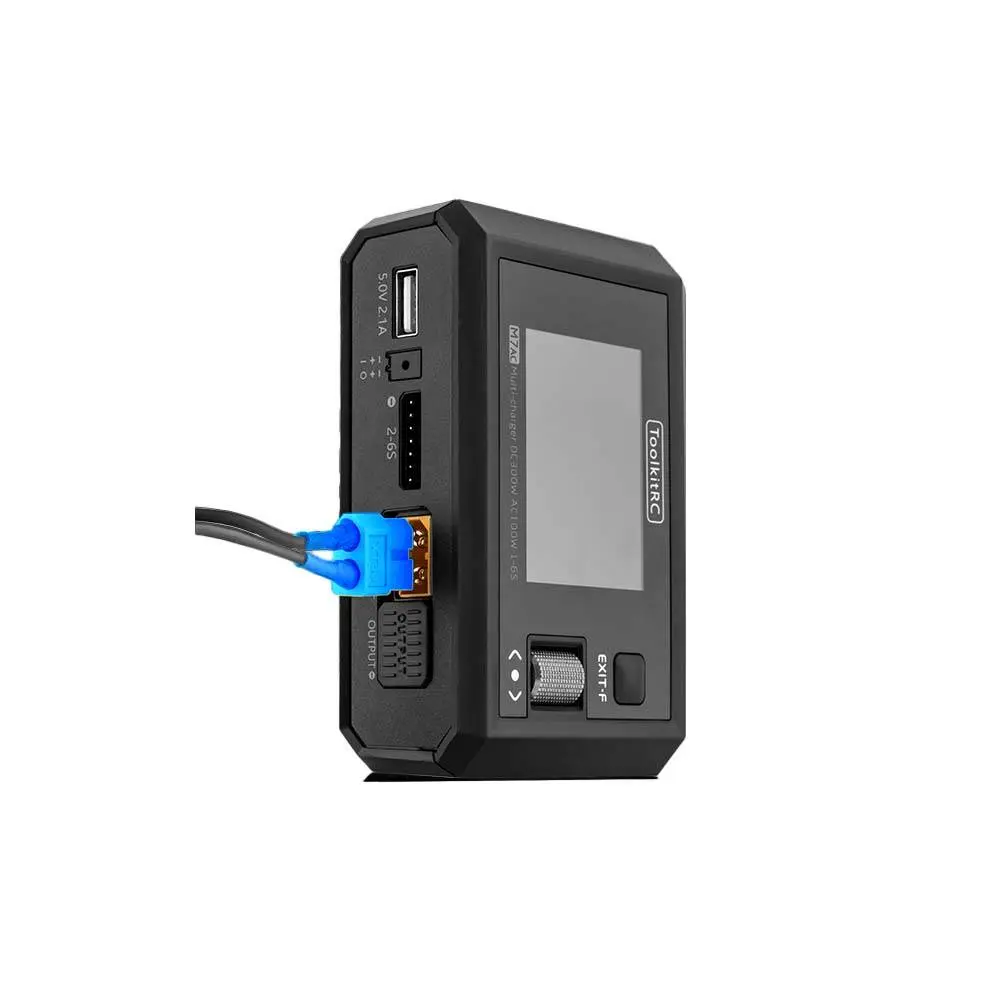

- XT30/XT60 Output
- Dual AC/DC Input
- Supports 2-6S
- Drone charger
- Power supply
- Signal source
- Signal tester
- Multimeter
Specifications
CHARGER
- Discharge Power: 300W @MAX 15A Recycle mode / 15W@3A Normal mode
- Input Voltage: AC 100-240V MAX 100W 1.5A / DC 7.0-28.0V @MAX 20A
- Battery Type: Lipo LiHV LiFe Lion LTO@1-6S / NiMh @1-16S Pb @1-10S
- Charging Power: 300W @MAX 15A
- Balance Current: 800mA @ 4.2V
- USBA: 10W@5.0V or Upgrade
GENERAL
- LCD: IPS 2.4 inch LCD 320*240 resolution
- Packing Size: 144x125x43mm
- Product Size: 112x73x38mm
- Packaging Weight: 380g
- TF Card: 128MB-16GB
- Product Weight: 245g
MEASURE
- Internal Resistance: 0.1 mR-99mR @ 1-6S
- SBUS: 880-2200us * 16CH @ 20-100Hz
- PPM: 880-2200us * 8CH @ 20-50Hz
- PWM: 880-2200us @ 20-400Hz
- Voltage: 1.0-5.0V @ 1-6S
- ESC: 300W @ 15A
OUTPUT
- Power Supply: 1.0-28.0V @0.5-15A mode: CC CV

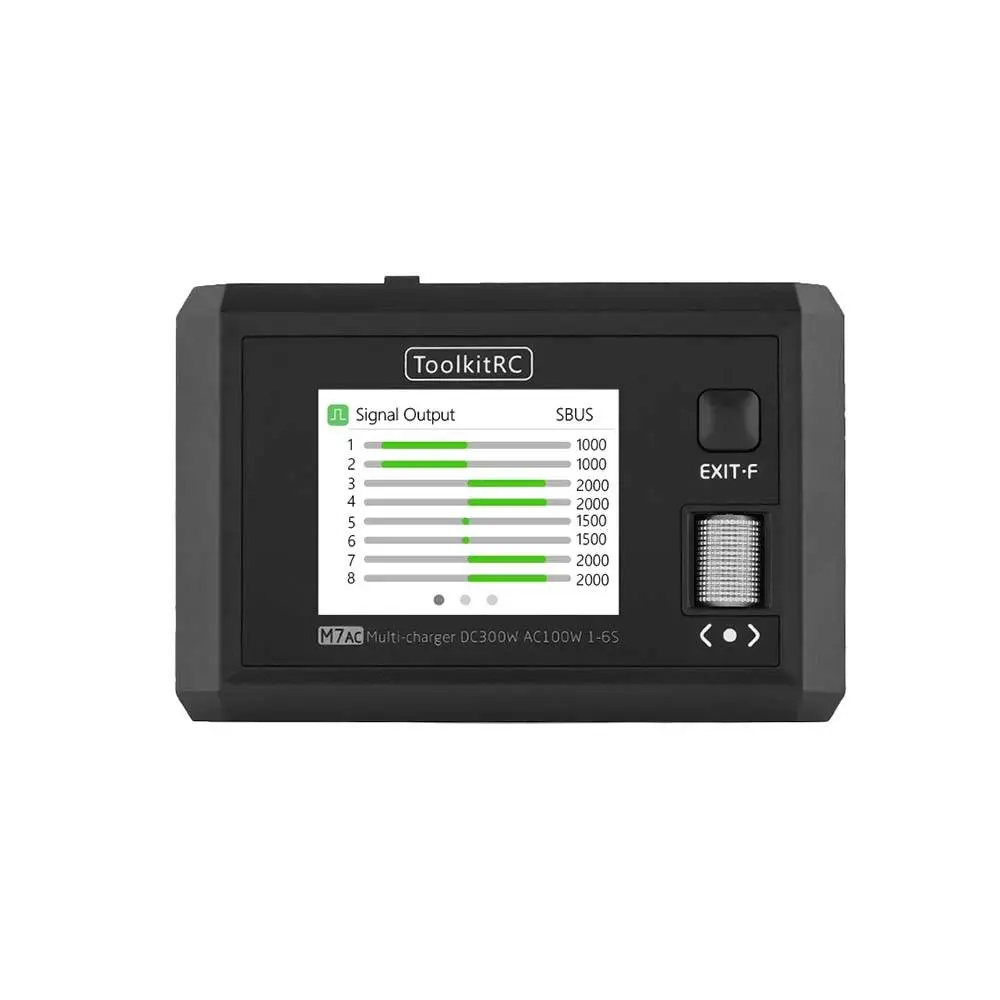

- SBUS: 880-2200us * 16CH @ 20-100Hz
- PPM: 880-2200us * 8CH @ 20-50Hz
- PWM: 500-2500us @ 20-1000Hz
- Overcurrent Response: <5ms
Includes
- 1x ToolkitRC M7 100W AC/300W DC 15A 2-6S Multi-Function AC Smart Balance Charger
