Beschreibung

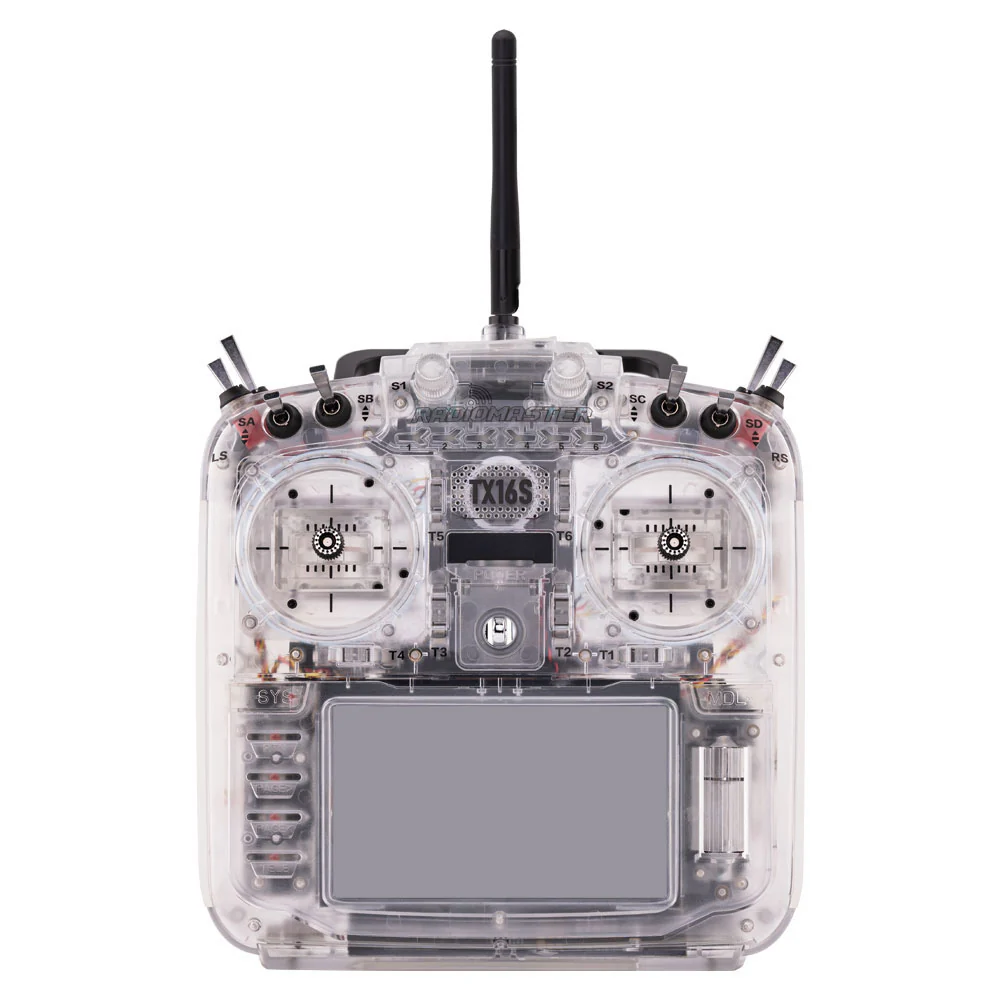

Introducing the TX16S MKII Radio Transparent edition, inspired by MCK, where technology meets stunning aesthetics. Immerse yourself in the crystal-clear case design and innovative RGB lighting system, offering four captivating RGB modes and a choice of five vibrant colors. This allows you to tailor your radio to your mood or style. Unleash your creative and unique personality with the TX16S MKII Radio Transparent edition!
Launch Video
Features
- Clear Crystal Case and surrounding RGB lights design, experience the Heartbeat of Technology
- CNC metal folding handle, easy to carry and storage
- Updated sticky360 gimbal stick ends to bring you a comfortable, zero-slip experience
- Improved internal circuitry and optimized power supply
- New charge circuitry with integrated reverse-polarity protection
- Optimized charge IC now allows up to 2.2A internal USB-C charge current
- Rear-mounted audio jack provided headphone output
- V4.0 Gimbal improved centering and temperature stability
- Optional high/low rear grips are included for improved ergonomics
- Improved S1/S2 knobs with clear centre-detents
- Improved LS/RS Sliders with smoother feel and better centre-detents
- Redesigned battery cover for improved battery access
- Retooled body shell with improved fit and finish
- Trainer socket changed to standard TRS 3.5mm socket
- Rear DIY Socket added for personalized mods
- Improved internal plastics for better longevity
- Built-in ExpressLRS Backpack
Specification
- Item: TX16S MKII Radio Transparent Version
- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz
- Transmitter module: Internal ELRS (SX1280)
- SD card: Newly updated 512MB card as standard
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Radio firmware: EdgeTX
- Module Firmware: ExpressLRS (ELRS)
- Channels: Up to 16 channels (depending on the receiver)
- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: V4.0 Hall sensor
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
FCC Version and EU LBT Version are Available
Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.
Standard FCC Version
- ELRS (FCC) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependant)
EU LBT Version
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
More Options
- TX16S Mark II with V4.0 Hall Gimbal or AG01 Hall Gimbal
- TX16S Mark II Max V4.0 Hall Gimbal or AG01 Hall Gimbal
- TX16S Mark II Max Joshua Bardwell Edition
- TX16S Mark II Max Customized Version
Accessories
- AG01 Full CNC Hall Gimbal
- Replacement HALL V4 Gimbal
- 21700 6200mAh Battery
- TX16S Radio Carry Case Large
- LED Gimbal Light Mod Set for TX16S & Boxer
- TX16S Replacement Switch Assemblies (SA+SB/SC+SD/SF+SE/SH+SG)

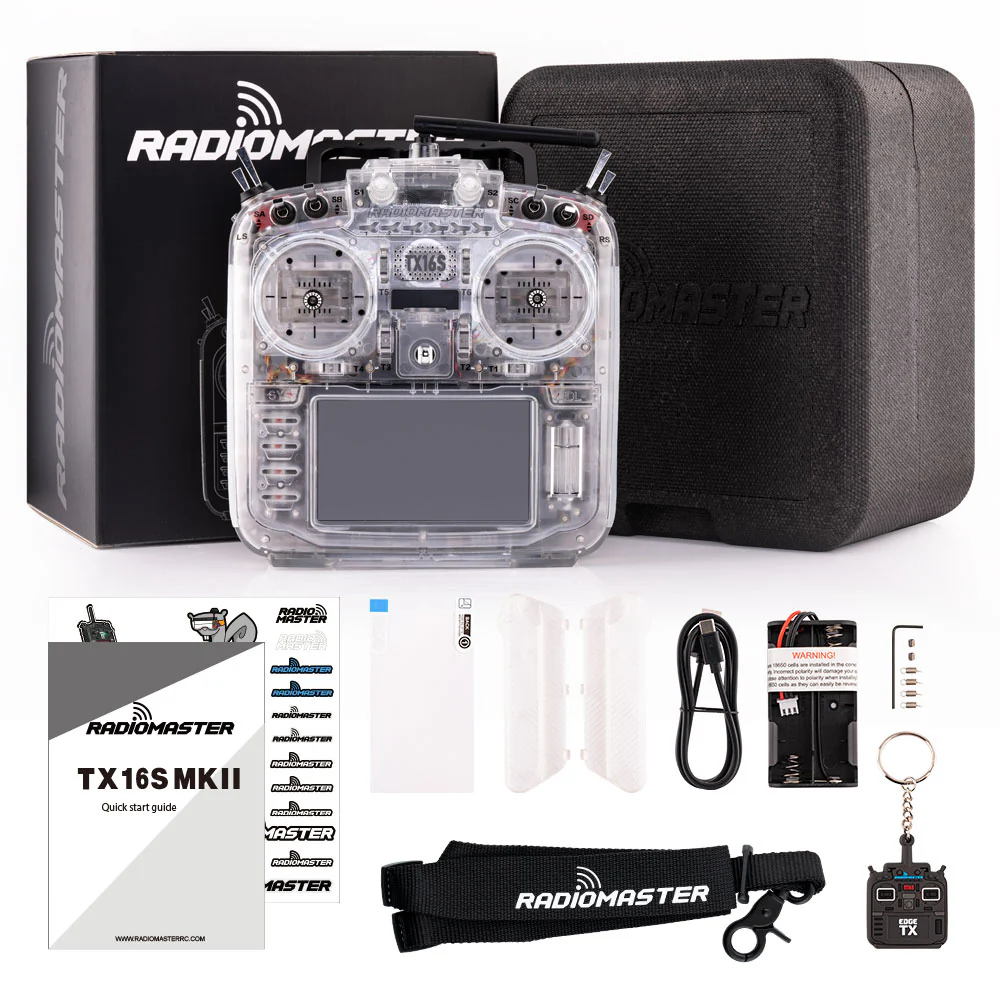

Package Includes
- 1 * TX16S MKII Radio Transparent Version
- 1 * 18650 Tray
- 1 * USB-C Cable
- 1 * Screen Protector
- 4 * Low Tension Springs
- 1 * 1.5mm Allen Key
- 1 pair of flat grips
- 1 pair of raised grips (installed on radio by default)
- 1 * TX16S Key Chain
- 1 * RadioMaster Neck Strap
- 1 * Stickers
- 1 * Manual
