UPDATE TO BF 4.1.3. BUGS WERE FOUND WITH 4.1 WHEN USE WITH SOME ESC.

FC SPECIFICATION

• Up to 8S input (max 36V)
• 5V BEC up to 3A continuous
• STM32F722 MCU
• MPU6000 Gyro/ACC for smooth performace
• 128MB OnBoard flash
• OSD chip Onboard
• 6 available UARTS
• VTX switch to control the ON/OFF of the VTX directly from your transmitter
• LC Filter for 5V VTX
• USB Type C connector
• Onboard RGB LED distribution for clean wiring to the LED on the arm of the quad.
• Onboard RBG LED
• Notch desing on sides and in the front of the – FC for better fitting on the frame

ESC SPECIFICATION

• input: 3S-6S
• High quality Toshiba Mosfet: 60A continuous current draw /90A peak current
• Firmware: BlHeli32 ZEEZ60A
• Aluminum HeatSink to cooldown the Mosfet.
• Including 35V 470uF Low ESR Capacitor (and spare capacitor)
• Easy wiring with connector included in package with Zeez F7 Flight Controller
• Bidirectional DSHOT capable for RMP filtering
• Dimension: 37,50mm * 43mm

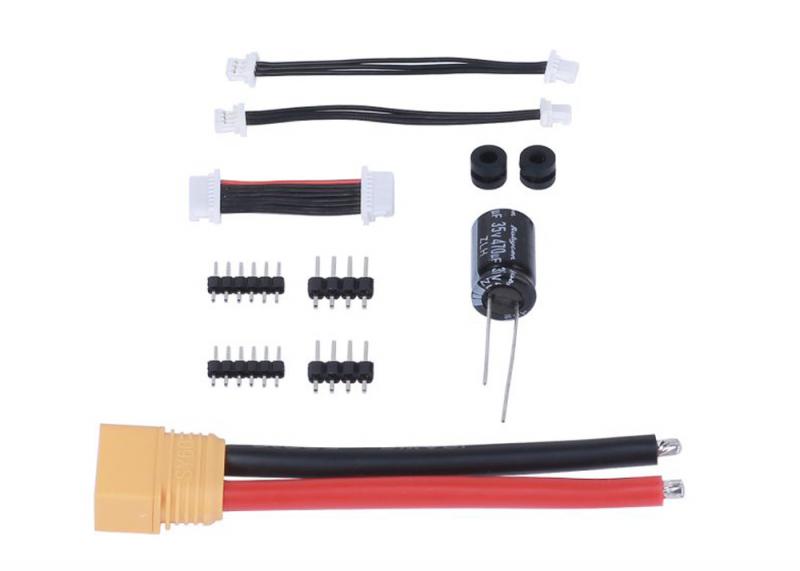

RACING COMBO INCLUDES

• (1X) Zeez F7 Flight Controller
• (1X) Zeez 60A 4in1 ESC
• (1X) Zeez Led System (4 led Strip)
• (8X) Aluminium Stanoff
• (4X) Aluminium Nut
• (2X) ESC to Flight Controller 8 Pin JST SH 1.00mm connector
• (6X) Led Strip to Flight Controller 3 pin JST SH 1.00mm connector
• (2x) 470uF 35V Low ESR Capacitor
• (1X) XT60 with 12AWG Silicon Cable for battery connection
• (2X) 2.00mm Header Pin for VTX connection
• (2X) 2.54mm Header Pin for Receiver connection
• (2X) Spare M3 rubber anti vibration for Flight Controller or ESC12
